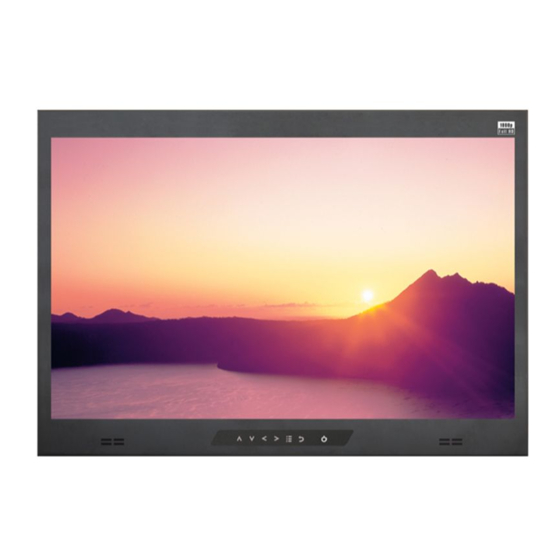

- Page 1 KVM switch and rackmount screen technology User Manual 21.5” High Brightness FHD LCD 1000 cd/m² RP-HF821 8U Rackmount Display Panel Options : - SDI / MCS - AV / HDMI / Audio - Touchscreen / DC power - MIL-type or lockable connector...
- Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. UM-CV-751-RP-HF821-Q317V2...
-
Page 3: Table Of Contents
Contents < Part. 1 > RP-HF821 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 4 < Part. 2 > Specifications / OSD / Remote Controller Product Specifications P.5 - 6 On-screen Display Operation ( OSD ) P.7 - 8... - Page 4 Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your microfiber cloth first, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-RP-HF821-Q317V2...
-
Page 5: Part. 1 > Rp-Hf821
< Part 1 > < 1.1 > Package Content RP-HF821 RP-HF821 unit X 1 - 6ft VGA cable X 1 - Power adapter X 1 - Power cord X 1 - Fastener screw for rear bracket x 2 < 1.2 > Structure Diagram... - Page 6 (W x D x H) (W x D x H) Weight Weight 501.9 x 64 x 353 mm 585 x 124 x 557 mm 10.3 kg 12.7 kg RP-HF821 19.8 x 2.5 x 13.9" 23 x 4.9 x 21.9” 22.7 lb 27.9 lb UM-CV-751-RP-HF821-Q317V2...
- Page 7 < 1.3 > VESA mount Installation RP-HF821 M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided UM-CV-751-RP-HF821-Q317V2...
-
Page 8: Installation
Fix the RP-F821 display panel into the rear bracket with two fasteners ( Left & right side ). Fastener screw ■ Lock the RP-F821 display panel by the latch ( on the bottom left & right side ). latch UM-CV-751-RP-HF821-Q317V2... -
Page 9: Product Specifications
< Part 2 > < 2.1 > Product Specifications RP-HF821 Panel Size ( diagonal ) 21.5-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1920 x 1080 Brightness ( typ. ) 1000 Contrast Ratio ( typ. ) - Page 10 *In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card setting on display size to fix the issue. UM-CV-751-RP-HF821-Q317V2...
-
Page 11: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) RP-HF821 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control... - Page 12 PIP mode : Adjust picture in picture setting PIP position : Enter into PIP position PIP source : Enter into the Sub source and sound source System reset : Return the adjustment back to factory setting Information : Select for Help UM-CV-751-RP-HF821-Q317V2...
-
Page 13: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )
< 2.3 > How to Use Picture In Picture ( PIP ) / RP-HF821 Picture By Picture ( PBP ) < 2.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF... - Page 14 OSD Menu → MISC → PIP Source → VGA / S-Video / Composite / DVI / HDMI / SDI / YPbPr / TV The PIP / PBP is operable in the following table : S-Video Composite DVI-D HDMI YPbPr Main S-Video Composite HDMI YPbPr P.10 UM-CV-751-RP-HF821-Q317V2...
- Page 15 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
-
Page 16: Part. 3 > Options
LCD displays cascade together via CAT 5/6 cable, and daisy chain up to 1,000 meters. Designed for use with CyberView LCD displays, Austin Hughes provides a MCS input module without using additional space or power and it comes standard with a 2-year warranty. -
Page 17: Av3.0 Upgrade
< 3.3 > AV3.0 Upgrade Options : RP-HF821 - AV ( S-Video + Composite, BNC - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in & out ) Audio DVI-D Power BNC S-Video... - Page 18 Step 2. Double click the Setup.exe Step 3. Follow the installation instruction to finish the setup Step 4. After installation, run the TouchKit program & the “4 point calibration” Please do the initial calibration after the first setup P.14 UM-CV-751-RP-HF821-Q317V2...
- Page 19 < 3.5 > Options : DC Power RP-HF821 Model 125V 250V Input rating Input voltage: 24-Volt 48-Volt 110-Volt 300-Volt Input range: 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V Input current - No load 50 mA...
-
Page 20: Mil-Type Or Lockable Connector
Part no. Standard Lockable DC Power YM-Ext-461CP001 D-type 3W3 Connector ( Male ) LUSB - A111 - 00 MIL - type or Lockable connectors above can be integrated with our LCD displays. Sale service just for connectors not provided. UM-CV-751-RP-HF821-Q317V2 P.16...
