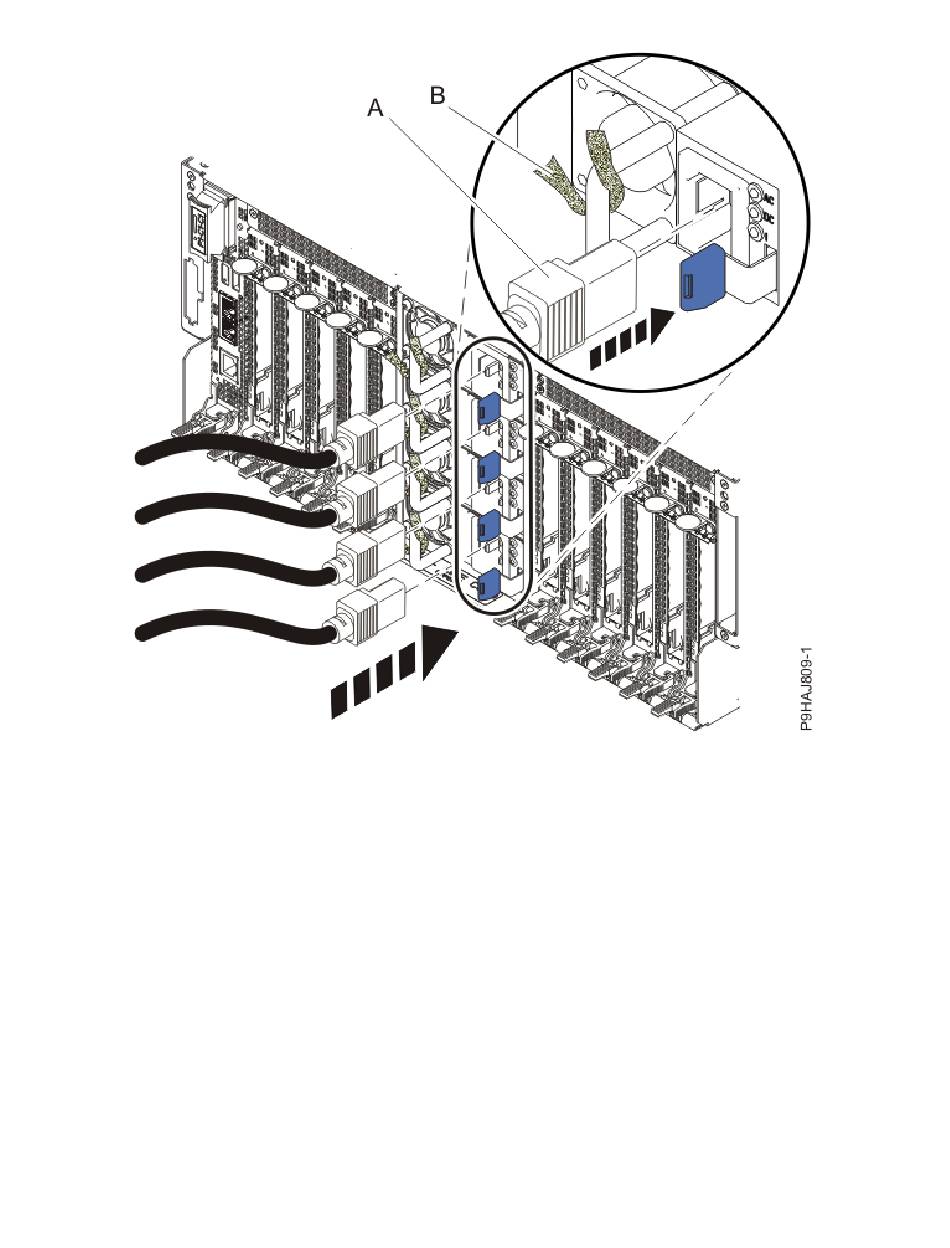

Figure 34. Connecting the power cords
4. Put the cable management bracket in the operating position. See the following figure.
a) Pull out the quarter-turn fasteners (B) and turn them to disengage them while moving the cable
management bracket (A) to its lower position.
b) Turn the quarter-turn fasteners (B) to engage and lock the bracket into position.
48 Power Systems: PCIe adapters for the 9040-MR9
