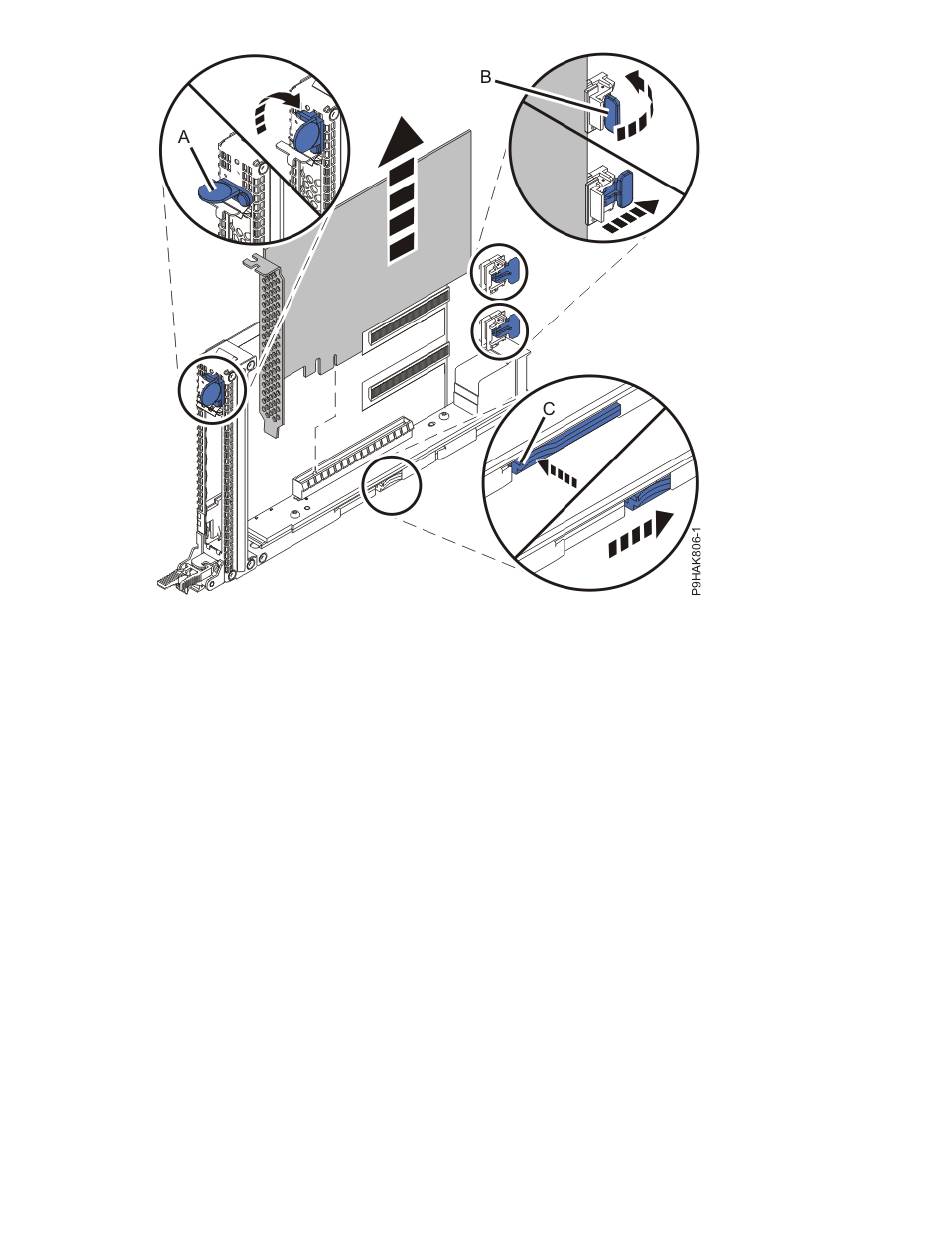

Figure 18. Removing a PCIe adapter from a cassette for the 9040-MR9 system
5. If your cassette doesn't have two adapter retainers and strips, complete the following steps to remove
the PCIe adapter from the cassette.
a) Open the tailstock clamp (A) by rotating the clamp in the direction that is shown.
b) Open the cassette by pressing and sliding the release bar (B) in the direction that is shown.
c) Remove the PCIe adapter.
Installing, removing, and replacing PCIe adapters in the 9040-MR9 system 29
