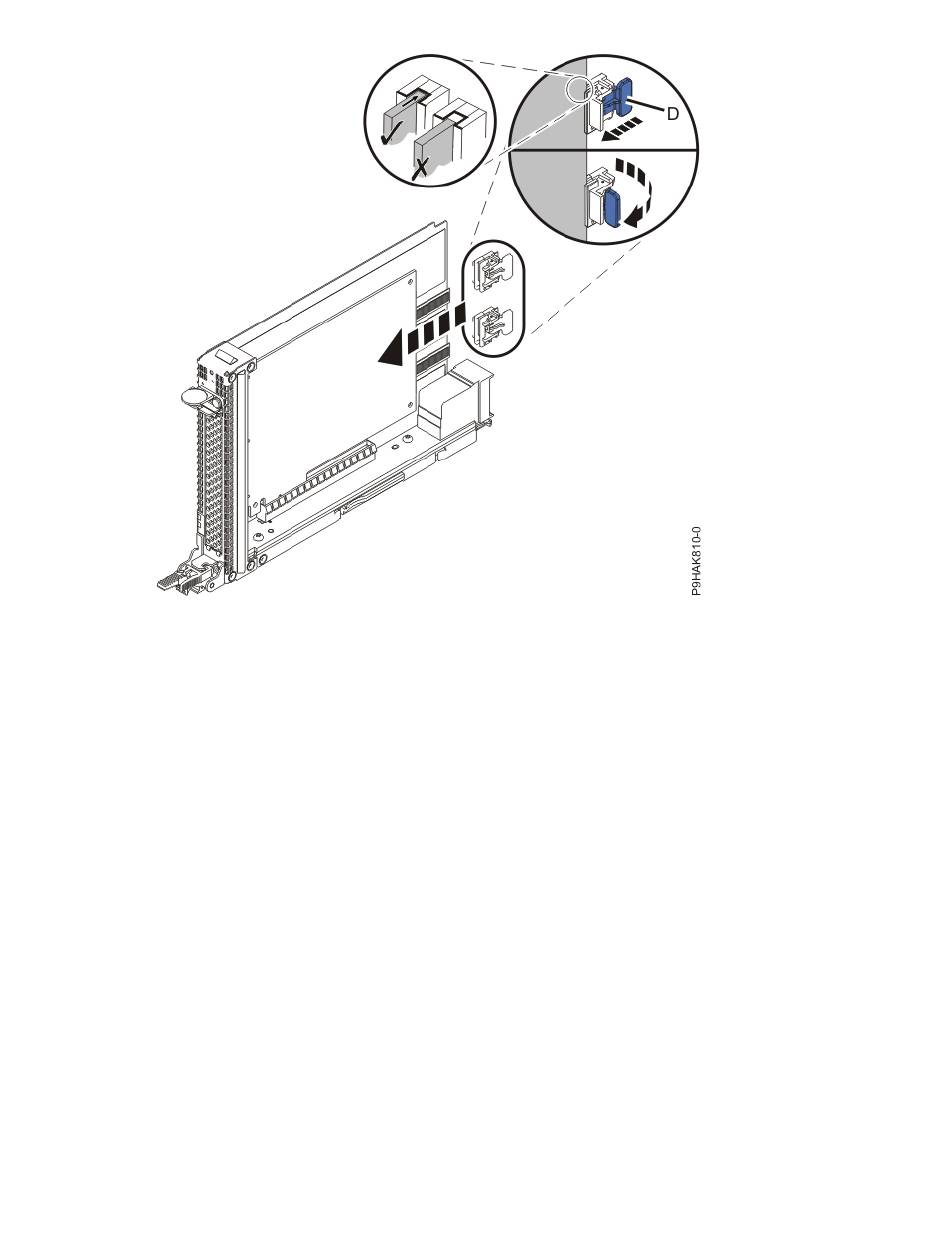

Figure 8. Securing an adapter with the adapter retainers for the 9040-MR9 system
8. If your cassette does not have the two adapter retainers and strips, complete the following steps to
install or replace a PCIe adapter into the cassette:
a) Press and slide the release bar (A) to open the cassette.
b) Insert the adapter into the cassette.
c) Press and slide the release bar (A) to close the cassette.
d) Close the tailstock clamp (B) by rotating the clamp in the direction that is shown.
Installing, removing, and replacing PCIe adapters in the 9040-MR9 system 13
