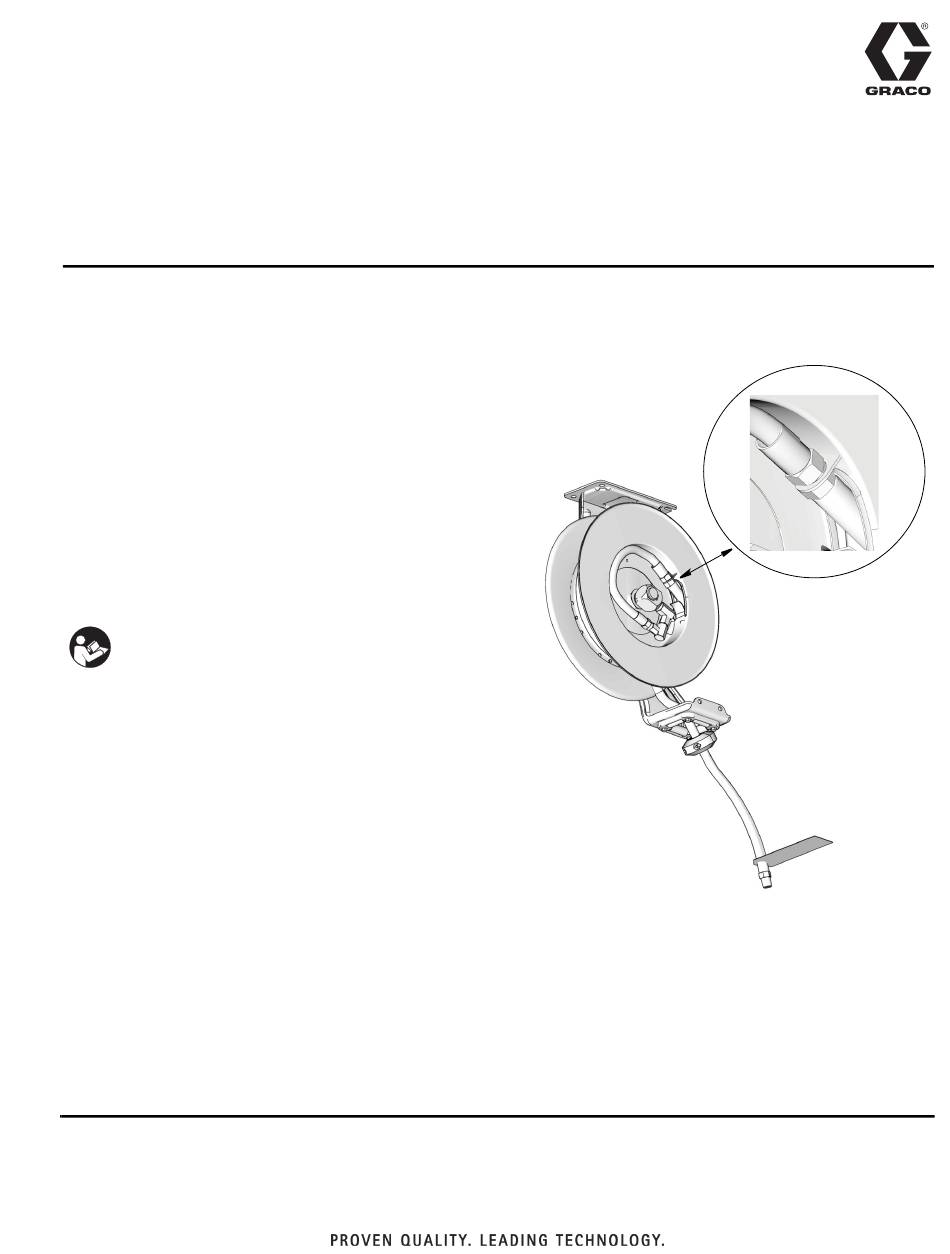

Instructions
Intermediate Hose and
Fitting Repair Kit
Repair kit for intermediate hoses and fittings. For professional use only.
Kit No.: 24N719
Used with Reels
Model
Series
HSH15
B-D
HSH55
D-F
HPH15
A-C
HPH23
C-E
HPH55
C-E
Important Safety Instructions
Read all warnings and instructions in this
manual and in SD and XD Series Hose Reel
manual include with your unit. Save all
instructions.
Part No./Description
Ref.
Part
Description
1
125305 HOSE, coupled, 15 inch, 3/8 ID
2
15Y397 FITTING, swivel, 90 degrees
Qty.
1
1
332122A
EN
Advertisement
Table of Contents
Related Manuals for Graco 24N719
Summary of Contents for Graco 24N719
- Page 1 Instructions Intermediate Hose and Fitting Repair Kit 332122A Repair kit for intermediate hoses and fittings. For professional use only. Kit No.: 24N719 Used with Reels Model Series HSH15 HSH55 HPH15 HPH23 HPH55 Important Safety Instructions Read all warnings and instructions in this manual and in SD and XD Series Hose Reel manual include with your unit.
- Page 2 Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama- tion point symbol alerts you to a general warning and the hazard symbol refers to procedure-specific risk. Refer back to these warnings. Additional, product-specific warnings may be found throughout the body of this manual where applicable.
- Page 3 Installation Installation Pressure Relief Procedure Follow the Pressure Relief Procedure whenever you see this symbol. This equipment stays pressurized until pressure is manually relieved. To help prevent serious injury from pressurized fluid, such as skin injection, splashing fluid and moving parts, follow the Pressure Relief Procedure when you stop spraying and before cleaning, checking, or servicing the equipment.
- Page 4 Installation Assembly 7. Flush system. To avoid contaminating the fluid with line-scale, chips or other installation debris, before installing meter or dispense valve to end of hose, flush the equipment with a compatible solvent such as Stod- 1. Install hose stop (D) to end of hose. If hose has a dard solvent or mineral spirits.
- Page 5 10. Clean and dry off surface of each end panel. Attach a Graco label (404) to the center of each end panel. 11. Position hose stop so hose extends far enough for all operators to reach dispensing valve.
- Page 6 With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
