INSTRUCTIONS–PARTS LIST
Parts
INSTRUCTIONS

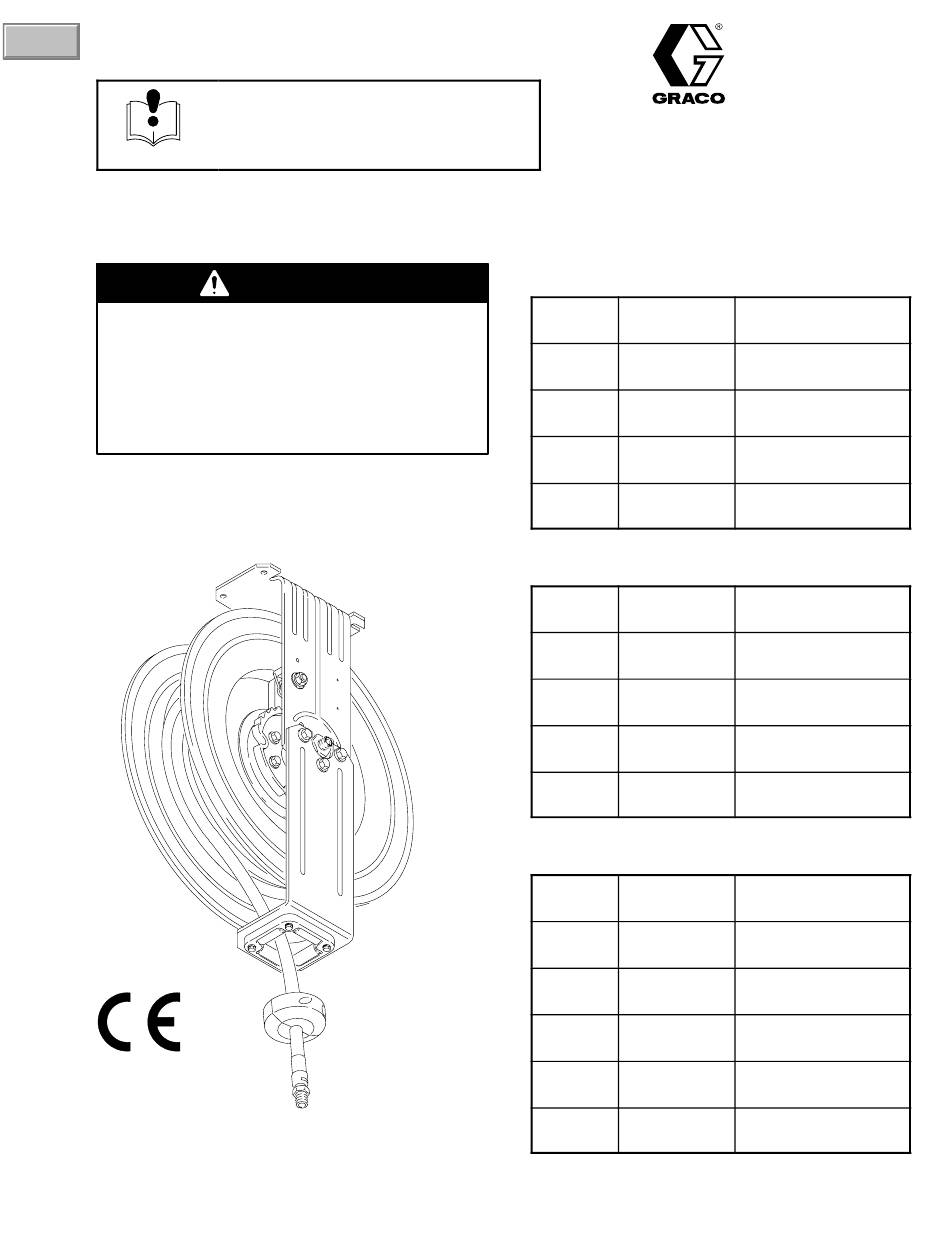

SERIES 350 HOSE REELS
These hose reels are designed to dispense lube
products, air, water, transmission fluid, or
antifreeze only. Any other use of these hose
reels can cause unsafe operating conditions and
result in component rupture, fire or explosion,
which could cause serious bodily injury, including
fluid injection.
NOTE: These hose reels are for stationary mountings
only and cannot be used with enclosures.
See page 2 for the Table of Contents.
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
WARNING
03711C
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
ECOPYRIGHT 1990, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
First choice when
quality counts.t
Low-Pressure, Standard Mount
Models
Hose Length
244986
None
238211
40 ft (12.2 m)
238213
60 ft (18.3 m)
243983
50 ft (15.2 m)
Medium-Pressure, Standard Mount
Models
Hose Length
237020
None
237021
40 ft (12.2 m)
237022
50 ft (15.2 m)
238209
40 ft (12.2 m)
High-Pressure, Standard Mount
Models
Hose Length
237030
none
237031
40 ft (12.2 m)
237032
50 ft (15.2 m)
237033
40 ft (12.2 m)
237034
50 ft (15.2 m)
308400
Rev. S
Maximum Working
Pressure
1800 psi
(12.4 MPa, 124 bar)
180 psi
(1.25 MPa, 12.5 bar)
180 psi
(1.25 MPa, 12.5 bar)
180 psi
(1.25 MPa, 12.5 bar)
Maximum Working
Pressure
1800 psi
(12.4 MPa, 124 bar)
1800 psi
(12.4 MPa, 124 bar)
1800 psi
(12.4 MPa, 124 bar)
1800 psi
(12.4 MPa, 124 bar)
Maximum Working
Pressure
8000 psi
(55.2 MPa, 552 bar)
5000 psi
(34.5 MPa, 345 bar)
5000 psi
(34.5 MPa, 345 bar)
4000 psi
(27.6 MPa, 276 bar)
4000 psi
(27.6 MPa, 276 bar)
