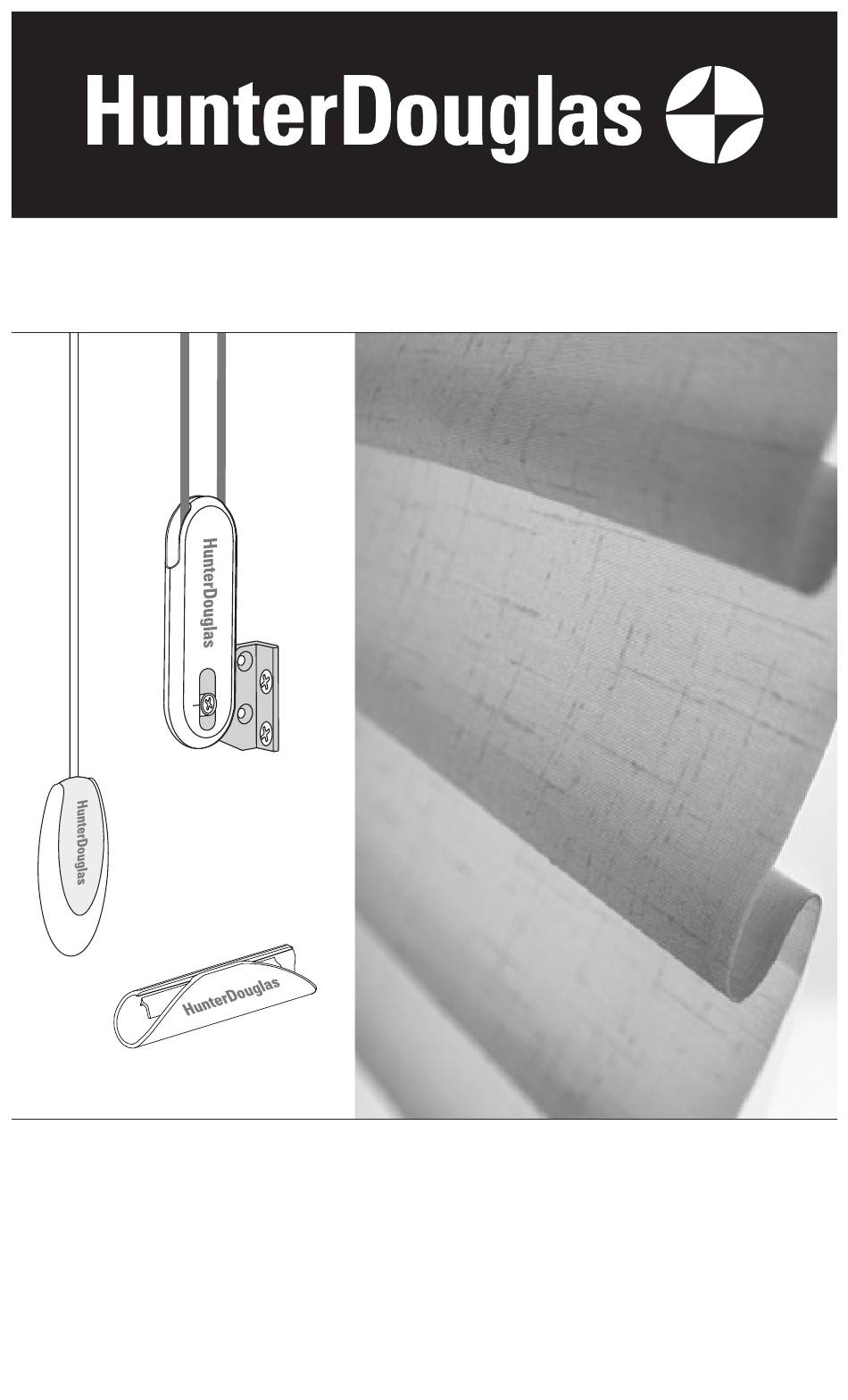

- Page 1 Installation Operation Care • • EasyRise ™ UltraGlide ® LiteRise ® Vignette Modern Roman Shades ® Traditional Style ™ EasyRise, LiteRise, and UltraGlide Operating Systems...
-
Page 2: Table Of Contents
CONTENTS Getting Started: Product View — Traditional Style EasyRise Shades ....1 ™ ™ Product View — Traditional Style UltraGlide Shades ..... 2 ® Product View — Traditional Style LiteRise Shades ....... 3 ® Tools and Fasteners Needed ............4 Installation: Installation Overview .............. -
Page 3: Getting Started
GETTING STARTED Product View — Traditional Style EasyRise Shades ™ ™ Installation Brackets Headrail Standard Shade 4" Full Fold Fabric Universal Cord Tensioner Bracket Magnetic Hold-Down Bracket (Optional) Middle Rail Top-Down/Bottom-Up Shade Not Shown: 6" Flat Fold and Two-on-One Headrail Shades... -
Page 4: Product View - Traditional Style Ultraglide ® Shades
GETTING STARTED Product View — Traditional Style UltraGlide Shades ™ ® Installation Brackets Headrail Standard Shade 4" Full Fold Fabric Retractable Cord Tassel Magnetic Hold-Down Bracket (Optional) Middle Rail Top-Down/Bottom-Up Shade Not Shown: 6" Flat Fold and Two-on-One Headrail Shades... -
Page 5: Product View - Traditional Style Literise ® Shades
GETTING STARTED Product View — Traditional Style LiteRise Shades ™ ® Installation Brackets Headrail Standard Shade 4" Full Fold Fabric Magnetic Hold-Down Bracket (Optional) Handle Not Shown: 6" Flat Fold and Two-on-One Headrail Shades... -
Page 6: Tools And Fasteners Needed
GETTING STARTED Thank you for purchasing Hunter Douglas Vignette Modern Roman Shades. With proper ® installation, operation and care, your new shades will provide years of beauty and performance. Please thoroughly review this instruction booklet and the enclosed packing list before beginning the installation. -
Page 7: Installation
INSTALLATION Installation Overview Your order will include installation brackets specific to your shade. ■ The number of installation brackets required varies with shade width, as shown in ➤ the table below. Shade Brackets Width Required 12" – 36" " – 72" Installation "... -
Page 8: Mount The Installation Brackets - Inside Mount
INSTALLATION Mount the Installation Brackets — Inside Mount Mark 3" from each jamb for bracket location. ■ If more than two installation brackets came with your order, space additional bracket(s) ➤ evenly between the two end brackets. Mount into wood whenever possible. 3"... -
Page 9: Mount The Installation Brackets - Outside Mount
INSTALLATION Mount the Installation Brackets — Outside Mount Center the shade over the window opening at the desired height. Use a pencil to lightly mark ■ each end of the headrail on the mounting surface. Alternatively, measure the width of the headrail and use that width to mark the headrail ➤... -
Page 10: Mount The Installation Brackets - End Mount
INSTALLATION Drill the screw holes using a " drill bit. ■ CAUTION: Use drywall anchors when mounting into drywall. 3" Attach the installation bracket using the screws ■ provided. IMPORTANT: The front edges of the installation brackets must be level and aligned to each other. If using spacer blocks, attach the spacer ■... -
Page 11: Install The Shade
INSTALLATION Install the Shade Hold the headrail so the front ■ Installation Bracket ➊ (curved side) faces you. Push the top edge of the headrail ■ into the installation brackets. Headrail Rotate the headrail back and push ■ up until it snaps into place. You Fabric Guard ➋... -
Page 12: Attach The Universal Cord Tensioner - Easyrise Shades Only
INSTALLATION Attach the Universal Cord Tensioner — EasyRise Shades Only ™ Before you proceed, you must first slide the cord tensioner(s) to the bottom of the cord loop. Insert a small screwdriver, punch, or awl through the screw hole at the bottom ■... -
Page 13: Cord Adjustment - Ultraglide Shades Only
INSTALLATION Cord Adjustment — UltraGlide Shades Only ® Adjusting the tassel to eye level will decrease the amount of pulls needed to raise and lower the shade. This will also enhance child and pet safety. To Shorten the tassel cord: Grasp both parts of the tassel (the colored cover and the ■... -
Page 14: Attach The Magnetic Hold-Down Brackets (Optional)
OPERATION Attach the Magnetic Hold-Down Brackets (Optional) Lower the shade until it is fully lowered and rotated back ■ toward the window. Magnetic Hold-Down Attach the magnetic hold-down brackets onto the bottom rail ■ Bracket just inside the end caps, oriented as shown. Mark the screw locations using one of the mounting options ■... -
Page 15: Operate The Shade
OPERATION Operate the Shade EasyRise Shades ™ IMPORTANT: If the cord tensioner moves with the cord, you have not secured it to the wall or window frame. You must do so for the shade to operate properly. See the Universal Cord Tensioner Installation Instructions in the kit included with your shade. - Page 16 OPERATION UltraGlide Shades ® CAUTION: To avoid damage to the shade or personal injury, do not let go of the cord until it is fully retracted. To Lower the Shade: Using long, even strokes, pull the cord toward the center ■ of the shade.
-
Page 17: Troubleshooting
OPERATION Troubleshooting Problem The shade is hard to raise or lower, or will not raise or lower. Solution Check that the headrail and installation brackets are level and aligned in the window. Level the headrail by shimming the installation brackets, if necessary. Make sure the fabric is not caught in the installation brackets. - Page 18 OPERATION Problem EasyRise shades only: The universal cord tensioner has climbed to the ™ headrail. Solution Pull down on the spring to relieve tension and pull the universal cord tensioner to the bottom of the cord loop. Properly mount the cord tensioner. See “Attach the Universal Universal Cord Tensioner —...
-
Page 19: Care
CARE Removing the Shade (If Necessary) Fully raise the shade. ■ While holding the headrail, place the ■ Locking flat blade screwdriver on the installation Arrows bracket’s locking tab. Insert the screwdriver between the ➤ Push arrows on the bottom tabs. Push up to release the shade. - Page 20 CARE Ultrasonic Cleaning Vignette Modern Roman Shades can be ultrasonically cleaned by a professional. ® CAUTION: Do not ultrasonically clean the headrail, midrail, bottom rail fabric; or any room- darkening shades. Specify that a mild detergent solution be used. ■ Never immerse the fabric-covered headrail or bottom rail into the solution.
-
Page 21: Child Safety
CHILD SAFETY Warning WARNING For more safety information call 1-888-501-8364 in the U.S. or 1-800-225-8000 in Canada. Young children can STRANGLE in cord loops. They can also wrap cords around ■ their necks and STRANGLE. Always keep cords out of the reach of children. ■... - Page 22 Notes...
- Page 24 If you are not thoroughly satisfied, simply contact Hunter Douglas at (888) 501-8364 or visit hunterdouglas.com. In support of this policy of consumer satisfaction, we offer our Lifetime Limited Warranty as described below.
