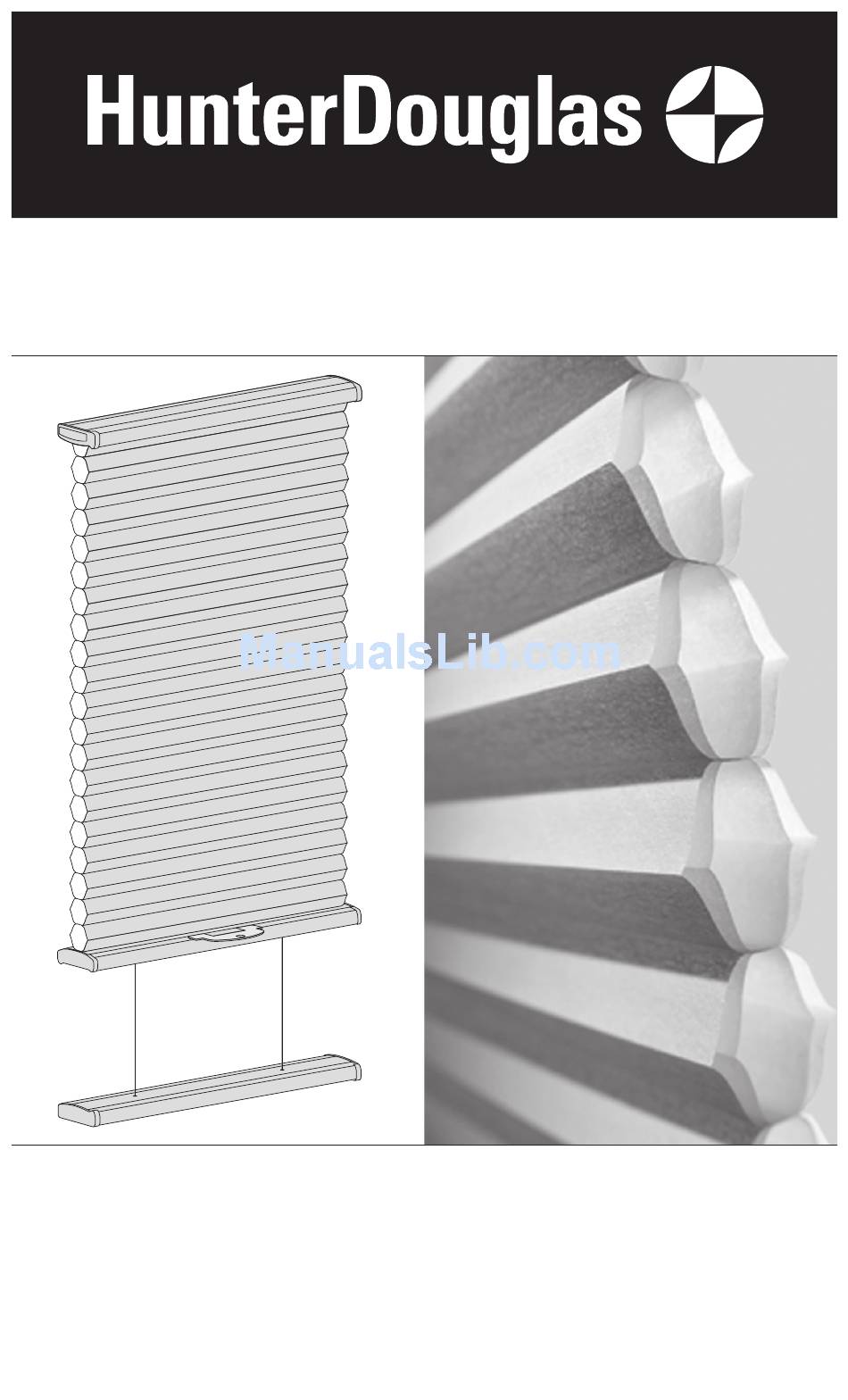

- Page 1 Installation Operation Care • • Duette and Applause ® ® Honeycomb Shades Cordless Sidelight Shades...
- Page 2 CONTENTS Getting Started: Product View ...............1 Tools and Fasteners Needed ..........2 Installation: Installation Overview ............3 Mount the Installation Brackets — Inside Mount ....4 Mount the Installation Brackets — Outside Mount ....5 Mount the Installation Brackets — End Mount .......7 Install the Shade ..............8 Operation: Operate the Shade ...............9 Troubleshooting ..............10...
-
Page 3: Product View
GETTING STARTED Product View Installation Brackets End Cap Headrail Top-Down Bottom Rail Not Shown: Standard Bottom-Up Installation Brackets Top-Down/Bottom-Up Non-Operable Note: The installation procedures for operable and non-operable sidelights are the same. -
Page 4: Tools And Fasteners Needed
GETTING STARTED Thank you for purchasing Hunter Douglas Duette or Applause honeycomb shades. With proper ® ® installation, operation, and care, your new shades will provide years of beauty and performance. Please thoroughly review this instruction booklet and the enclosed packing list before beginning the installation. -
Page 5: Installation Overview
INSTALLATION Installation Overview Your order will include four Installation brackets per shade, either standard installation ■ brackets, optional swivel brackets, or end mount brackets. Optional swivel brackets can be used with inside mounted shades only. ➤ " " " " "... -
Page 6: Mount The Installation Brackets — Inside Mount
INSTALLATION Mount the Installation Brackets — Inside Mount Mark 1 " from each jamb for the headrail and the bottom rail. ■ " " Jamb Jamb Center the brackets on your marks, then mark the location of the screw holes. ■... -
Page 7: Mount The Installation Brackets — Outside Mount
INSTALLATION Mount the Installation Brackets — Outside Mount Center the headrail over the window opening at the desired height. Use a pencil to lightly ■ mark each end of the headrail and the bottom rail. Alternatively, measure the width of the headrail and use that width to mark the rail end ➤... - Page 8 INSTALLATION Drill the screw holes using a " drill bit. ■ IMPORTANT: Use drywall anchors when mounting into drywall. Attach the installation brackets or extension brackets at the top and bottom of the window ■ opening using the screws provided. IMPORTANT: The front edges of the installation brackets must be level and aligned to each other.
-
Page 9: Mount The Installation Brackets — End Mount
Slightly remove the end caps from the headrail. Do not remove them all the way. ■ Insert the short end of the specialty ■ Duette Headrail ® end mount brackets over each of the end caps and under the small... -
Page 10: Install The Shade
INSTALLATION Install the Shade Standard Installation Brackets Headrail Position the shade so that the handle face you. ■ Slip the headrail into the installation brackets so ■ the front of the bracket slides under the front groove on the top of the headrail. Gently roll the back of the headrail up and push ■... -
Page 11: Operate The Shade
OPERATION Operate the Shade Standard Top-Down or Bottom-Up Shades: To Raise or Lower the Moving Rail Slowly and steadily push up or down on the moving rail handle. ■ Allow the fabric to stack evenly. Top-Down Shade Illustrated Top-Down/Bottom-Up Shades: To Raise or Lower the Moving Rails Slowly and steadily push up or down on the moving rail handles. -
Page 12: Troubleshooting
OPERATION Troubleshooting Problem The shade will not snap into the mounting brackets. Solution Make sure mounting brackets are level. Loosen the tab screws slightly. Problem The shade does not raise and lower evenly. Solution Check the installation brackets. Make sure the shade fabric is not caught between the bracket tab and the headrail. - Page 13 OPERATION Problem The ferrule has come off the cord. How do I re-thread the ferrule? Solution Thread the end of the cord into the tapered end of the Be sure the cord ferrule. Loop the cord around the ferrule and back loop fits into the ferrule through the tapered end.
-
Page 14: Remove The Shade
While holding the headrail or bottom rail, ■ pull the push tab to rotate the swivel arm to the open position to release the rails. Cleaning Procedures Hunter Douglas Duette and Applause honeycomb shades are made of anti-static, dust- ® ®... - Page 15 CARE Bathtub Cleaning/Water Immersion CAUTION: Do not immerse Batiste, Commercial, Elan , India Silk, Meritage , Opalessence ™ ™ ® Panache , Renewal , Royale Textured , Venue , and all opaque fabrics. ™ ™ ™ ™ Immerse the shade in a basin or bathtub filled with warm water and a mild detergent. ■...
- Page 16 If you are not thoroughly satisfied, simply contact Hunter Douglas at (888) 501-8364 or visit hunterdouglas.com. In support of this policy of consumer satisfaction, we offer our Lifetime Limited Warranty as described below.
