Summary of Contents for HunterDouglas Provenance EasyRise

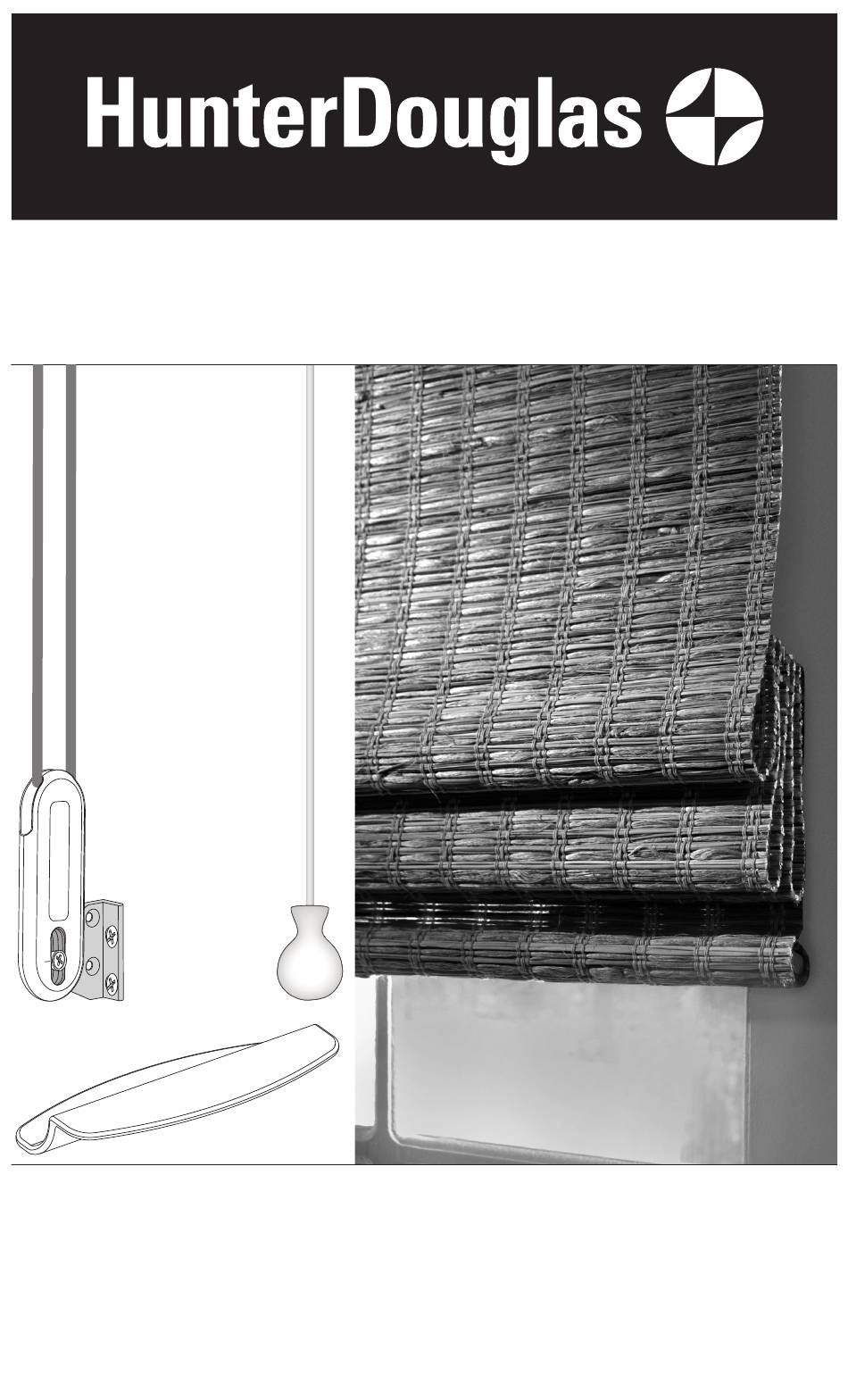

- Page 1 Installation Operation Care • • Provenance Woven Wood Shades ® EasyRise , UltraGlide , and LiteRise ® ™ ® Lifting Systems...
-
Page 2: Table Of Contents
CONTENTS GETTING STARTED EasyRise and UltraGlide Shades ................1 ™ ® Tools and Fasteners Needed ..................2 INSTALLATION Installation Overview ....................3 Mount the Installation Brackets — Inside Mount .............4 Mount the Installation Brackets — Outside Mount ..........5 Mount Installation Brackets — Outside Mount with Optional Cornice Valance ..7 Install the Shade .......................10 Install the Shade Returns —... -
Page 3: Easyrise And Ultraglide Shades
PRODUCT VIEW EasyRise and UltraGlide Shades ™ ® Fabric Valance Installation Brackets Cord Loop Cord Tensioner Bracket Tassel Standard Hold-Down Bracket (Optional) Not Shown: Top-Down/Bottom-Up and LiteRise ®... -
Page 4: Tools And Fasteners Needed
GETTING STARTED Thank you for purchasing Hunter Douglas Provenance Woven Wood Shades. With proper ® installation, operation, and care, your new shades will provide years of beauty and performance. Please thoroughly review this instruction booklet and the enclosed packing list before beginning the installation. -
Page 5: Installation
GETTING STARTED Installation Overview Your order will include the correct number of installation brackets for your shade width, as ■ shown in the table below. Shade Brackets Width Required 15" – 36" " – 72" Installation Inside Mount " – 108" Bracket Spacer Block... -
Page 6: Mount The Installation Brackets - Inside Mount
INSTALLATION Mount the Installation Brackets — Inside Mount Mark 2" in from each jamb. ■ If more than two installation brackets came with your order, space additional bracket(s) ➤ evenly between the two end brackets and mark their location. Mount into wood whenever possible. -
Page 7: Mount The Installation Brackets - Outside Mount
INSTALLATION Mount the Installation Brackets — Outside Mount Center the headrail over the window opening at the desired height. Use a pencil to lightly ■ mark each end of the headrail. Alternatively, measure the width of the headrail and use that width to mark the ➤... - Page 8 INSTALLATION Extension brackets provide up to 1 " of clearance. Extension ■ Bracket If used, center the brackets on your marks and mark the screw holes. Drill the screw holes using a " drill bit. ■ WARNING: Product is heavy. Mount into wood/metal studs or into concrete with concrete anchors.
-
Page 9: Mount Installation Brackets - Outside Mount With Optional Cornice Valance
INSTALLATION Mount Installation Brackets — Outside Mount with Optional Cornice Valance With the optional cornice valance, first the valance headboard is mounted and then the installation brackets are mounted to the wall under the headboard. Center the headboard above the window opening at the ■... - Page 10 INSTALLATION Drill the screw holes for the L-bracket using a ⁄ " drill bit. ■ Valance Valance WARNING: Product is heavy. Mount into wood/metal Headboard L-Bracket End Mark studs or into concrete with concrete anchors. Drywall anchors are not recommended. 3"...
- Page 11 INSTALLATION Mark the screw holes for the shade installation brackets on the wall underneath the ■ valance headboard. The top of the shade installation brackets must be ¼" below the bottom of the valance ➤ headboard, so that the L-brackets do not interfere with shade installation. Top of Bracket ¼"...
-
Page 12: Install The Shade
INSTALLATION Install the Shade Insert Front Lip of Headrail With the headrail slightly tilted, ■ onto Bracket insert the front lip of the headrail onto the front lip of the installation bracket. Push the headrail back and ■ up until its bottom lip snaps Push Up into bottom tab on the Bottom... - Page 13 INSTALLATION If You Have a Cornice Valance... With the bottom of the valance angled away from the valance headboard, align the top of ■ the valance with the top of the valance headboard and press into place. Spread the returns. ■...
-
Page 14: Attach The Universal Cord Tensioner - Easyrise Only
INSTALLATION Attach the Universal Cord Tensioner — EasyRise Only ™ Before you proceed, you must first slide the cord tensioner to the bottom of the cord loop. Insert a small screwdriver, punch, or awl through ■ the screw hole at the bottom of the cord tensioner. Universal Move the screw hole down to the indicator line to ■... -
Page 15: Operation
OPERATION Operate the Shade IMPORTANT: Top-Down/Bottom-Up shades have two lift cords. To operate Top-Down/ Bottom-Up shades, the right cord operates the middle rail and the left cord operates the bottom rail. You must first lower the bottom rail before lowering the middle rail. Likewise, you must first raise the middle rail before raising the bottom rail. - Page 16 To Raise: Pull the OPERATION cord straight down with short strokes. UltraGlide Shades ® For smooth operation, keep the cord close to the fabric when lowering and raising the shade. To Lower the Shade Pull the cord toward the center of the shade at about a 45° ■...
-
Page 17: Troubleshooting
OPERATION LiteRise® Shades For better support and smoother operation, use the handle when raising and lowering the shade. To Raise the Shade Slowly and steadily push up on the bottom rail ■ handle. Allow the shade to stack evenly. To Lower the Shade Slowly and steadily pull down on the bottom ■... - Page 18 OPERATION Problem The shade raises or lowers unevenly or the bottom rail is uneven when fully raised. Solution Check that the headrail and installation brackets are level and aligned. Shim the installation brackets to level the headrail, if necessary. Check to see if there is an obstruction in the shade’s path. If a shade hits an obstruction as it is lowered, it may become misaligned.
-
Page 19: Care
CARE Removing the Shade (If Necessary) For shades with optional Cornice Valance. ■ Remove the valance by pulling it away from the hook and loop tape starting at one return and working around the valance board. Raise the shade completely. ■... -
Page 20: Child Safety
CHILD SAFETY WARNING For more safety information, call 1-800-997-2389. Young children can STRANGLE in cord loops. They can also wrap cords around ■ their necks and STRANGLE. Always keep cords out of the reach of children. ■ Move cribs, playpens and other furniture away from cords. Children can climb ■... - Page 21 Notes...
- Page 22 Notes...
- Page 24 If you are not thoroughly satisfied, simply contact Hunter Douglas at (888) 501-8364 or visit hunterdouglas.com. In support of this policy of consumer satisfaction, we offer our Lifetime Limited Warranty as described below.
