Summary of Contents for HunterDouglas Vignette Traditional

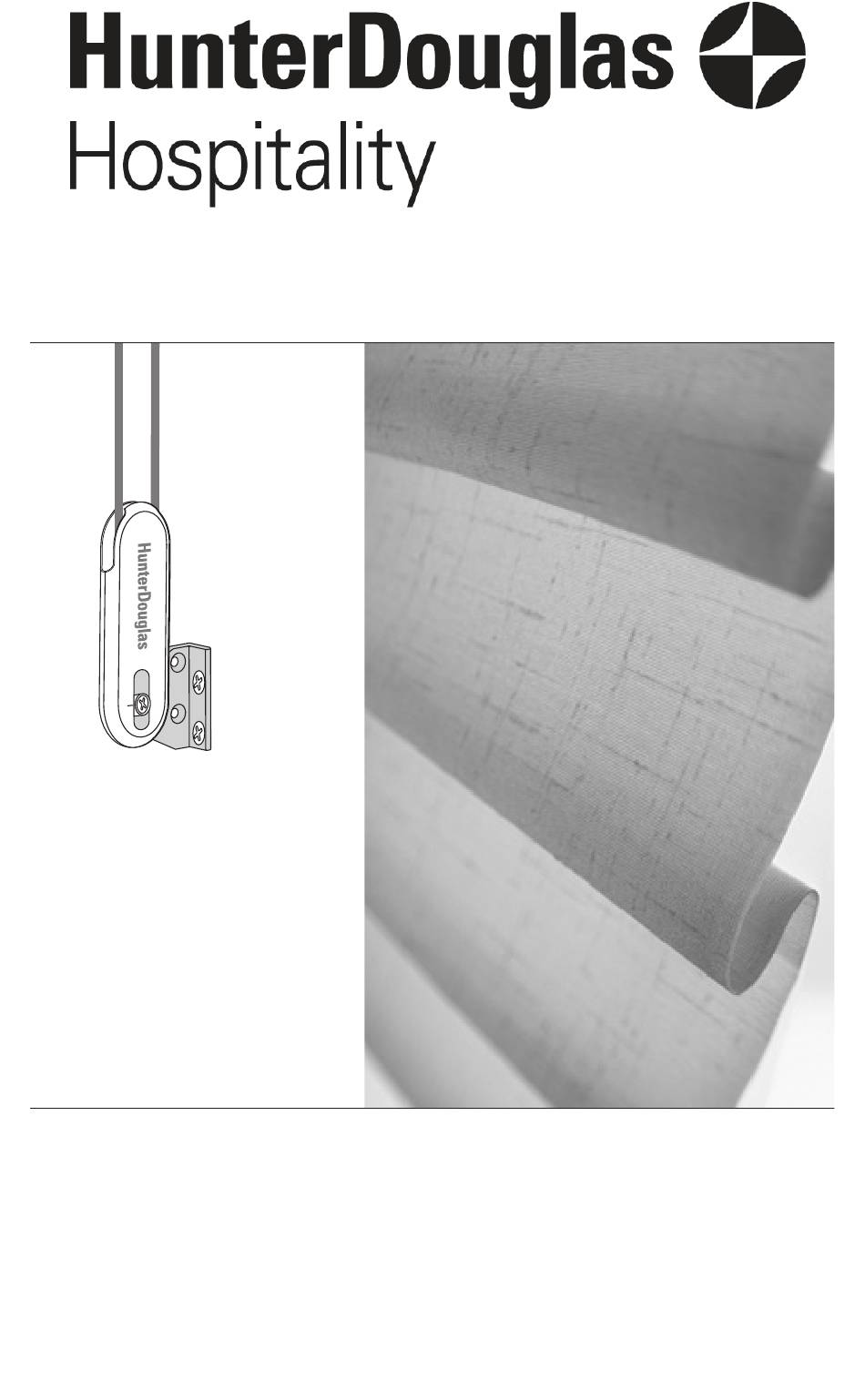

  • Page 1 Installation Operation Care • • EasyRise ™ Vignette Modern Roman Shades ® Traditional Style ™ EasyRise Operating System...
  • Page 2: Table Of Contents

    CONTENTS Getting Started: Product View — Traditional Style EasyRise Shades ....1 ™ ™ Tools and Fasteners Needed ............2 Installation: Installation Overview ..............3 Mount the Installation Brackets — Inside Mount ......4 Mount the Installation Brackets — Outside Mount ......5 Mount the Installation Brackets —...
  • Page 3: Getting Started

    GETTING STARTED Product View — Traditional Style EasyRise Shades ™ ™ Installation Brackets Headrail Standard Shade 4" Full Fold Fabric Universal Cord Tensioner Bracket Not Shown: 6" Flat Fold and Two-on-One Headrail Shades...
  • Page 4: Tools And Fasteners Needed

    GETTING STARTED Thank you for purchasing Hunter Douglas Vignette Modern Roman Shades. With proper ® installation, operation and care, your new shades will provide years of beauty and performance. Please thoroughly review this instruction booklet and the enclosed packing list before beginning the installation.
  • Page 5: Installation

    INSTALLATION Installation Overview Your order will include installation brackets specific to your shade. ■ The number of installation brackets required varies with shade width, as shown in ➤ the table below. Shade Brackets Width Required 12" – 36" " – 72" Installation "...
  • Page 6: Mount The Installation Brackets - Inside Mount

    INSTALLATION Mount the Installation Brackets — Inside Mount Mark 3" from each jamb for bracket location. ■ If more than two installation brackets came with your order, space additional bracket(s) ➤ evenly between the two end brackets. Mount into wood whenever possible. 3"...
  • Page 7: Mount The Installation Brackets - Outside Mount

    INSTALLATION Mount the Installation Brackets — Outside Mount Center the shade over the window opening at the desired height. Use a pencil to lightly mark ■ each end of the headrail on the mounting surface. Alternatively, measure the width of the headrail and use that width to mark the headrail ➤...
  • Page 8: Mount The Installation Brackets - End Mount

    INSTALLATION Drill the screw holes using a " drill bit. ■ CAUTION: Use drywall anchors when mounting into drywall. 3" Attach the installation bracket using the screws ■ provided. IMPORTANT: The front edges of the installation brackets must be level and aligned to each other. If using spacer blocks, attach the spacer ■...
  • Page 9: Install The Shade

    INSTALLATION Install the Shade Hold the headrail so the front ■ Installation Bracket ➊ (curved side) faces you. Push the top edge of the headrail ■ into the installation brackets. Headrail Rotate the headrail back and push ■ up until it snaps into place. You Fabric Guard ➋...
  • Page 10: Attach The Universal Cord Tensioner - Easyrise Shades Only

    INSTALLATION Attach the Universal Cord Tensioner — EasyRise Shades Only ™ Before you proceed, you must first slide the cord tensioner(s) to the bottom of the cord loop. Insert a small screwdriver, punch, or awl through the screw hole at the bottom ■...
  • Page 11: Operation

    OPERATION Operate the Shade EasyRise Shades ™ IMPORTANT: If the cord tensioner moves with the cord, you have not secured it to the wall or window frame. You must do so for the shade to operate properly. See the Universal Cord Tensioner Installation Instructions in the kit included with your shade.
  • Page 12: Troubleshooting

    OPERATION Troubleshooting Problem The shade is hard to raise or lower, or will not raise or lower. Solution Check that the headrail and installation brackets are level and aligned in the window. Level the headrail by shimming the installation brackets, if necessary. Make sure the fabric is not caught in the installation brackets.
  • Page 13 OPERATION Problem EasyRise shades only: The universal cord tensioner has climbed to the ™ headrail. Solution Pull down on the spring to relieve tension and pull the universal cord tensioner to the bottom of the cord loop. Properly mount the cord tensioner. See “Attach the Universal Universal Cord Tensioner —...
  • Page 14: Care

    CARE Removing the Shade (If Necessary) Fully raise the shade. ■ While holding the headrail, place the ■ Locking flat blade screwdriver on the installation Arrows bracket’s locking tab. Insert the screwdriver between the ➤ Push arrows on the bottom tabs. Push up to release the shade.
  • Page 15 CARE Ultrasonic Cleaning Vignette Modern Roman Shades can be ultrasonically cleaned by a professional. ® CAUTION: Do not ultrasonically clean the headrail, midrail, bottom rail fabric; or any room- darkening shades. Specify that a mild detergent solution be used. ■ Never immerse the fabric-covered headrail or bottom rail into the solution.
  • Page 16: Child Safety

    CHILD SAFETY Warning WARNING For more safety information call 1-888-501-8364 in the U.S. or 1-800-225-8000 in Canada. Young children can STRANGLE in cord loops. They can also wrap cords around ■ their necks and STRANGLE. Always keep cords out of the reach of children. ■...
  • Page 17 Notes...
  • Page 19 If you are not thoroughly satisfied, simply contact Hunter Douglas at (888) 501-8364 or visit hunterdouglas.com. In support of this policy of consumer satisfaction, we offer our Lifetime Limited Warranty as described below.
