Summary of Contents for HunterDouglas Standard Hardware System

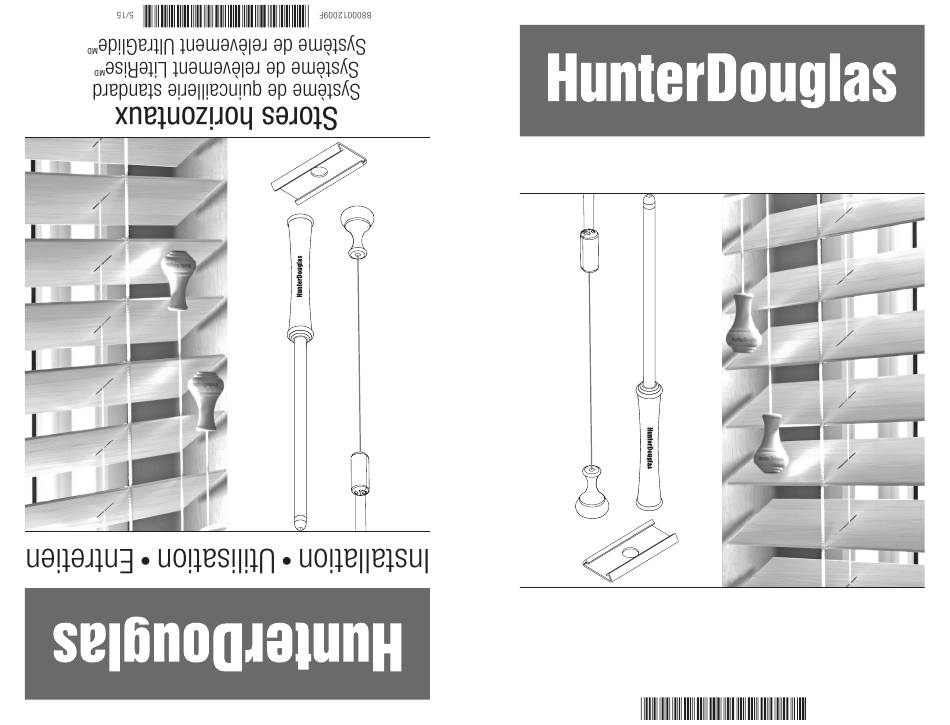

- Page 1 Installation Operation Care • • Horizontal Blinds Standard Hardware System LiteRise Operating System ® UltraGlide Operating System ® 8800012009F 5/15...
-
Page 2: Table Of Contents
CONTENTS Getting Started: Product View ..................1 Tools and Fasteners Needed ............2 Unpack the Blind ................2 Installation: Installation Overview ...............3 Mount the Installation Brackets — Inside Mount and Ceiling Mount ...5 Mount the Installation Brackets — Outside Mount ......7 Install the Blind ................10 Complete the Installation ..............12 Operation: Operate the Blind ................15... -
Page 3: Getting Started
GETTING STARTED Product View 2" or 4" Extension Spacer Block Brackets (Optional) (Optional) Brackets End Bracket Spacer Block Bracket Intermediate Bracket (If Required) Valance* Intermediate End Bracket Bracket Spacer Block Spacer Block Bracket Corner Clips for Valance Returns (If Required) Bracket Shim Valance Clips... -
Page 4: Tools And Fasteners Needed
GETTING STARTED Thank you for purchasing Hunter Douglas horizontal blinds. With proper installation, operation, and care, your new blinds will provide years of beauty and performance. Please thoroughly review this instruction booklet before beginning the installation. Tools and Fasteners Needed Flat blade and Phillips screwdrivers ■... -
Page 5: Installation
Two end brackets are used to mount horizontal blinds. Wider ■ blinds also require one or two intermediate brackets, as shown in the tables below. Intermediate Bracket Bracket Standard Hardware System ", 2", and 2 " Standard Wood Blinds 2" Standard Natural Elements ™ Aluminum Blinds 2" and 2 "... - Page 6 INSTALLATION Spacer Blocks for 2 " Slat Size NOTE: Spacer blocks are required for the 2 " slat size and optional for 2" and 1 " slat sizes. 2" and 2 " End Bracket Attach a spacer block to each of the two ■...
-
Page 7: Mount The Installation Brackets - Inside Mount And Ceiling Mount
INSTALLATION Mount the Installation Brackets — Inside Mount and Ceiling Mount Attach End Brackets With inside mounts or ceiling mounts, attach the two end brackets flush against the sides of the window casement or to the ceiling. (See the outside mount section for positioning the brackets for ceiling mounting.) Choose the most appropriate of the following mounting methods: Inside mount only: Mount the end brackets with one screw through a side hole and one ■... - Page 8 INSTALLATION Attach the end brackets using the screws provided. ■ IMPORTANT: The front edges of the brackets must be level and aligned to each other. NOTE: For blinds with 2 " slats, spacer blocks are used with inside mounts to position the brackets a minimum of "...
-
Page 9: Mount The Installation Brackets - Outside Mount
INSTALLATION Mount the Installation Brackets — Outside Mount To attach the brackets, a flat vertical surface at least 1 " is required for 2" and 2 " slat sizes, and at least 1 " high for the 1 " slat size. Mark End Bracket Locations Mark where the ends of the headrail will be located. - Page 10 INSTALLATION Attach the end brackets using two screws through diagonal holes. ■ If using spacer blocks, use #6 screws long enough for a secure installation (2 " ➤ recommended). IMPORTANT: The tops of the brackets must be level and aligned at the same height. CAUTION: The rear of the spacer blocks or brackets must be flush against a flat mounting surface.
- Page 11 INSTALLATION Extension Brackets (Optional) Attach 2" or 4" extension brackets to the mounting surface in the same locations where the end brackets and intermediate brackets would be attached. Use the provided screws to mount each extension bracket. ■ IMPORTANT: The tops of the end brackets and intermediate bracket(s) must align. Attach the installation brackets to the extension brackets using the screws and nuts ■...
-
Page 12: Install The Blind
INSTALLATION Install the Blind Attach Valance Clips With fully recessed inside mounts or ceiling mounts, the valance clips must be installed before mounting the headrail. Attach valance clips 2" from each end of the headrail. ■ Space additional clip(s) evenly between the two end clips so that the valance clips are no ■... - Page 13 INSTALLATION Adjust Headrail Tightness If the headrail is loose in the end brackets, bend the ■ tabs on the brackets outward. NOTE: The tabs may also be bent inward if the headrail is difficult to install into the end brackets. If your headrail end brackets do not have adjustable tabs, bend the tabs on the headrail ■...
-
Page 14: Complete The Installation
INSTALLATION Complete the Installation Attach the Wand (If Ordered) If the blind was ordered with a wand tilter, attach the wand to the metal shaft. NOTE: Wands may appear different from the illustration, but assembly is the same. Pull the plastic sleeve from the top of the wand and insert it over the metal shaft. ■... - Page 15 INSTALLATION Splice Valances For valances that are spliced, join the two mitered valance pieces Miters together by sliding the valance splice clip onto the back of the valance where the two halves meet. Attach the Valance Tilt the valance to insert its bottom notch into the bottom ■...
- Page 16 INSTALLATION Attach Hold-Down Brackets (Optional) For wood and alternative wood blinds, the bottom rail will come with pre-drilled " holes ■ and hold down pins that have been inserted in the centre of the bottom rail ends. For aluminum blinds, push out the perforated pin plug from each bottom rail end cap using a ballpoint pen or similar pointed object.
-
Page 17: Operation
Cord Tilt Raising and Lowering Raising and Lowering the Blind — Standard Hardware System IMPORTANT: Whenever raising or lowering the blind, the slats must be in the open position. Pull the single cord down and toward the centre to raise and lower. - Page 18 OPERATION Raising and Lowering the Blind — UltraGlide Operating System ® For smooth operation, keep the wand or cord close to the slats when raising and lowering the blind. Do not pull the wand or cord away from the blind. To Raise the Blind: Prior to raising or lowering, tilt slats to open position, using ■...
-
Page 19: Troubleshooting
OPERATION Troubleshooting Problem The blind will not fit into the installation brackets. Solution Make sure the brackets are level and aligned, and the mounting surface is flat. Problem The blind does not tilt. Solution Check that the tilt cords are not tangled or knotted. Check that the ladders have not become disengaged from the tape drums. - Page 20 OPERATION Problem UltraGlide blinds only: The blind will not lower when the wand or cord is ® pulled toward the centre of the blind. Solution The pull wand or cord must be in the fully retracted position to engage the lowering mechanism.
-
Page 21: Care
CARE Cleaning Procedures Like any fine furnishings, Hunter Douglas wood, alternative wood, and aluminum blinds should be cleaned regularly to keep them looking new. Wood, Alternative Wood and Aluminum Blinds Dust regularly. Use a soft clean cloth, chemically-treated dust cloth or dusting mitt. Lower ■... -
Page 22: Warning
CHILD SAFETY WARNING For more safety information call 1-888-501-8364 in the U.S. or 1-866-662-0666 in Canada or go to www.healthcanada.gc.ca/blindcords. Young children can STRANGLE in cord loops. They can also ■ wrap cords around their necks and STRANGLE. In addition, inner cords can pull out to form a loop, which can STRANGLE a young child. - Page 23 CHILD SAFETY Cord Cleats Hunter Douglas offers cord cleats and we recommend their use. Attach two cord cleats 6" to 12" apart at a height where they will be out of ■ the reach of children. Take into account that a child may stand on furniture attempting to reach the cords.
- Page 24 If you are not thoroughly satisfied with our product, simply contact Hunter Douglas Canada LP at 1-800-265-8000 in Brampton or visit hunterdouglas.ca. In support of this policy of consumer satisfaction, Hunter Douglas Canada LP offers the following Lifetime Limited Warranty.*...
