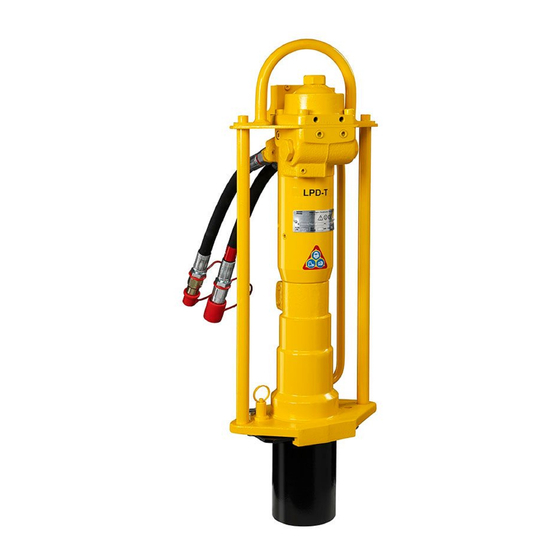

- Page 1 • Toll Free: 888-883-5144 Hydraulic post driver Operator’s Instructions LPD-T LPD-RV 2005-06 © Copyright 2005 No 3392 5036 01 ATLAS COPCO CONSTRUCTION TOOLS AB NACKA • SWEDEN www.atlascopco.com...
-
Page 2: Safety Regulations
• For reasons of product safety, the product must not be modified. • Use approved personal protective equipment. • Use Atlas Copco Genuine Parts only. • Replace damaged or worn plates. • Only trained personnel may work on the product. -
Page 3: Personal Protective Equipment
www.CrowderSupply.com • Toll Free: 888-883-5144 English Personal protective equipment Working zone WARNING WARNING Long-term exposure to loud noise can cause Do not use the hydraulic post driver in an permanent damage hearing explosiv e environment. protectors are not used. Make sure that no other personnel trespass into the working zone. - Page 4 www.CrowderSupply.com • Toll Free: 888-883-5144 English WARNING Hot surfaces DO NOT operate the post driv er at hydraulic oil temperatures higher than 60° C (140° F). Higher temperatures w ill be transmitted to the post driv er controls and may burn. WARNING Connecting/disconnecting the post driver...
-
Page 5: Changing Accessories
www.CrowderSupply.com • Toll Free: 888-883-5144 • Assembling the post driver with adaptors. The LPD requires an oil flow of 20-30 l.p.m. and then 1. Chose a suitable adaptor (see the accessories) works at a pressure of 105-125 bar. For connection see for the post. - Page 6 www.CrowderSupply.com • Toll Free: 888-883-5144 Choice of post driver The A/C range of the LPD is a heavy-duty, hydraulic powered post drivers designed for the ramming of various types of sign posts, wood piles and steel profiles into the ground. The LPD post driver can be equipped with built-in control valve, or a remote control valve.
- Page 7 • Toll Free: 888-883-5144 Technical Data Atlas Copco LPD LPD w /built-in valve: Weight w ithout hoses and adaptor......... 30.6 kg LPD w /built-in valve: Service w eight incl. 0.4 m tail-hose and adaptor....34.0 kg LPD w /remote valve: Weight w ithout hoses, remote valve and adaptor....28.8 kg LPD w /remote valve: Service w eight incl.
-
Page 8: Service Schedules
Waste hydraulic oil shall be handled in such as way as to cause no environmental impact. Recommended hydraulic oil In order to protect the environment Atlas Copco recommends the use of biologically degradable hydraulic oil. Viscosity 20 – 40 cSt... -
Page 9: Fault Finding
www.CrowderSupply.com • Toll Free: 888-883-5144 English Fault finding WARNING Maintenance must be done only by suitable qualified and competent persons. Symptom Possible fault Remedy Post driver fails to operate. No flow f rom supply. Check output with f low and pressure tester. - Page 10 www.CrowderSupply.com • Toll Free: 888-883-5144...
