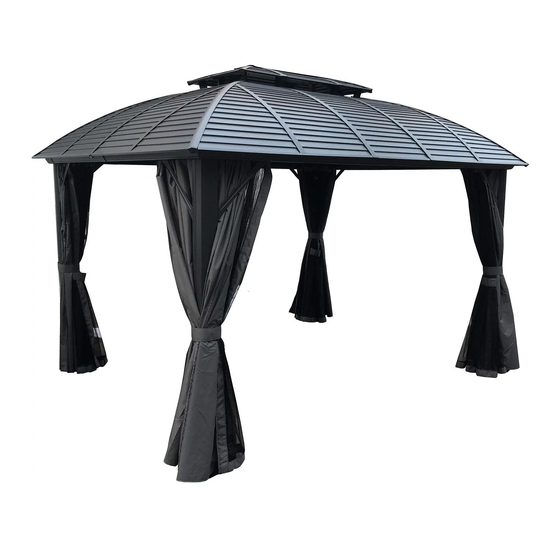

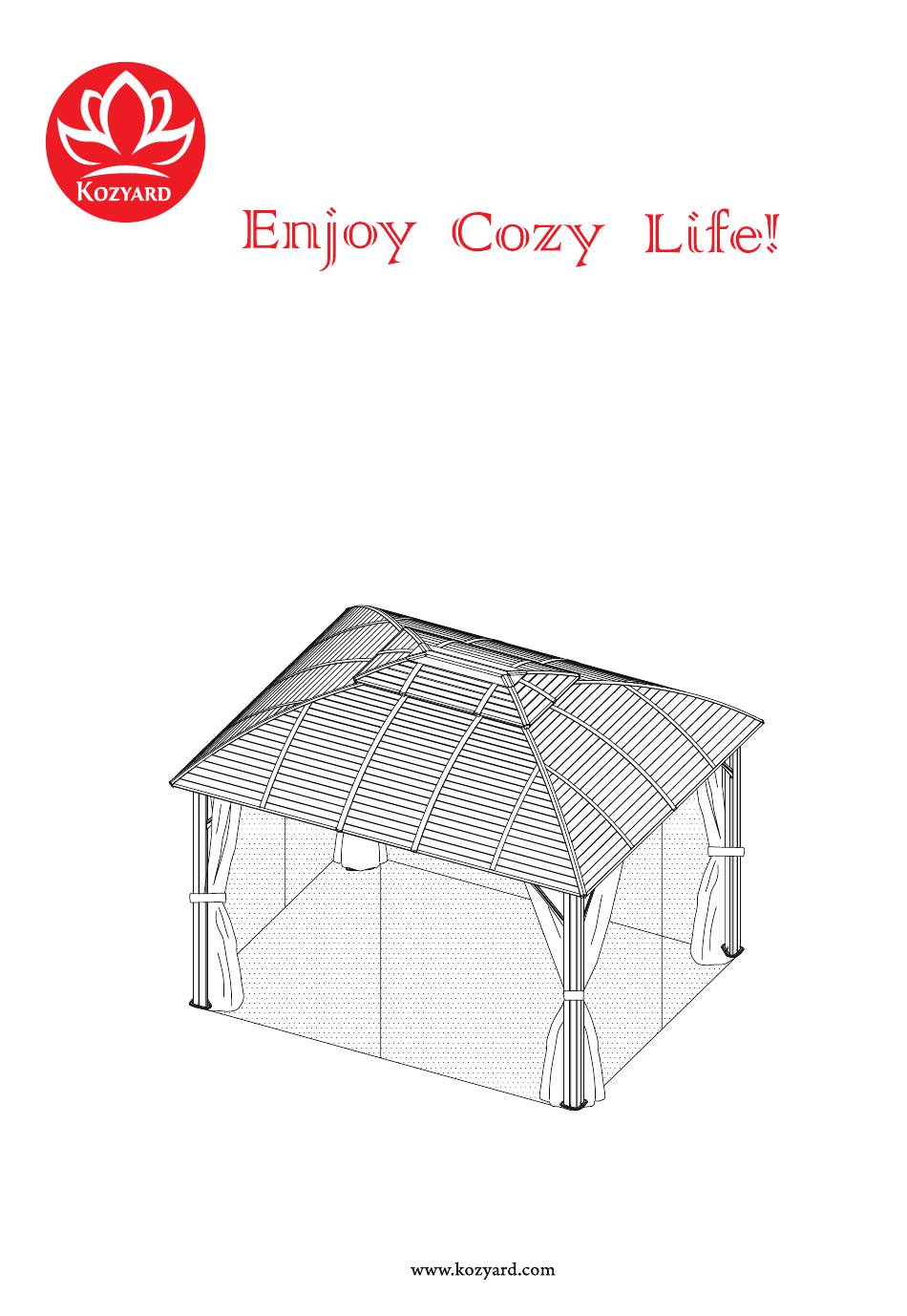

- Page 1 10’x12’ Odyssey Permanent Gazebo with Double Roof Assembly Manual Kozyard LLC Products Copyright 2016 - 2019 Kozyard LLC. | All Rights Reserved.
- Page 2 1. Two or more people are required 5. Use the hex keys included in the box. for assembly. 6. Please use a Phillips screwdriver. 2. You will need one or more step ladders. 7. Do not fully tighten screws until 3.
- Page 3 POLE BEAM BEAM BEAM CORNER ROOF BAR BEAM ROOF BAR FINISHING BAR FINISHING BAR FINISHING BAR FINISHING BAR FINISHING BAR FINISHING BAR FINISHING BAR ROOF BAR SOLIDIFYING BAR...
- Page 4 SOLIDIFYING BAR SOLIDIFYING BAR FINISHING BAR FINISHING BAR CORNER SOLIDIFYING BAR FINISHING BAR PLATE CORNER CORNER SUPPORTING SOLIDIFYING BAR JOINT COVER PART COVER FINISHING FINISHING INSIDE ROOF OUTSIDE ROOF CONNECTOR CONNECTOR SUPPORTING FINISHING PANELS PANELS PART PANELS PANELS PANELS PANELS PANELS PANELS PANELS...
- Page 5 SOLID PLASTIC HOOK PANELS SIDEWALL LOCK MOSQUITO JOINT COVER SCREWS SCREWS SIDEWALL ALLEN KEY SCREWS SCREWS SCREWS Step 1: Set up poles (Part A) with plates (Part B) using screws #1 as shown in diagram.
- Page 6 Step 2: Connect Part C and C1 into one beam using screws #1 as shown in diagram. C 2x C1 2x C2 2x C3 2x 1 16x Connect Part C2 and C3 into one beam using screws #1 as shown in diagram.
- Page 7 Step 3: Use screws #1, #2 and #3 to connect poles and beams as shown in diagram.
- Page 8 Step 4: Affix the frame with corner solidifying bars (Part L and L1) by using screws #1 as shown in diagram.
- Page 9 M5x10 x104 AA x4 Step 5： ② ① ① ② Step 5, After you finish putting the hooks into the tracks, secure part AA using screws #5. This locks the hooks into place. ① ② Put 6 hooks to each slot of Put 7 hooks to each slot of sidewall track (Part C and Part C1) sidewall track (Part C2 and Part C3)
- Page 10 Step 6: Finish connecting beams using corner covers (Part M) and screws #4 as shown in diagram. Affix middle beams using joint cover (Part N) and screws #4 and #5 as shown in diagram.
- Page 11 Step 7: Set up roof frame. Affix the supporting part (Part P) Connect the inside roof to the corner roof bar using connector (Part Q) with the screws #1 corner roof bar (Part D) using screws #1 as shown in diagram.
- Page 12 Step 9: M6x12 Attach Roof Bars (Part E) to inside roof connector and main beam using Screws 1#&2# as shown in diagram.
- Page 13 Step 10: Connect the outside roof connector (Part Q1) to inside roof (Part Q) using screw #2 as shown in diagram. M6x12 M6x16 Affix finishing bars (Part F, F1 and F2) to roof bars (Part D & E) using fnishing end (Part R and R1) and screws #1 and #2 as shown in diagram.
- Page 14 Step 11: Insert panels (Part T,T1 and T2) into the slots of roof bars as shown in diagram. Step 12: M6x12 Affix finshing bars (Parts G, G1 and G2) to roof bars (Part E and D) using finishing end (Part R and R2) and screw #1 as shown in diagram.
- Page 15 Step 13: Affix roof bars (Parts H and H1) to beam using supporting part (Part S) and screws #1 as shown in diagram. M6x12 Insert roof bars (Part H and H1) to the slot of corner roof bar (Part D) as shown in diagram.
- Page 16 Step 14: Affix solidifying bars (Parts J and J1) to corner roof bar (Part D) using screw #1 as shown in diagram. M6x12 Affix solidifying bars (Parts J and J2) to roof bar (Part E) using screw 1# as shown in diagram.
- Page 17 Overall Roof Assembly Attention: Start from V and install piece by piece in a clockwise sequence. Only W and W1 can joinly insert into the slot. Fit V2 and V3 from top to the slot.
- Page 18 Step 15: 2. Only after the sheet metal fits well into the slot, then install part Y to fix it. 1. Insert V into the slot of H and E, then put V2 from above to the slot and join with V. Join W1 and W, then insert into the slot of E Connection between V and V2,V1and V3,Wand W1...
- Page 19 Step 16: M6X12 Affix finishing bars (Parts K, K1 and K2) to roof bars using finishing end (Part R and R2) and screws as shown in diagram.
- Page 20 Step 17 : Hang up solid sidewall as shown in diagram.
- Page 21 Step 18: When you close the curtain, please tie fabric strape to poles as shown in diagram. There are three ways to secure your netting and curtains to the legs using the 4 included ties： 1.) Securing just 2.) Securing netting 3.) Use all ties for the netting.
- Page 22 Support: Toll Free: 1-866-355-0018 www.kozyard.com email: support @kozyard.com Kozyard LLC 2825 80Th AVE SE, Suite 202 Mercer Island, WA 98040 © Copyright 2016 - 2019 Kozyard LLC. | All Rights Reserved.
