M-system M3-UNIT Series Operating Manual page 33

4

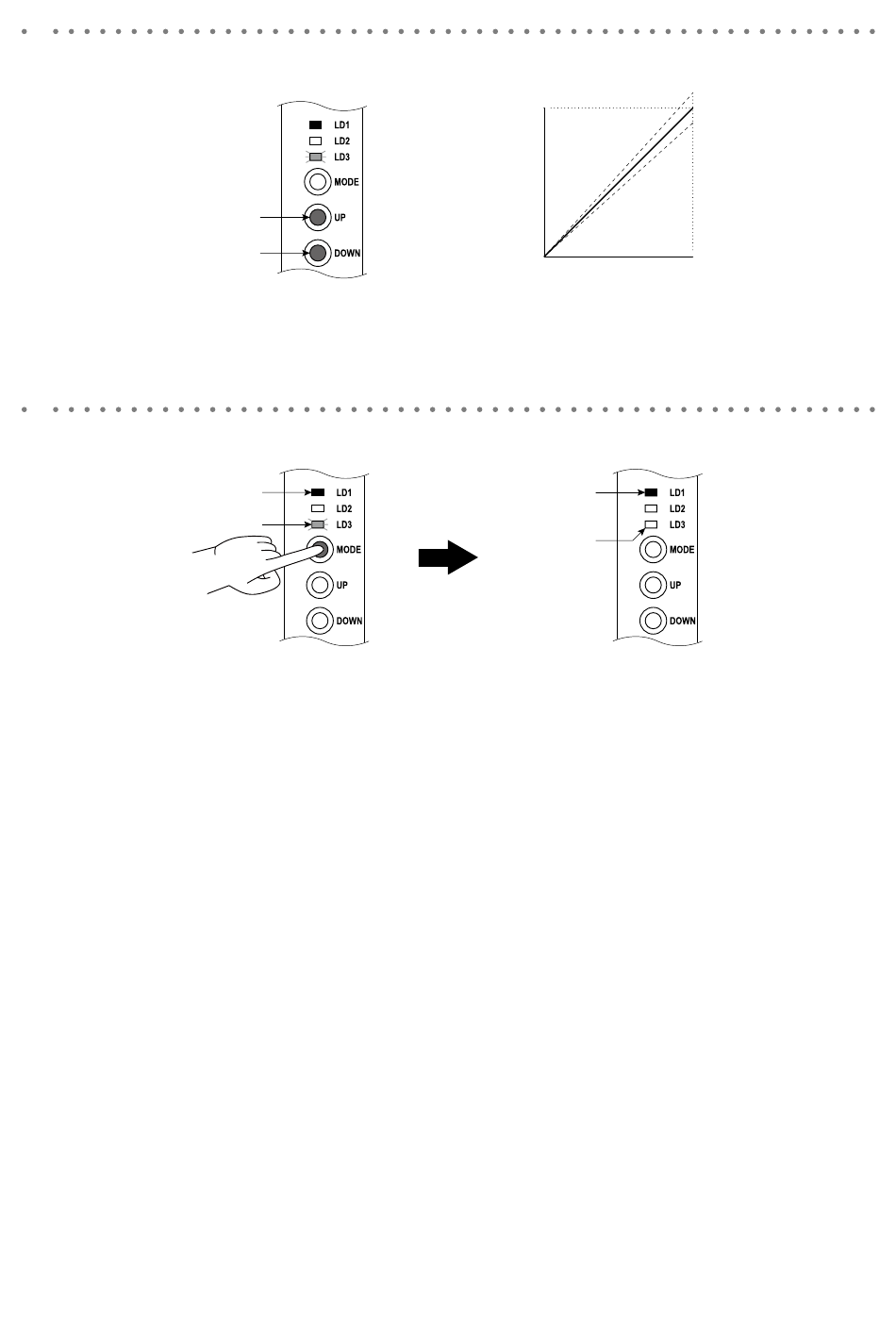

Use UP (increase) and DOWN (decrease) buttons to adjust the output to 100%. Check the output with a mul-
timeter.
Increase output
Decrease output
• Adjust the output value to 100% regardless of the input.
• Increase the output with UP button, and decrease with DOWN.
• Skip to the next procedure when fine span adjustment is not necessary.
5
Press MODE button to return to the RUN mode.
Green blinking
• Press MODE button once to return to the RUN Mode.
• The LD3 turns OFF and the LD1 green LED is ON (DIP SW configuration) or blinking (PC configuration).
Red ON
Output
Green ON
or
bllinking
OFF
Press once
M3LDY OPERATING MANUAL EM-2664-B Rev.0
UP (increase) ↑
DOWN (decrease) ↓
Input
33
