M-system M3-UNIT Series Operating Manual page 30

Current loop supply (linearizing; field- and pc-configurable)

Hide thumbs Also See for M3-UNIT Series:

Table of Contents

Press MODE button to return to the RUN Mode.

Green ON

Red ON

blinking

Red blinking

OFF

Press once

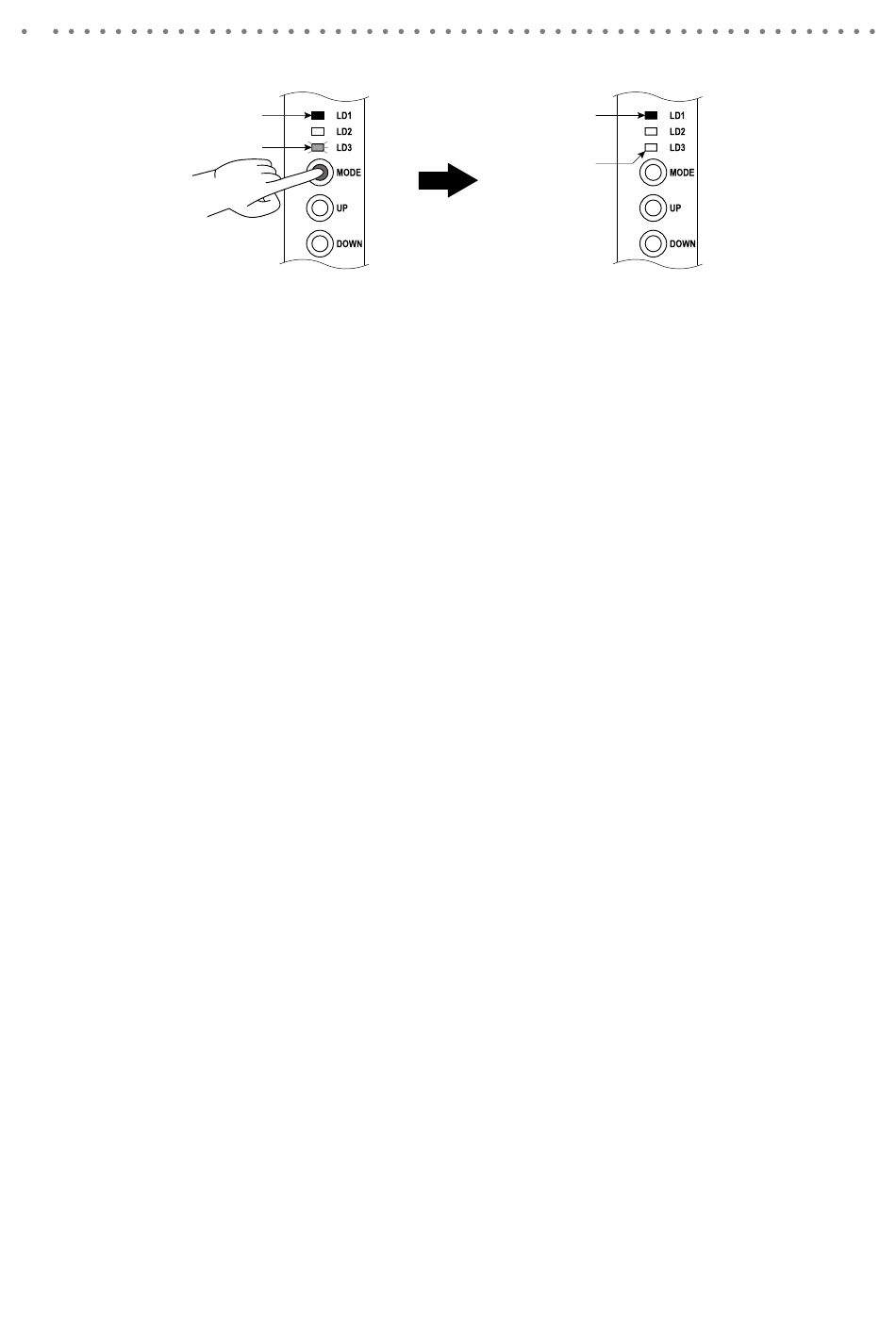

• Press MODE button once to return to the RUN mode.

• The LD3 turns OFF and the LD1 green LED is ON (DIP SW configuration) or blinking (PC configuration).

M3LDY OPERATING MANUAL EM-2664-B Rev.0
