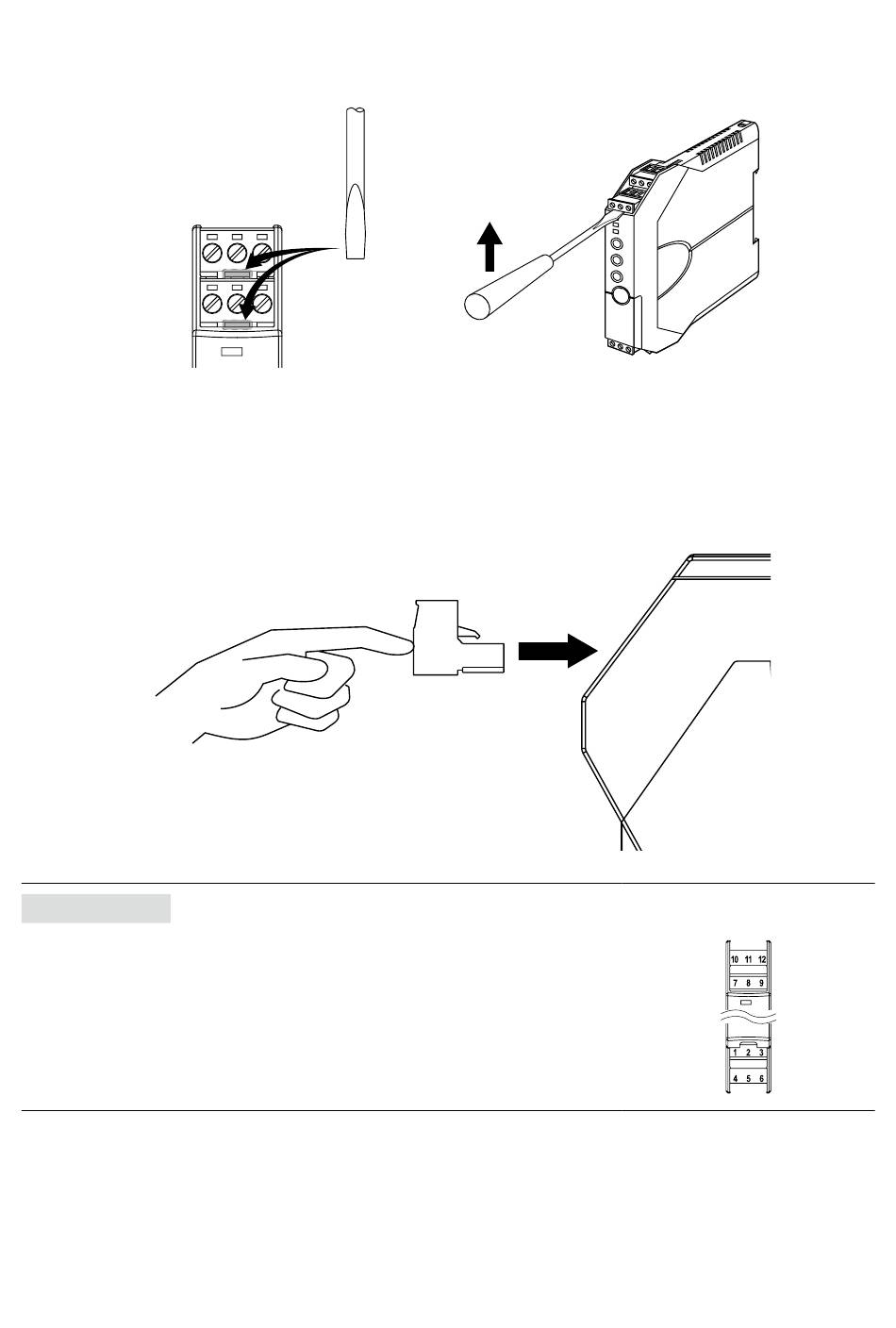

■ INsTALLATION/sEPARATION OF TERMINAL BLOCK
• Separation
Insert a minus screwdriver between the terminal block and the housing body, pull up the driver and pull out the terminal
block.
• Installation
Push the terminal block until it clicks into place.
NOTE
Match the terminal numbers of the terminal blocks with those indicated on the trans-
mitter body in installing the blocks (figure on the right).
M3LDY OPERATING MANUAL EM-2664-B Rev.0
