9. INsTALLATION

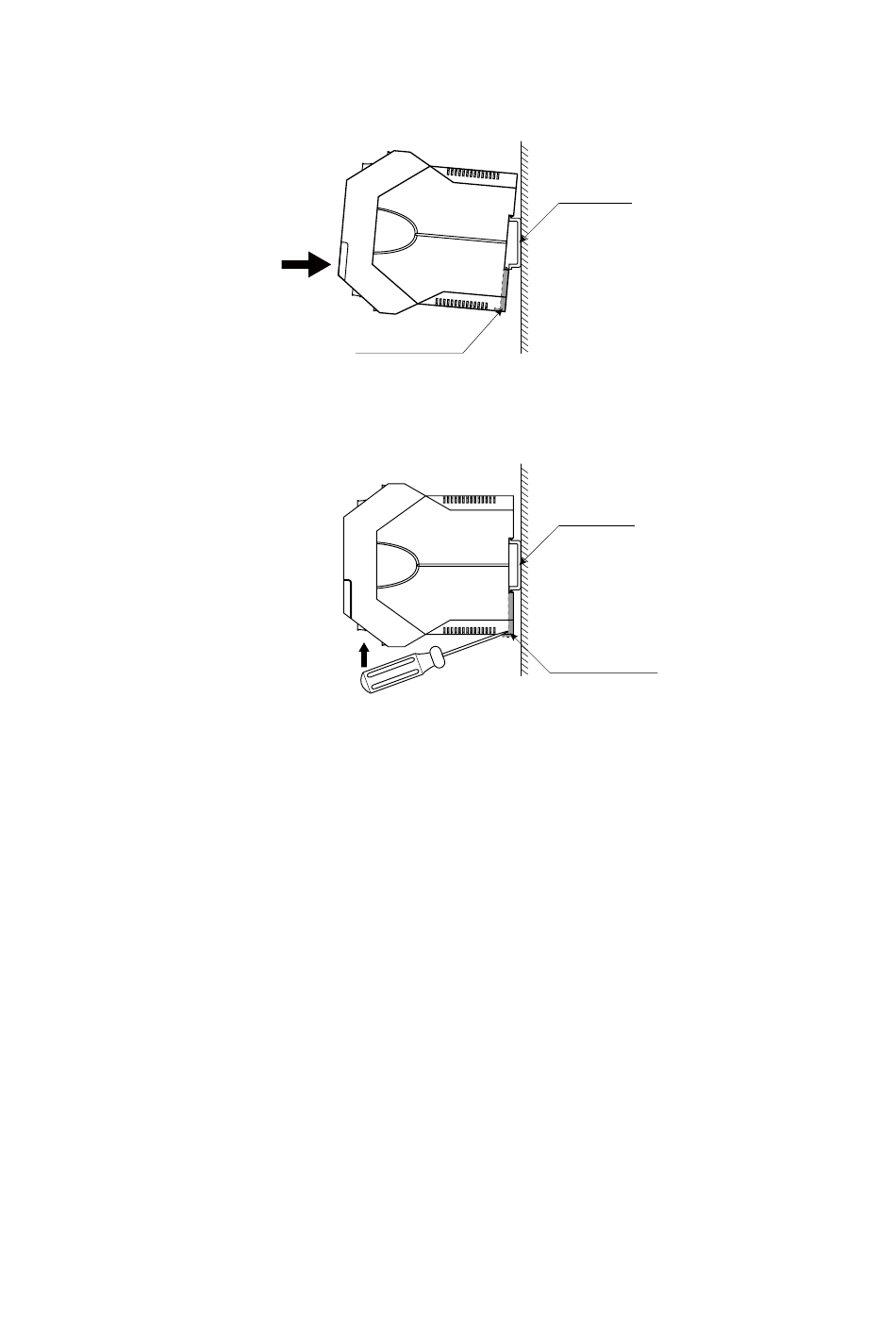

■ DIN RAIL MOUNTING
Set the unit so that its DIN rail adaptor is at the bottom. Position the upper hook at the rear side of the unit on the DIN rail
and push in the lower.
■ REMOVAL
Push down the DIN rail adaptor utilizing a minus screwdriver and pull.
Spring Loaded
DIN Rail Adaptor
M3LDY OPERATING MANUAL EM-2664-B Rev.0
DIN Rail
35mm wide
DIN Rail
35mm wide
Spring Loaded
DIN Rail Adaptor
23
