8.4 TERMINAL CONNECTIONs

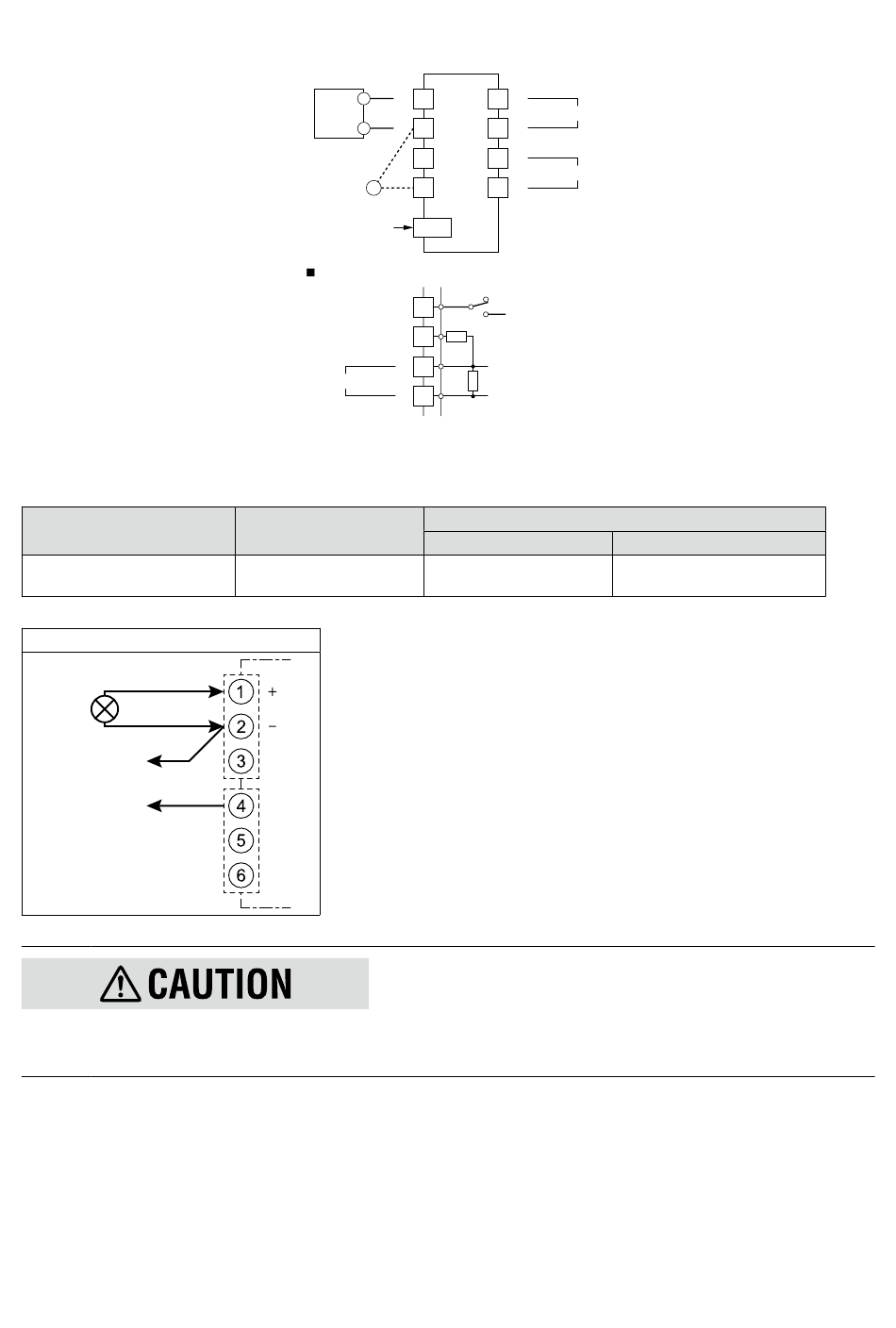

8.4.1 WIRING INPUT

Connect a 2-wire transmitter.
OUTPUT VOLTAGE
24 – 28 V DC with no load
19 V DC minimum at 20 mA
Input
2-wire transmitter
+
+
Monitor
1 – 5 V DC
Calculate supply power to a 2-wire transmitter using minimum voltage 19 V DC at 20 mA DC load. The voltage after
deducting voltage drop by connected reception resistance and leadwire resistance from 19 V DC will be supply power to
the 2-wire transmitter.
2-WIRE
TRANSMITTER
+
+
+
MONITOR
V
(1 – 5 V DC)
CONFIGURATOR
When Used as Isolator
No Connection
No Connection
+
INPUT
CURRENT RATING
≤ 22 mA DC
+
1
7
OUTPUT
2
8
+
3
11
POWER
4
12
JACK
1
2
250 Ω
4
3
24.9 Ω
SHORTCIRCUIT PROTECTION
CURRENT LIMITED
35 mA max.
M3LDY OPERATING MANUAL EM-2664-B Rev.0
PROTECTED TIME DURATION
No limit
21
