6. HOW TO OPEN THE COVER
Open the housing cover to set the DIP switches inside the cover.

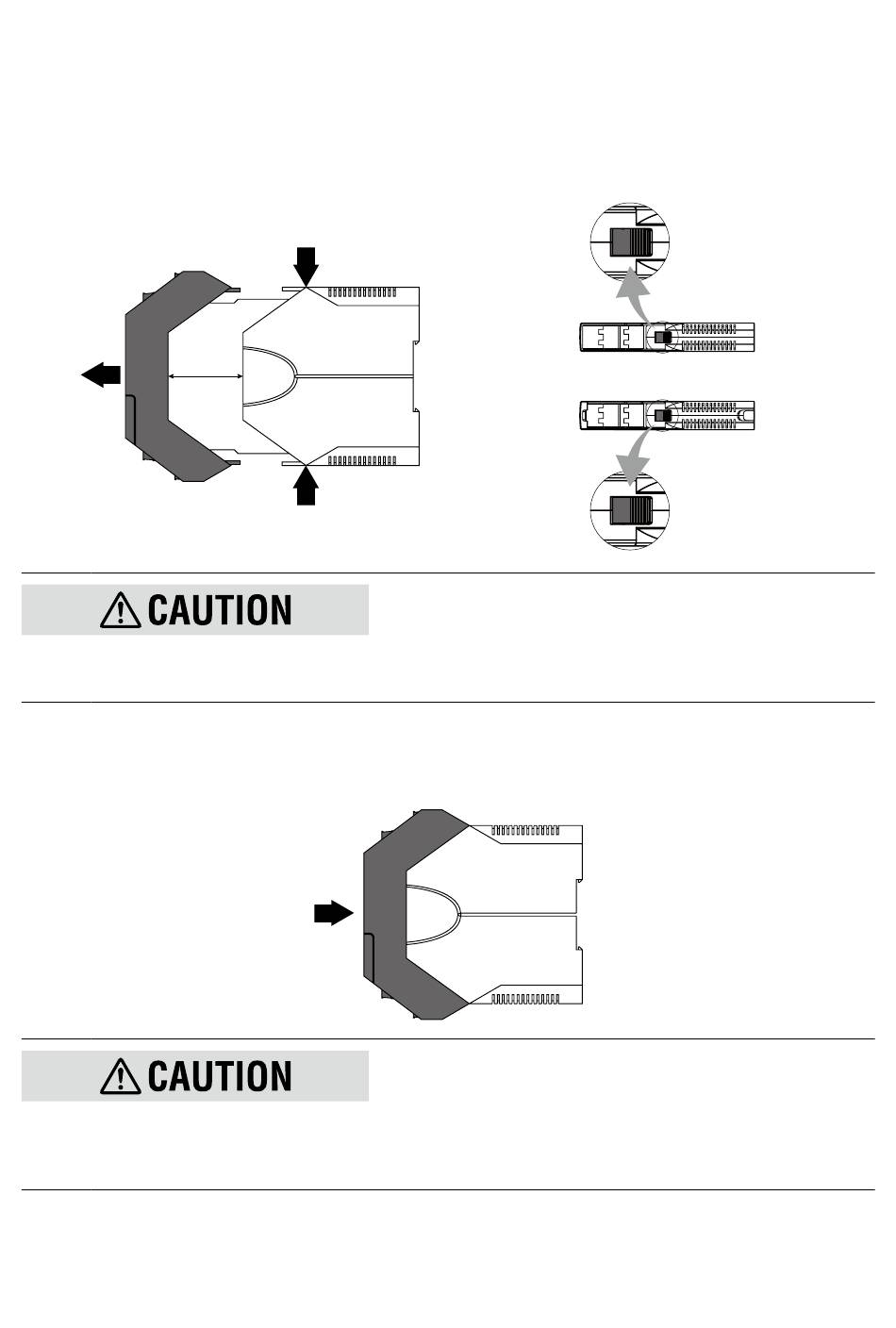

■ HOW TO OPEN THE COVER
(1) Hold the locks at the top and bottom of the unit.
(2) Slide the housing cover gently to open until it hits the latching inside the unit (approx. 3.5 cm).
Front
Approx. 3.5 cm
• Do not open the cover while the power or the input is applied.
• Do not touch the printed circuit board or the electronic components in opening the cover.
• Do not pull beyond where the cover is latched.
■ HOW TO CLOsE THE COVER
(1) Push the front to close the cover.
• Before closing the cover, make sure that there is not a conductive foreign material attached on the printed cir-cuit board.
• Be sure to close the cover after setting.
• Be careful not to get your hand or finger caught in the cover.
• Do not force the cover closed. Doing so may result in damage of the electronic components.
Lock
Lock
Front
M3LDY OPERATING MANUAL EM-2664-B Rev.0
■ Top
■ Bottom
Lock
Lock
14
