2.2 ADCx140EVM-PDK Hardware Settings
The TLV320ADCx140 evaluation module has several input configuration options and offers extensive
flexibility to allow the user to evaluate the device across multiple operation modes. The different operation
modes are highlighted in this section. The INxP and INxM pins of the TLV320ADCx140 can optionally
connect to an onboard microphone for quick evaluation, and can be optionally configured to bypass the
input decoupling capacitors for evaluating the functionality of the digital microphones or GPIOs.
shows the architecture of the inputs to the evaluation module.
J5
J15
J16
MK1
SBAU335 – May 2019
Submit Documentation Feedback
IN1P IN1M IN2P
J6 J7
IN1M
IN1P IN2P

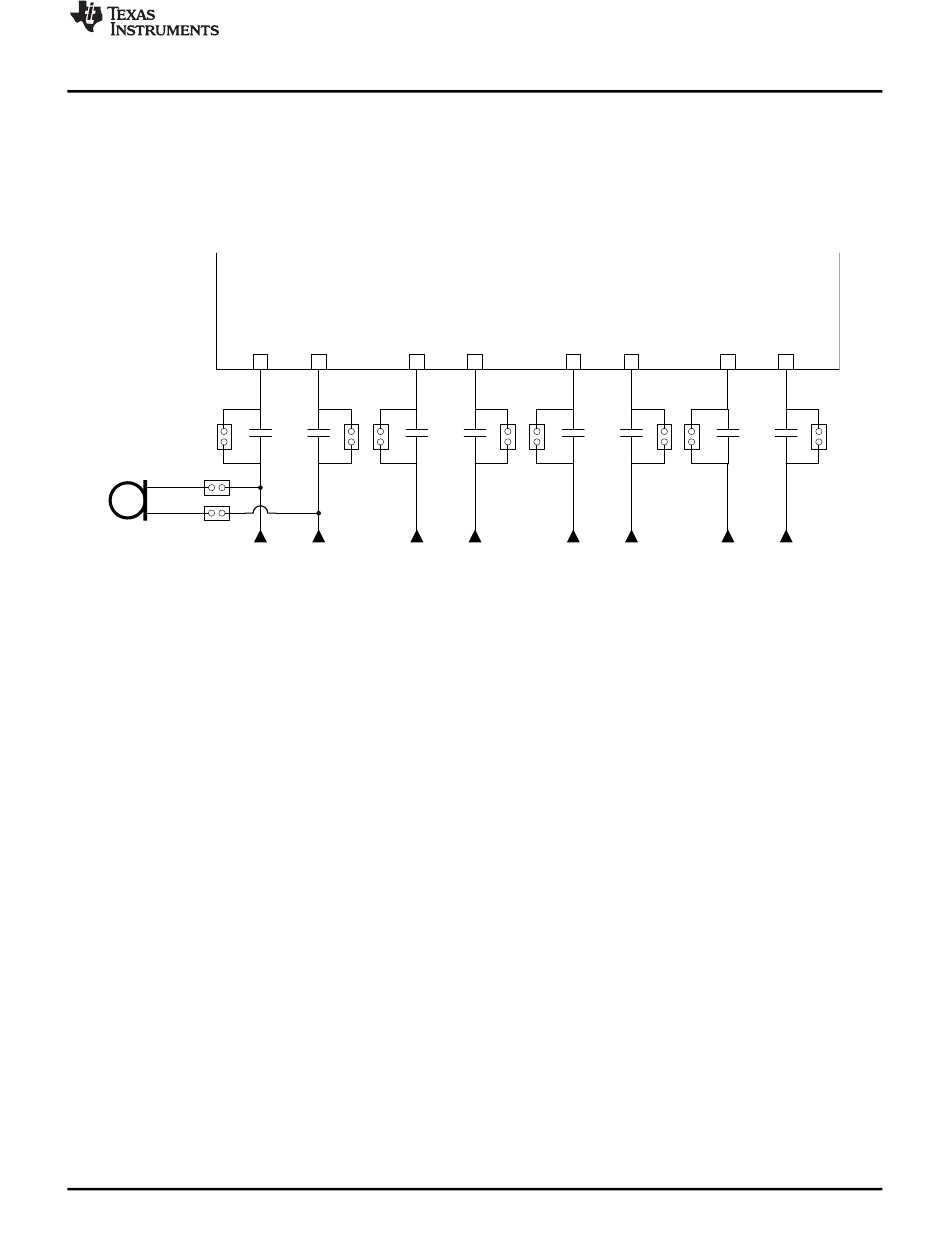

Figure 7. TLV320ADCx140EVB Input Architecture
