Hardware Overview
2.2.1 Line Inputs
For the line input configuration (shown in
provided through terminals J2 (IN1), J3 (IN2), J4 (IN3), and J5 (IN4). The input accepted in this mode is a
differential, 2-VRMS, full-scale audio signal. If a single-ended source is used, the 1-VRMS signal is
supported.

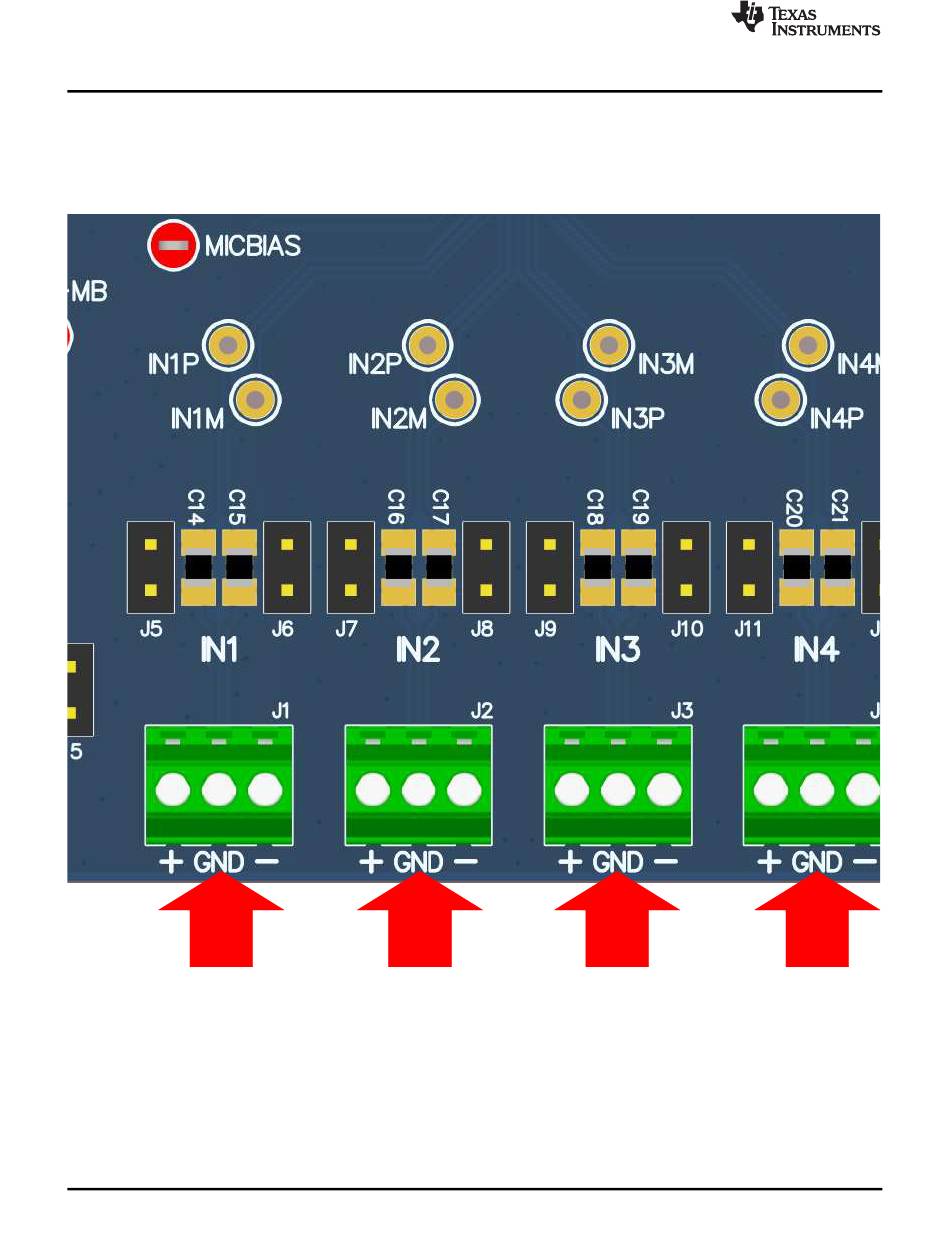

Figure 8. TLV320ADCx140EVB Connection for Line Input Application
10
ADCx140EVM-PDK
Figure 8), the TLV320ADCx140 captures the audio signal
