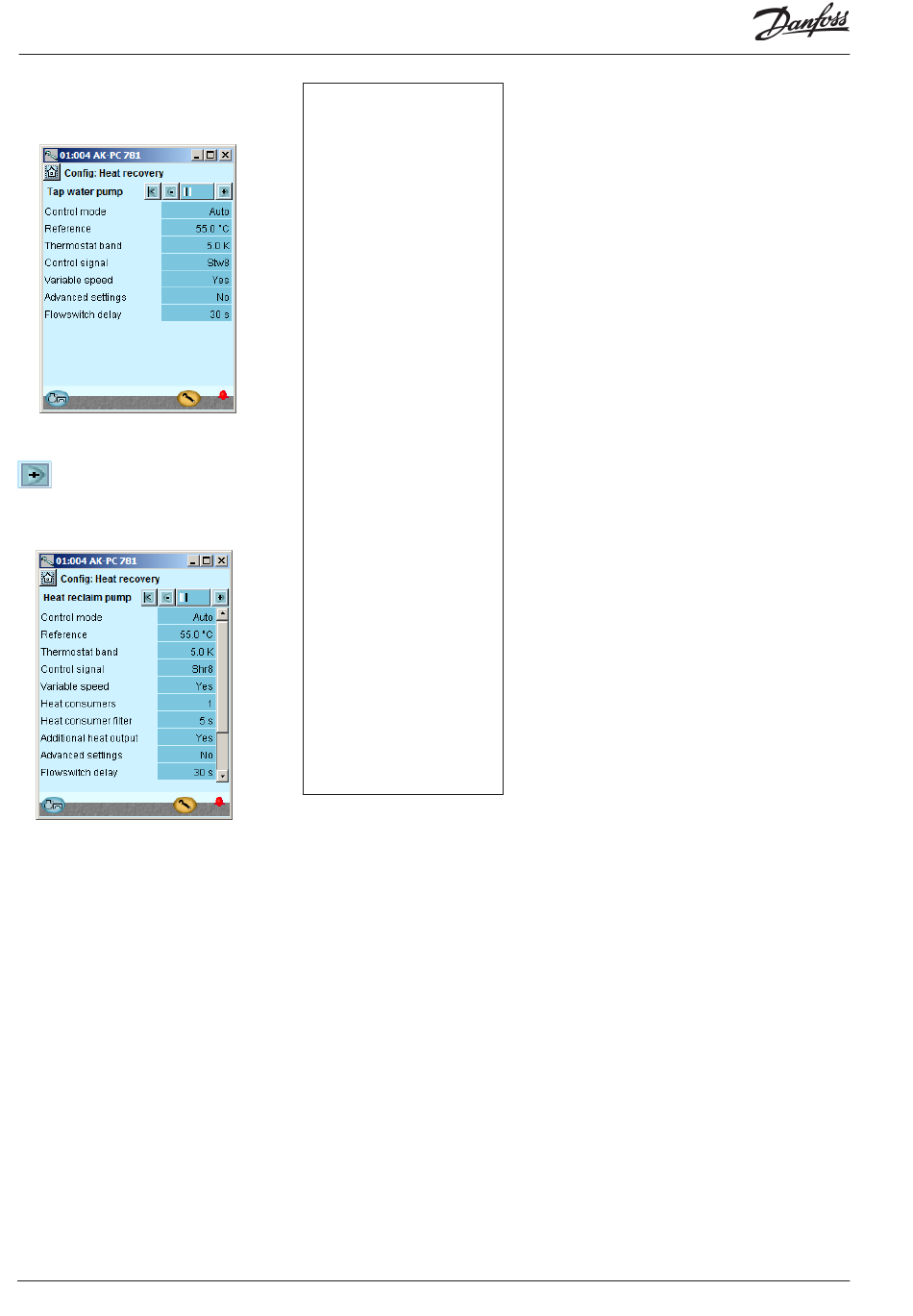

Configuration - continued
5. Setup values for tap water cir-
cuits
Press the +-button to go on to the
next page
6. Setup values for heating circuit
68
In our example we use the
settings shown
In our example we use the
settings shown
Capacity controller RS8GG602 © Danfoss 2015-03
5 - Tap water circuits (settings are available only when the
refrigerant selected is CO2, and shall be regulated on a
circuit for tap water).
Control mode: Here the regulation of the circuit can be
started (auto) and stopped (off ).
Reference: The required temperature for the sensor Stw8
can be set here.
Thermostat band: The acceptable temperature variation
around the reference:
Control signal. . Choose between:
Stw8: if regulation shall be done using only this sensor.
S4-S3: (and a Delta T value) if the controller shall regulate
using this temperature difference, until the Stw8 refer-
ence is met. (During S4-S3 regulation, the pump must
always be speed-regulated).
Stw8 + Stw8A: if two temperature sensors are installed in
the hot water receiver.
Variable speed: Here the pump type is selected. Either
variable speed or on/off.
Advanced settings: The following options are made avail-
able:
Flow switch: Must normally be selected for safety purposes
Kp: Amplification factor
Tn: Integration time
Min. pump speed: Pump speed for start/stop
Max. pump speed: The pump's max. permissible speed
Flowswitch delay: Duration of stable signal before the new
status is used in the regulation.
6 - Heat reclaim circuits (settings are available only when
the refrigerant chosen is CO2, and regulation shall be
done using a circuit for heating).
Control mode: Here the regulation of the circuit can be
started (auto) and stopped (off ).
Reference: Here the required temperature of sensor Shr8
(or Shr4) is set.
Thermostat band: The permissible temperature variation
around the reference:
Control signal: Choose between:
Shr8: if regulation shall be done using only this sensor.
S4-S3: (and a Delta T value) if the controller shall regulate
using this temperature difference, until the Shr8 refer-
ence has been met.
Shr4: regulation is done using this sensor, but Shr8 shall
also be installed. (During S4-S3 regulation or Shr4 regula-
tion the pump shall always be speed-regulated).
Variable speed: Here the pump type is selected. Either
variable speed or on/off.
Heat consumers: (Only when the condensation pressure
shall be increased during heat recovery). The number of
signals that can be received is set here. The signal can be
either 0-10 V or 0-5 V. (Settings under "Advanced" will be
used 0-100% for the signal).
Heat consumer filter
The highest of the received signals are made known over
this period
Additional heat output
The function will reserve a relay. The relay will pull in when
the signal for the heat removers reaches 95%.
Advanced settings: The following options are made avail-
able:
Flow switch: Must normally be selected for safety pur-
poses
Kp: Amplification factor
Tn: Integration time
Tc max HR: Value at which the bypass of the gas cooler
will terminate.
HR PUMP CONTROL
Min. pump speed: Pump speed for start/stop
Max. pump speed: The pump's max. permissible speed
Pump stop limit: Signal in % at which the pump is
stopped again
Pump start limit: Signal in % at which the pump is started
HP CONTROL
Pgc HR min: Basic reference for the pressure when exter-
nal voltage signal is received.
