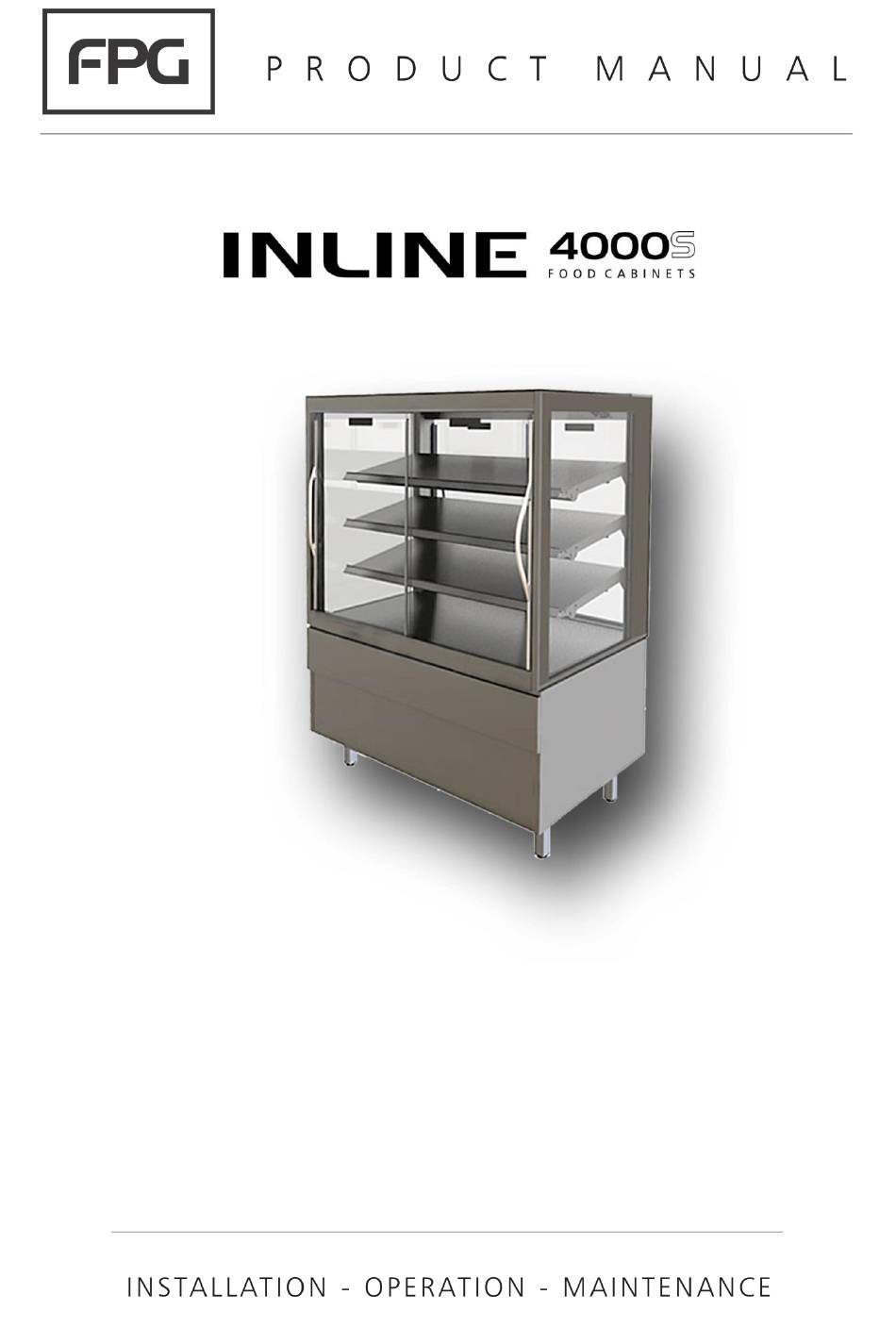

- Page 1 Ambient Cabinets Square Format...
- Page 2 Copyright © September 2018 Future Products Group Limited. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Future Products Group Ltd.
-
Page 3: Table Of Contents
Table of Contents INTRODUCTION ........................ 6 Welcome ................................6 Future Products Group (FPG) ........................6 Guidance and Help ............................ 6 Warranty ................................6 Warranty Period ............................6 Liability Exceptions ............................ 7 Specific Exclusions ............................ 7 Assessment ............................... 7 Time Limit ..............................7 Caution .............................. - Page 4 INSTALLATION ....................... 13 Regulations ..............................13 Compliance with Local Requirements ..................... 13 Setting Up ..............................13 Unpacking ............................... 13 Site Preparation............................13 Cabinet Preparation ..........................13 Shelf Trays .............................. 13 Grounding..............................14 Power Supply ............................14 Isolation ..............................14 Location ................................ 14 Ventilation..............................
- Page 5 ELECTRICAL CIRCUIT DIAGRAMS ................19 Model: IN 4A08 SQ ..........................19 Model: IN 4A12 SQ ..........................19 Model: IN 4A15 SQ ..........................20 SPARE PARTS ........................ 21 Cabinet Serial Number ..........................21 Location of Glass Parts ........................... 21 MECHANICAL DRAWINGS ..................... 22 Dimensions ..............................
-
Page 6: Introduction
INTRODUCTION Welcome AMBIENT CABINETS INTRODUCTION Future Welcome to the world of FPG! Our products are designed and engineered to Products give you the optimal performance that you deserve with innovative visual Group (FPG) merchandising appeal. We are confident that you will be delighted with your state of the art inline food service cabinet, and that it will become a valued appliance in your store. -
Page 7: Liability Exceptions
• Fair wear and tear. Assessment The liability under this warranty is dependent on an assessment by FPG, to determine the defect in workmanship or materials. Time Limit FPG does not guarantee that any service to be performed under this warranty will be carried out within any particular time limit. -
Page 8: Operation

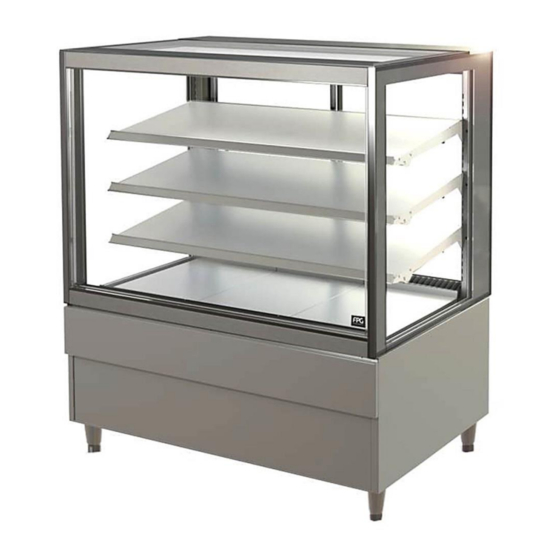

OPERATION Cabinet Layout AMBIENT CABINETS OPERATION 4000 Series The 4000 Series Square cabinets are available with either Cabinets fixed glass or sliding glass front doors, and sliding glass rear doors. The series includes Ambient, Heated and Refrigerated models. The cabinet lighting and temperature controls are on the back of the cabinet. -
Page 9: Preparation
Preparation AMBIENT CABINETS OPERATION Shelf Location All shelves are adjustable in height and can easily be moved and Ticketing up or down, to match product size. The movement is restricted to 50mm, because of the electric cables to the lights. For greater movement contact the manufacturer or supplier for advice, as electrical modifications may be required. -
Page 10: Trouble Shooting
TROUBLE SHOOTING FAULT POSSIBLE CAUSE REMEDY Door not in track Install door correctly in track Debris in track Clean door tracks (see cleaning) Doors are not sliding smoothly Apply food grade lubricant to Lack of lubricant door track The mains isolating switch on the wall, circuit breaker or Turn isolating switch circuit fuses are off at the power... -
Page 11: Cleaning
CLEANING Cautions AMBIENT CABINETS CLEANING Power ALWAYS TURN THE POWER SUPPLY OFF BEFORE CLEANING. Water THIS UNIT IS NOT WATERPROOF. DO NOT USE A WATER JET SPRAY TO CLEAN THE INTERIOR OR EXTERIOR OF THIS CABINET. Exterior AMBIENT CABINETS CLEANING Metal Surfaces Stainless steel or aluminium surfaces should be cleaned with hot soapy water or a good quality metal cleaning compound. -
Page 12: Interior
Interior AMBIENT CABINETS CLEANING Trays, Shelves Stainless steel trays, shelves, grills etc. should be cleaned with hot soapy water. & Air Grills Do not use abrasive pads or cleaners, as these may damage surfaces. Warning: Dishwasher detergents will damage any anodised aluminium parts. Routines AMBIENT CABINETS CLEANING... -
Page 13: Installation
INSTALLATION Regulations AMBIENT CABINETS INSTALLATION Compliance It is very important that your inline food cabinet is installed correctly and that the with Local operation is correct before use. Installation must comply with local electrical, Requirements health & safety and hygiene requirements. Setting Up AMBIENT CABINETS INSTALLATION... -
Page 14: Grounding
Setting Up cont. AMBIENT CABINETS - INSTALLATION Grounding WARNING: THIS APPLIANCE MUST BE GROUNDED TO EARTH The grounding lead, in the mains cable, must always be connected to ground. Terminals are also provided, to allow the cabinet to be bonded to a surge grounding conductor or to adjacent equipment. -
Page 15: Servicing
SERVICING Control Gear AMBIENT CABINETS SERVICING Location The electrical control gear is located in the top of the cabinet. Remove the top plate to access the control gear. The chassis has a light switch, power supplies for the lights and a protective fuse. -
Page 16: Door Seals
Door Seals AMBIENT CABINETS SERVICING Seal The doors should be removed to allow the old seals to be removed and the new Replacement ones fitted. See the Cleaning section for details. Sliding Doors Each sliding door has a seal between the door and the cabinet end panel. The seal slides into a groove in the door extrusion, and can be withdrawn and replaced, if damaged. -
Page 17: Specifications
SPECIFICATIONS Mechanical AMBIENT CABINETS SPECIFICATIONS CABINET MODEL IN 4A08S IN 4A12S IN 4A15S Height 1405 mm 1405 mm 1405 mm Width 803 mm 1203 mm 1503 mm Depth 774 mm 774 mm 774 mm Dry Weight 96 kg 130 kg 185 kg Cabinet Well Material Stainless steel... -
Page 18: Compliance
Young children should be supervised, to ensure that they do not play with the appliance. Improvements AMBIENT CABINETS SPECIFICATIONS Ongoing FPG reserves the right to change specifications and construction, as part of Development ongoing product improvement. Part No. 26123 Rev. F September 2018 - 18 - Inline 4000 Series Cabinets... -
Page 19: Electrical Circuit Diagrams
ELECTRICAL CIRCUIT DIAGRAMS Model: IN 4A08 SQ Inline 4000 Square Series, 800mm Ambient Cabinet Model: IN 4A12 SQ Inline 4000 Square Series, 1200mm Ambient Cabinet IN 4A08S/12S/15S - 19 - © Future Products Group... -
Page 20: Model: In 4A15 Sq
Circuit Diagrams continued Model: IN 4A15 SQ Inline 4000 Square Series, 1500mm Ambient Cabinet Part No. 26123 Rev. F September 2018 - 20 - Inline 4000 Series Cabinets... -
Page 21: Spare Parts
Number the label fixed to the control panel. This serial number will enable FPG to trace details of the build specification of your particular cabinet, and hence ensure that spare parts are fully compatible. To satisfy warranty conditions, and ensure optimum performance, use only FPG supplied spare parts. -
Page 22: Mechanical Drawings
MECHANICAL DRAWINGS Dimensions AMBIENT CABINETS MECHANICAL DRAWINGS IN-4A08S/12S/15S Fixed Front Part No. 26123 Rev. F September 2018 - 22 - Inline 4000 Series Cabinets... -
Page 23: In-4A08S/12S/15S Sliding Front Door
IN-4A08S/12S/15S Sliding Front Door Cabinet Sizes The drawings show the common overall dimensions for 800mm, 1200mm and 1500mm cabinets. IN 4A08S/12S/15S - 23 - © Future Products Group... - Page 24 Part No. 26123 Rev. F September 2018 For full contact details please visit the Contacts page on FPGWORLD.COM or email us at support@fpgworld.com In line with policy to continually develop and improve its products, Future Products Group reserves the right to change specifications and design without notice. AUSTRALIA CHINA | ASIA EUROPE...
