FPG INLINE 3000C Series Product Manual

Ambient cabinets, curved format
Hide thumbs Also See for INLINE 3000C Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Ambient Cabinets
Curved Format

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INLINE 3000C Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FPG INLINE 3000C Series

Summary of Contents for FPG INLINE 3000C Series

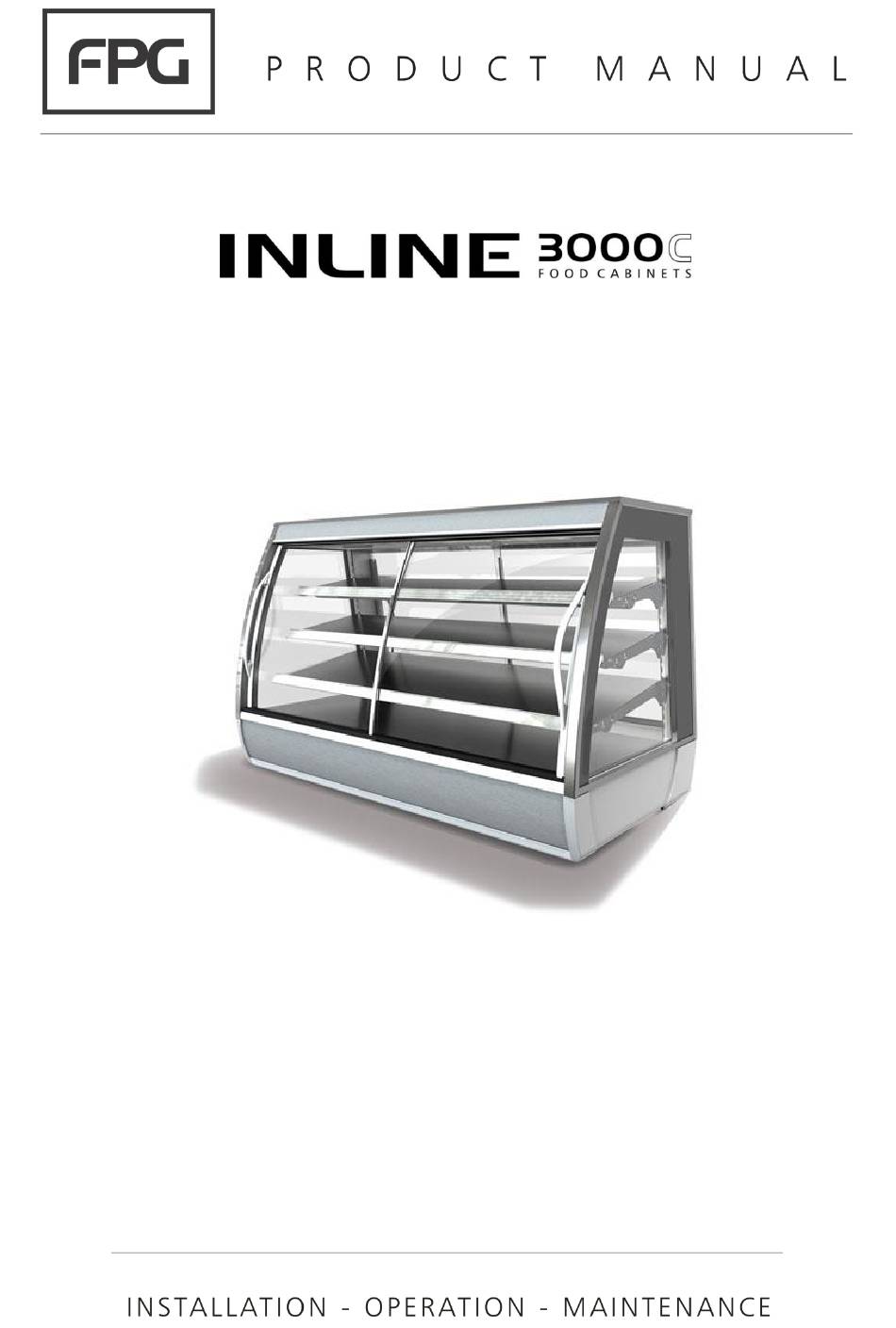

  • Page 1 Ambient Cabinets Curved Format...
  • Page 2 Copyright © September 2018 Future Products Group Limited. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Future Products Group Ltd.

  • Page 3: Table Of Contents

    Table of Contents INTRODUCTION ........................ 6 Welcome ................................6 Future Products Group (FPG) ........................6 Guidance and Help ............................ 6 Warranty ................................6 Warranty Period ............................6 Liability Exceptions ............................ 7 Specific Exclusions ............................ 7 Assessment ............................... 7 Time Limit ..............................7 Caution ..............................
  • Page 4 INSTALLATION ....................... 14 Regulations ..............................14 Compliance with Local Requirements ..................... 14 Setting Up ..............................14 Unpacking ............................... 14 Site Preparation............................14 Cabinet Preparation ..........................14 Shelf Trays .............................. 14 Grounding..............................15 Power Supply ............................15 Isolation ..............................15 Location ................................ 15 Ventilation..............................
  • Page 5 ELECTRICAL CIRCUIT DIAGRAMS ................21 Model: IN 3A06............................21 Model: IN 3A08............................21 Model: IN 3A12............................22 Model: IN 3A15............................22 SPARE PARTS ........................ 23 Cabinet Serial Number ..........................23 MECHANICAL DRAWINGS ..................... 25 Dimensions ..............................25 IN-3A06 ..............................25 IN-3A08/12/15 ............................

  • Page 6: Introduction

    INTRODUCTION Welcome AMBIENT CABINETS INTRODUCTION Future Welcome to the world of FPG! Our products are designed and engineered to Products give you the optimal performance that you deserve with innovative visual Group (FPG) merchandising appeal. We are confident that you will be delighted with your state of the art inline food service cabinet, and that it will become a valued appliance in your store.

  • Page 7: Liability Exceptions

    • Fair wear and tear. Assessment The liability under this warranty is dependent on an assessment by FPG, to determine the defect in workmanship or materials. Time Limit FPG does not guarantee that any service to be performed under this warranty will be carried out within any particular time limit.

  • Page 8: Operation

    OPERATION Cabinet Layout AMBIENT CABINETS OPERATION 3000 Series The 3000 Series cabinets are available with Cabinets either fixed glass or sliding glass front doors, and sliding glass rear doors. The exception is the 600mm Ambient cabinet, which has hinged rear doors. The series includes Ambient, Heated and Refrigerated models.

  • Page 9: Preparation

    Preparation AMBIENT CABINETS OPERATION Shelf Location All shelves are adjustable in height and can easily be and Ticketing moved up or down, to match product size. If shelf lights are fitted, the movement is restricted to 50mm, because of the electric cables to the lights. For greater movement contact the manufacturer or supplier for advice, as electrical modifications may be required.

  • Page 10: Turn On Lights

    Preparation cont. AMBIENT CABINETS - OPERATION Turn on Lights When ready for service, turn on the cabinet lights. Ventilation The cabinet is ventilated via louvers in the control panel, above the rear doors. If the louvers are blocked, heat from the lights will raise the internal temperature of the cabinet.

  • Page 11: Trouble Shooting

    TROUBLE SHOOTING FAULT POSSIBLE CAUSE REMEDY Door not in track Install door correctly in track Doors are not sliding smoothly Debris in track Clean door tracks (see cleaning) Apply food grade lubricant to Lack of lubricant door track The mains isolating switch on Turn isolating switch circuit the wall, circuit breaker or breaker or fuses on...

  • Page 12: Cleaning

    CLEANING Cautions AMBIENT CABINETS CLEANING Power ALWAYS TURN THE POWER SUPPLY OFF BEFORE CLEANING. Water THIS UNIT IS NOT WATERPROOF. DO NOT USE A WATER JET SPRAY TO CLEAN THE INTERIOR OR EXTERIOR OF THIS CABINET. Exterior AMBIENT CABINETS CLEANING Metal Surfaces Stainless steel or aluminium surfaces should be cleaned with hot soapy water or a good quality metal cleaning compound.

  • Page 13: Interior

    Interior AMBIENT CABINETS CLEANING Trays, Shelves Stainless steel trays, shelves, grills etc. should be cleaned with hot soapy water. & Air Grills Do not use abrasive pads or cleaners (e.g. Scotchbrite pads or Jif), as these may damage surfaces. Warning: Dishwasher detergents will damage any anodised aluminium parts. Routines AMBIENT CABINETS CLEANING...

  • Page 14: Installation

    INSTALLATION Regulations AMBIENT CABINETS INSTALLATION Compliance It is very important that your inline food cabinet is installed correctly and that the with Local operation is correct before use. Installation must comply with local electrical, Requirements health & safety and hygiene requirements. Setting Up AMBIENT CABINETS INSTALLATION...

  • Page 15: Grounding

    Setting Up cont. AMBIENT CABINETS - INSTALLATION Grounding WARNING: THIS APPLIANCE MUST BE GROUNDED TO EARTH The grounding lead, in the mains cable, must always be connected to ground. A binding post is also provided adjacent to the control gear chassis, to allow the cabinet to be bonded to a surge grounding conductor or to adjacent equipment, should this be required.

  • Page 16: Livery

    Livery AMBIENT CABINETS INSTALLATION Custom Inserts The silver anodised extrusions incorporate grooves, which allow appropriately coloured or printed strips of decorative laminate to be inserted. The strips are held captive by the cabinet ends. The top strips can be easily slid upwards into the top groove, and then down into the bottom one.

  • Page 17: Servicing

    SERVICING Control Gear AMBIENT CABINETS SERVICING Location The electrical control gear is located in the top of the cabinet. Remove the top plate to access the control gear. The chassis has a light switch, power supplies for the lights and a protective fuse. The 600 cabinet also has an extractor fan.

  • Page 18: Door Seals

    Door Seals AMBIENT CABINETS SERVICING Seal The doors should be removed to allow the old seals to be removed and the new Replacement ones fitted. See the Cleaning section for details. Sliding Doors Each sliding door has a seal between the door and the cabinet end panel. The seal slides into a groove in the door extrusion, and can be withdrawn and replaced, if damaged.

  • Page 19: Specifications

    SPECIFICATIONS Mechanical AMBIENT CABINETS SPECIFICATIONS CABINET MODEL IN 3A06 IN 3A08 IN 3A12 IN 3A15 Height 767 mm 761 mm 761 mm 761 mm Width 593 mm 803 mm 1203 mm 1503 mm Depth 663 mm 663 mm 663 mm 663 mm Dry Weight 55 kg...

  • Page 20: Compliance

    Young children should be supervised, to ensure that they do not play with the appliance. Improvements AMBIENT CABINETS SPECIFICATIONS Ongoing FPG reserves the right to change specifications and construction, as part of on- Development going product improvement. Part No.26117 Rev. F September 2018 - 20 - Inline 3000 Series Cabinets...

  • Page 21: Electrical Circuit Diagrams

    ELECTRICAL CIRCUIT DIAGRAMS Model: IN 3A06 Inline 3000 Series, 600mm Ambient Cabinet Model: IN 3A08 Inline 3000 Series, 800mm Ambient Cabinet IN 3A06/08/12/15 - 21 - © Future Products Group...

  • Page 22: Model: In 3A12

    ELECTRICAL CIRCUIT DIAGRAMS, Continued Model: IN 3A12 Inline 3000 Series, 1200mm Ambient Cabinet Model: IN 3A15 Inline 3000 Series, 1500mm Ambient Cabinet Part No.26117 Rev. F September 2018 - 22 - Inline 3000 Series Cabinets...

  • Page 23: Spare Parts

    Number the label fixed to the control panel. This serial number will enable FPG to trace details of the build specification of your particular cabinet, and hence ensure that spare parts are fully compatible. To satisfy warranty conditions, and ensure optimum performance, use only FPG supplied spare parts.
  • Page 24 Spare Parts Continued Part Description FPG Part No. LH End Glass Kit (viewed from back of cabinet) 62709 RH End Glass Kit (viewed from back of cabinet) 62710 Rear Swing Door SG (600 cabinets only) 66965 Front Inner Curved Sliding Door (600 cabinets)

  • Page 25: Mechanical Drawings

    MECHANICAL DRAWINGS Dimensions AMBIENT CABINETS MECHANICAL DRAWINGS IN-3A06 IN 3A06/08/12/15 - 25 - © Future Products Group...

  • Page 26: In-3A08/12/15

    Dimensions cont. AMBIENT CABINETS - MECHANICAL DRAWINGS IN-3A08/12/15 Part No.26117 Rev. F September 2018 - 26 - Inline 3000 Series Cabinets...

  • Page 27: Cabinet Variants

    Dimensions cont. AMBIENT CABINETS - MECHANICAL DRAWINGS Cabinet The drawings show the common overall dimensions for 800mm, 1200mm and Variants 1500mm cabinets. The cabinets can have a single fixed front glass, in place of the twin sliding doors shown. Livery Top Insert 539 / 749 / 1149 / 1449 mm long x 50 mm wide Colour / Text...

  • Page 28: Bench Cut-Outs

    Bench Cut-outs AMBIENT CABINETS MECHANICAL DRAWINGS In Bench Remove the decorative end panels from the base, to allow in bench mounting. Mounting The following diagram shows the aperture dimensions, which will allow the cabinet well to enter the bench. The cabinet deck trays will then be just above bench height.
  • Page 29 IN 3A06/08/12/15 - 29 - © Future Products Group...
  • Page 30 Part No.26117 Rev. F September 2018 - 30 - Inline 3000 Series Cabinets...
  • Page 31 IN 3A06/08/12/15 - 31 - © Future Products Group...
  • Page 32 Part No.26117 Rev. F September 2018 For full contact details please visit the Contacts page on FPGWORLD.COM or email us at support@fpgworld.com In line with policy to continually develop and improve its products, Future Products Group reserves the right to change specifications and design without notice. AUSTRALIA CHINA | ASIA EUROPE...
