- Page 1 Food & Beverage Cabinet...
- Page 2 Future Products Group Ltd. Part No. 22958 Rev. P June 2017 - 2 - Fusion, Food & Beverage Cabinet...
-
Page 3: Table Of Contents
Table of Contents INTRODUCTION ......................... 7 Welcome ................................7 Future Products Group (FPG) ........................7 Guidance and Help ............................. 7 Warranty ................................7 Warranty Period ............................7 Liability Exceptions ............................. 8 Specific Exclusions ............................. 8 Assessment ..............................8 Time Limit ..............................8 Caution ............................... - Page 4 Power Supply ............................18 Earthing ..............................18 Equipotential Bonding ..........................18 Location ................................19 Ventilation ..............................19 Access ..............................19 Draughts ..............................19 Level Site ..............................19 Part No. 22958 Rev. P June 2017 - 4 - Fusion, Food & Beverage Cabinet...
- Page 5 XR40CX Start a Manual Defrost ......................28 XR40CX Programming Mode ........................28 XR40CX The Hidden Menu ........................29 XR40CX Locking and Unlocking the Keyboard ..................29 FPG Settings ............................30 XR40CX Hot Key ............................. 31 XR40CX Alarm Signals ..........................32 XR40CX Alarm Recovery ......................... 32 XR40CX Other Messages ........................
- Page 6 On-going Development ..........................35 ELECTRICAL CIRCUIT DIAGRAM .................. 36 Model: IN-FUS-HC10-A004 ........................36 SPARE PARTS ......................... 37 Cabinet Serial Number ..........................37 MECHANICAL DRAWINGS ....................38 IN-FUS-HC10-A004..........................38 Part No. 22958 Rev. P June 2017 - 6 - Fusion, Food & Beverage Cabinet...
-
Page 7: Introduction
INTRODUCTION Welcome COMBINED FOOD & BEVERAGE CABINETS INTRODUCTION Future Welcome to the world of FPG! Our products are designed and engineered to Products give you the optimal performance that you deserve with innovative visual Group (FPG) merchandising appeal. We are confident that you will be delighted with your state of the art door-less bottle cooler, and that it will become a valued appliance in your store. -
Page 8: Liability Exceptions
Fair wear and tear. Assessment The liability under this warranty is dependent on an assessment by FPG, to determine the defect in workmanship or materials. Time Limit FPG does not guarantee that any service to be performed under this warranty will be carried out within any particular time limit. -
Page 9: Operation

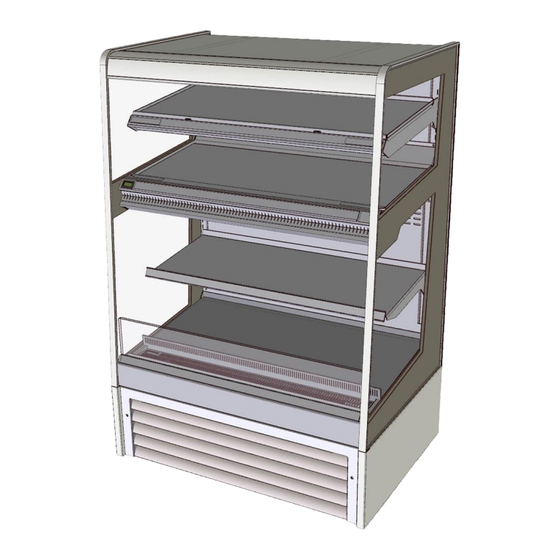

COMBINED FOOD & BEVERAGE CABINETS OPERATION Fusion Series The Fusion Series cabinets are open fronted with closed backs. Cabinets The upper section of the cabinet is heated and the lower section is refrigerated. Although the combined cabinet is constructed as a single unit, each half is electrically independent, with its own power supply cable and plug. -
Page 10: Controls
Heated Section The mains switch controls both heating and Controls lighting. The thermostat for the heated section is on the back of the cabinet. Part No. 22958 Rev. P June 2017 - 10 - Fusion, Food & Beverage Cabinet... -
Page 11: Preparation
Shelves The shelf positions are factory set to achieve correct temperature distribution. Positions Consult FPG if product sizes require shelves to be moved. Ticketing can be inserted along the front of each shelf. Shelf Loading The maximum loading of any shelf must not exceed 15kg of evenly distributed products. -
Page 12: Operational Routines
Specialist disposal procedures are required for the safe removal of refrigerant Disposal gasses and potentially flammable foam materials. Pentane, Dimethyl Ether, Isobutene, Butane and Propane may be present. Part No. 22958 Rev. P June 2017 - 12 - Fusion, Food & Beverage Cabinet... -
Page 13: Trouble Shooting
TROUBLE SHOOTING FAULT POSSIBLE CAUSE REMEDY The mains switch is off, circuit Turn mains switch on and Heated section does not breaker or fuses are off at the check circuit breakers and operate power board fuses Heating element failed Check and replace Heated section temperature Incorrect thermostat setting Adjust (CW to increase temp) -
Page 14: Dixell Xr40Cx Alarm Responses
Clean condenser and condenser pre filter if fitted. Check condenser fan for correct operation. Check gas pressures, system may be over charged or low on refrigerant. Part No. 22958 Rev. P June 2017 - 14 - Fusion, Food & Beverage Cabinet... - Page 15 CLEANING Cautions COMBINED FOOD & BEVERAGE CABINETS CLEANING Power ALWAYS TURN THE POWER SUPPLY OFF BEFORE CLEANING. Water THIS UNIT IS NOT WATERPROOF. DO NOT USE A WATER JET SPRAY TO CLEAN THE INTERIOR OR EXTERIOR OF THIS CABINET. Exterior COMBINED FOOD &...
- Page 16 If the drains become blocked, and water cannot drain away, the evaporator cooling coils may be damaged by a build-up of ice. Part No. 22958 Rev. P June 2017 - 16 - Fusion, Food & Beverage Cabinet...
- Page 17 Routines COMBINED FOOD & BEVERAGE CABINETS CLEANING Schedules To maintain optimum performance, the following cleaning routine should be scheduled on a regular basis. Initially, the following cleaning should be scheduled monthly, but this period may be adjusted to match the environmental conditions. Condenser Remove the front grill to Radiator...
- Page 18 Cabinets will usually be earthed via the earth conductors in the three core mains leads of the refrigerated and heated cabinet sections. Equipotential An externally accessible terminal is also provided for bonding cabinets together Bonding and to earth. Part No. 22958 Rev. P June 2017 - 18 - Fusion, Food & Beverage Cabinet...
- Page 19 Location COMBINED FOOD & BEVERAGE CABINETS INSTALLATION Ventilation To assist ventilation, locate the cabinet at least 20mm away from a back wall. Do not block the front ventilation grill, as this will cause the cabinet to overheat. The maximum recommended operating ambient temperature is 32°C. Access The mains power points supplying the cabinet should be accessible, to allow the cabinet to be turned off in case of emergency.
-
Page 20: Servicing
The power supplies and driver modules are located on the control gear chassis, behind the heated section and below the refrigerated section. Continued on next page Part No. 22958 Rev. P June 2017 - 20 - Fusion, Food & Beverage Cabinet... -
Page 21: Heating
Heating COMBINED FOOD & BEVERAGE CABINETS SERVICING Heating Radiant heating Elements elements are used above the shelves, and the lower shelf is directly heated by a contact element. Temperature probes for the thermostat and thermometer are mounted above the upper shelf. Element To replace the upper radiant element, first remove the screws retaining the wire Replacement... -
Page 22: Control Gear
Remove the four screws retaining the lower side panel to access the interior of the chassis. Continued on next page Part No. 22958 Rev. P June 2017 - 22 - Fusion, Food & Beverage Cabinet... -
Page 23: Access To Condensing Unit Etc
Refrigeration cont. COMBINED FOOD & BEVERAGE CABINETS - SERVICING Access to The condenser Condensing unit and boil off Unit etc. element can be reached from the front and rear of the cabinet. Remove the fixing screws to open the cabinet back panel and to remove the front louvers. -
Page 24: Probe Locations
Take care to avoid trapping cables with the metalwork, when re-assembling Continued on next page Part No. 22958 Rev. P June 2017 - 24 - Fusion, Food & Beverage Cabinet... -
Page 25: Condensate Disposal
Refrigeration cont. COMBINED FOOD & BEVERAGE CABINETS - SERVICING Condensate The condensate disposal system Disposal consists of a water tray, a water level detector and a boil-off element with an over temperature cut-out. If the element fails, it may be replaced by springing it from the mounting bracket. -
Page 26: Temperature Regulator Xr40Cx
At the end of defrost dripping time is started, its length is set in the FSt parameter. With FSt =0 the dripping time is disabled Continued on next page Part No. 22958 Rev. P June 2017 - 26 - Fusion, Food & Beverage Cabinet... -
Page 27: Xr40Cx Key Functions
Refrigeration cont. COMBINED FOOD & BEVERAGE CABINETS - SERVICING XR40CX Key FUNCTION Functions To display target set point; in programming mode it selects a parameter or confirm an operation (DEF) To start a manual defrost (UP): To see the max. stored temperature; in programming mode it browses the parameter codes or increases the displayed value (DOWN): To see the min stored temperature;... -
Page 28: Xr40Cx Min & Max Recorded Temperature
15s without pressing a key. NOTE: the set value is stored even when the procedure is exited by waiting for the time-out to expire. Continued on next page Part No. 22958 Rev. P June 2017 - 28 - Fusion, Food & Beverage Cabinet... -
Page 29: Xr40Cx The Hidden Menu
Refrigeration cont. COMBINED FOOD & BEVERAGE CABINETS - SERVICING XR40CX The The hidden menu includes all the parameters of the instrument. Hidden Menu TO ENTER THE HIDDEN MENU Enter the Programming mode by pressing the keys for 3s, (the °C or °F LED starts blinking). -
Page 30: Fpg Settings
Refrigeration cont. COMBINED FOOD & BEVERAGE CABINETS - SERVICING FPG Settings Note that the following settings are Dixell factory defaults. Refer to the Specification section for the correct FPG settings for your cabinet. Dixell Default Label Name Range Default Setting... -
Page 31: Xr40Cx Hot Key
Refrigeration cont. COMBINED FOOD & BEVERAGE CABINETS - SERVICING Label Name Range Default Setting Dixell Default Settings cont. Differential for temperat. alarm recovery (0,1 °C÷25,5°C) (1 °F÷45°F) Temperature alarm delay 0 ÷ 255 min Delay of temperature alarm at start up 0 ÷... -
Page 32: Xr40Cx Alarm Signals
In programming mode: none parameter is present in Pr1 On the display or in dP2, dP3, dP4: the selected probe is not enabled No alarm is recorded. XR40CX Connections Part No. 22958 Rev. P June 2017 - 32 - Fusion, Food & Beverage Cabinet... -
Page 33: Specifications
SPECIFICATIONS Mechanical COMBINED FOOD & BEVERAGE CABINETS SPECIFICATIONS CABINET MODEL IN-FUS-HC10-A004 Cold Section Hot Section Height 1480 mm Width 1009 mm Depth 714 mm Levelling adjustment +30mm Dry Weight 230 kg Number of Shelves 1 + base 1 + base Display Area 0.7 m 0.72 m... -
Page 34: Cabinet Performance
Performance Controller Settings COMBINED FOOD & BEVERAGE CABINETS SPECIFICATIONS Application The following table specifies the settings for the Dixell XR40CX Controller which Specific are specifically for this FPG cabinet. Settings XR40CX Settings Parameter Description Setting Unit / Range Set Point... -
Page 35: Compliance
Asbestos PCBs (Oils containing polychlorinated biphenyl) Mercury Improvements COMBINED FOOD & BEVERAGE CABINETS SPECIFICATIONS On-going FPG reserves the right to change specifications and construction, as part of on- Development going product improvement. IN-FUS-HC10 - 35 - © Future Products Group... -
Page 36: Electrical Circuit Diagram
ELECTRICAL CIRCUIT DIAGRAM Model: IN-FUS-HC10-A004 1000 mm Open-front Food & Beverage Cabinet Part No. 22958 Rev. P June 2017 - 36 - Fusion, Food & Beverage Cabinet... -
Page 37: Spare Parts
When ordering spare parts, it is important to quote the Serial Number printed on Number the label fixed to the cabinet. This will enable FPG to trace details of the build specification of your particular cabinet, and hence ensure that spare parts are fully compatible. -
Page 38: Mechanical Drawings
MECHANICAL DRAWINGS IN-FUS-HC10-A004 Part No. 22958 Rev. P June 2017 - 38 - Fusion, Food & Beverage Cabinet... - Page 39 IN-FUS-HC10 - 39 - © Future Products Group...
- Page 40 Part No. 22958 Rev. P June 2017...
