Input Specifications
Inputs per Module
Rated Voltage
Operating Voltage Range
AC Frequency
Input Current
Maximum Input Current
Minimum ON Current
Maximum OFF Current
ON Voltage Level
OFF Voltage Level
OFF to ON Response
ON to OFF Response
Status Indicators
Commons
Output Specifications
Outputs per Module
Rated Voltage
Operating Voltage Range
Output Type
AC Frequency
Maximum Output Current
Minimum Load Current
Maximum Inrush Current
OFF to ON, ON to OFF Response
Status Indicators
Commons
Maximum Applicable Fuse
Sales 800-633-0405
8 (sink/source)
24VAC/VDC
20.4–27.6 VAC/VDC, Max 27.6 VAC, 30VDC
47–63 Hz
8mA @ 24VAC/VDC
10mA @ 27.6 VAC, 30VDC
2.5 mA
0.5 mA
>9.5 VDC, >8VAC
<4.5 VDC, <4VAC
AC: 10ms
DC: 6ms
AC: 20ms
DC: 10ms
Logic Side (8 points)
1 (8 points/common)
8
6–30 VDC
6–120 VAC
5–30 VDC
5–144 VAC
Relay, Form A (SPST)
47–63 Hz
1A / point, 8A / common for both AC and DC
1A / point, 8A / common for both is used with
ZIPLink Cable
5mA @ 5VDC
5A for 10ms
d 10 ms
Logic Side (8 points)
1 (8 points/common)
8A
1000

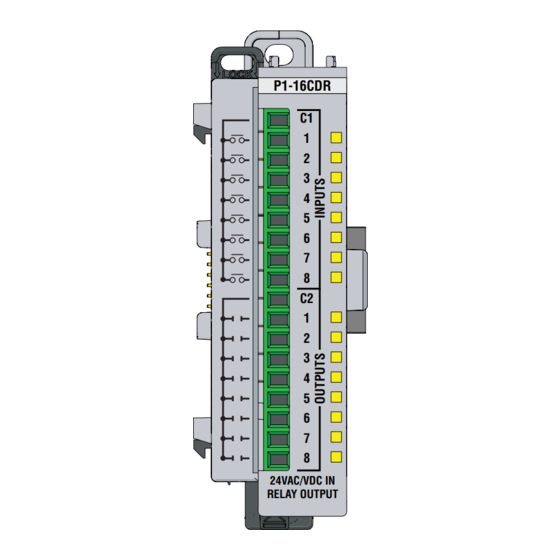

P1-16CDR Discrete Input / Relay
Output
P1-16CDR
The P1-16CDR Discrete Input / Relay Output
Module provides eight 24VAC/VDC inputs
C1
and eight relay outputs for use with the
1
Productivity1000 system.
2
3
4
5
Output Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 1
6
Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
7
QR Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
8
Wiring Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
C2
Schematic & Wiring Diagram . . . . . . . . . . . . . . . . . . . . 3
General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 4
1
Terminal Block Specifications . . . . . . . . . . . . . . . . . . . . 4
2
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3
4
5
6
7
8
24VAC/VDC IN
RELAY OUTPUT
Terminal Block sold separately, (see wiring options on page 3).
Warranty: Thirty-day money-back guarantee. Two-year limited
replacement (See www.productivity1000.com for details).
www.productivity1000.com
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Automationdirect.com Productivity 1000 P1-16CDR
Summary of Contents for Automationdirect.com Productivity 1000 P1-16CDR
- Page 1 Input Specifications Inputs per Module 8 (sink/source) 1000 Rated Voltage 24VAC/VDC Operating Voltage Range 20.4–27.6 VAC/VDC, Max 27.6 VAC, 30VDC AC Frequency 47–63 Hz P1-16CDR Discrete Input / Relay Input Current 8mA @ 24VAC/VDC Output Maximum Input Current 10mA @ 27.6 VAC, 30VDC P1-16CDR Minimum ON Current 2.5 mA...
- Page 2 Module Installation QR Code WARNING: Do not add or remove modules with field power applied. Step One: With latch in “locked” position, align P1-08TD1 P1-08TD1 connectors on the side of each module and stack by pressing together. Click indicates lock is engaged.
- Page 3 P1-16CDR Schematic and Wiring Diagram Wiring Options ZIPLink Feed Through Modules and Cables¹ Equivalent Input Circuit Internal Module Circuitry ZL-RTB20 24VAC 24VDC ZL-RTB20-1 Optical Isolator INPUT ZL-RTB20-1 ZL-RTB20 0.5 m (1.6 ft) cable ZL-P1-CBL18 1.0 m (3.3 ft) cable ZL-P1-CBL18-1 2.0 m (6.6 ft) cable ZL-P1-CBL18-2 Equivalent Output Circuit...
- Page 4 CE (EN 61131-2 EMC, EN 61010-1 and EN 61010-2-201 2.5 lb·in (0.28 N·m) Safety)* *Recommended Screw Driver TW-SD-MSL-1 *See CE Declaration of Conformance for details. Document Name Edition/Revision Date P1-16CDR-DS 3rd Edition 9/17/2019 Copyright 2018, AutomationDirect.com Incorporated/All Rights Reserved Worldwide www.productivity1000.com Tech Support 770-844-4200...
