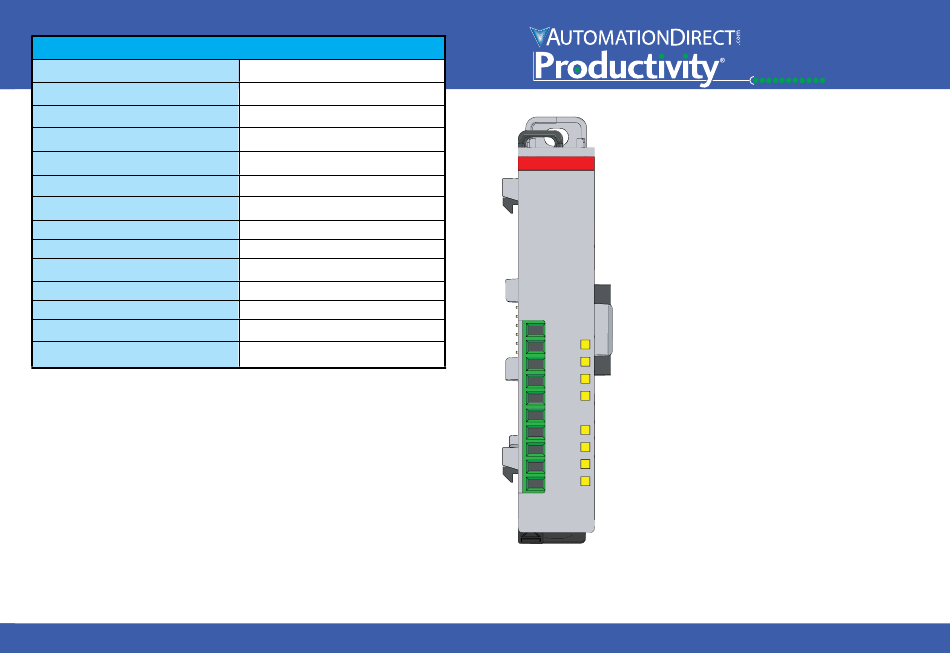

Automationdirect.com Productivity 1000 P1-08TD2 Manual

Output Specifications

Outputs per Module
Rated Voltage
Operating Voltage Range
Output Type
Maximum Output Current
Minimum Load Current
Maximum Leakage Current
On Voltage Drop
Maximum Inrush Current
OFF to ON, ON to OFF Response
Status Indicators
Commons
Maximum Applicable Fuse
External Power Supply Required
Sales 800-633-0405
8 sourcing
12–24 VDC
10.2–28.8 VDC
P-Channel MOSFET, open source
1A per point
1mA
0.3 mA @ 28.8 VDC
0.2 VDC @ 1A
4A for 50ms, 6A for 10ms
d0.5 ms
Logic Side (8 points)
1 non-isolated
8A
12–24 VDC (-15% / +20%) @ 22mA

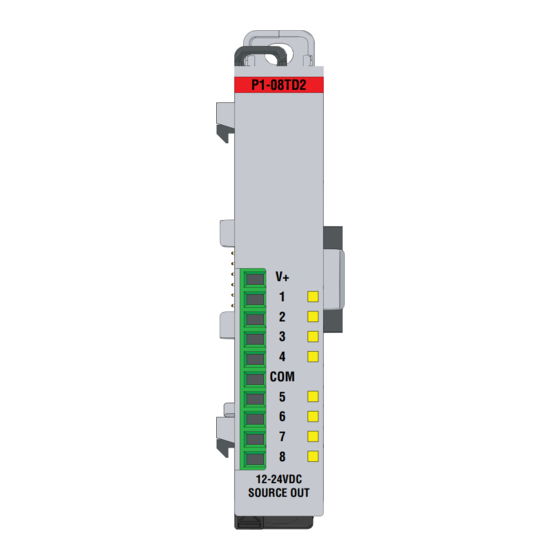

P1-08TD2 Sourcing DC Output
P1-08TD2
The P1-08TD2 DC Output Module provides
eight non-isolated outputs that source up to
1A per output from a 12–24 VDC supply for
use with the Productivity1000 system.
Output Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Qr Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
V+
Wiring Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Schematic & Wiring Diagram . . . . . . . . . . . . . . . . . . . . 3
1
General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 4
2
Terminal Block Specifications . . . . . . . . . . . . . . . . . . . . 4
3
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
4
COM
5
6
7
8
12-24VDC
SOURCE OUT
Terminal Block sold separately, (see wiring options on page 3).
Warranty: Thirty-day money-back guarantee. Two-year limited
replacement (See www.productivity1000.com for details).
