Output Specifications

Outputs per Module
Output Type
Voltage Rating
Operating Voltage Range
Maximum Output Current
Minimum Load Current
Maximum Leakage Current
On Voltage Drop
Maximum Inrush Current
OFF to ON, ON to OFF Response
Status Indicators
Commons Per Module
Maximum Applicable Fuse
External Power Supply Required
Sales 800-633-0405
15 sinking
N-channel MOSFET, open drain
3.3–24 VDC
2.9–26.4 VDC
1A per point / 8A per common
1mA
0.3 mA @ 30VDC
0.2 VDC @ 1A
4A for 50ms, 6A for 10ms
d0.5 ms
Logic Side (15 points)
2 non-isolated
8A
12–24 VDC (-15% / +20%) @ 22mA
P1-15TD1 Sinking DC Output
P1-15TD1 P1-15TD1

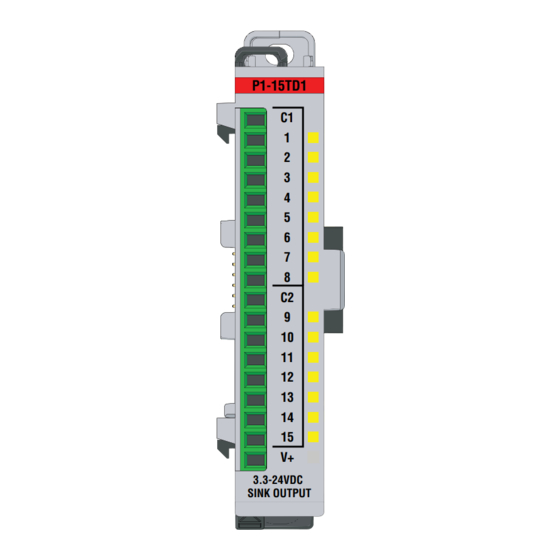

The P1-15TD1 DC Output Module provides
fifteen outputs that sink up to 1A per point
C1
from loads powered by 3.3–24 VDC for use
1
with the Productivity1000 system.
2
3
4
5
Output Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 1
6
Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
7
Qr Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
8
Wiring Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Schematic & Wiring Diagram . . . . . . . . . . . . . . . . . . . . 3
C2
General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 4
9
Terminal Block Specifications . . . . . . . . . . . . . . . . . . . . 4
10
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
11
12
13
14
15
V+
3.3-24VDC
SINK OUTPUT
Terminal Block sold separately, (see wiring options on page 3).
Warranty: Thirty-day money-back guarantee. Two-year limited
replacement (See www.productivity1000.com for details).
