Physical description of the FortiGate-5050 chassis

Physical description of the FortiGate-5050 chassis

FortiGate-5050 shelf alarm panel (SAP)

8
The FortiGate-5050 chassis is a 5U chassis that can be installed in a standard
19-inch rack. Table 1 describes the physical characteristics of the FortiGate-5050
chassis.
Table 1: FortiGate-5050 chassis physical description
Dimensions 8.75 x 17 x 15.5 in. (13.3 x 43.2 x 39.4 cm)
(H x W x D)
Weight 26.75 lb. (12.1 kg)
Operating environment Temperature: 32 to 104°F (0 to 45°C)
Relative humidity: 5 to 85% (Non-condensing)
Storage environment Temperature: -13 to 158 °F (-25 to 70°C)
Relative humidity: 5 to 95% (Non-condensing)
Power consumption Maximum: 1,135 W
Power input 2x redundant -48VDC to -58VDC
The FortiGate-5050 shelf alarm panel (SAP), located at the bottom of the
FortiGate-5050 front panel, provides LED indicators of FortiGate-5050 alarms, a
telco alarm connector, an alarm LED reset button, and console access to the
FortiGate-5050 shelf managers. The LED alarm indicators include critical, major,
and minor alarms as well as three user defined alarms.
The alarm LED reset button (RESET) on the shelf alarm panel activates the Alarm
Cutoff (ACO) state. When ACO is activated, the active alarm LEDs blink and all of
the alarm relays are deactivated.

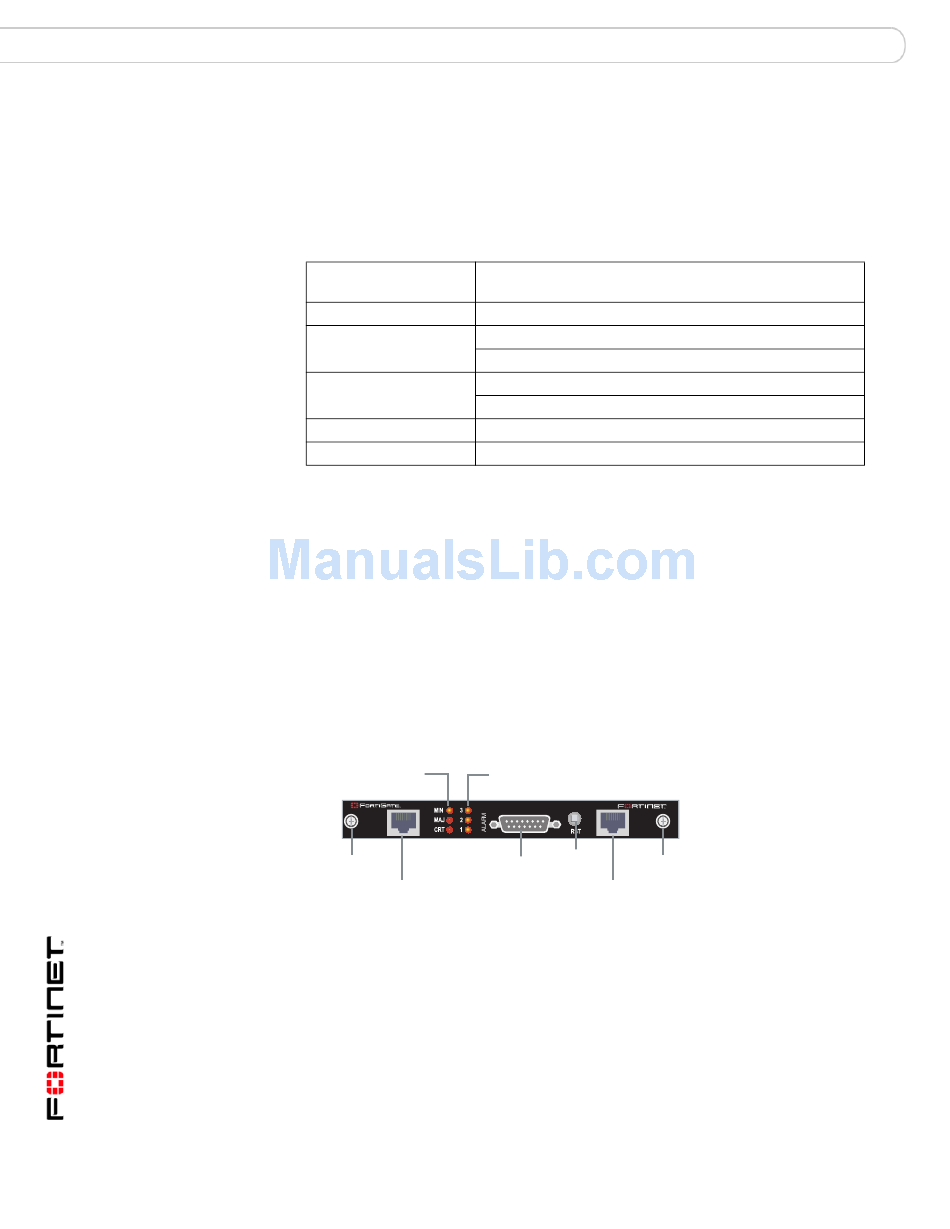

Figure 3: FortiGate-5050 shelf alarm panel front panel
Minor Alarm (MIN) (Amber)
Major Alarm (MAJ) (Red)
Critical Alarm (CRT) (Red)
5050SAP
SERIAL
1
Mounting
Knot
Serial 1 (Primary
Shelf Manager)
Table 2 lists and describes the FortiGate-5050 shelf alarm panel LEDs.
User 3 Alarm (Amber)
User 2 Alarm (Amber)
User 1 Alarm (Amber)
SERIAL
2
Alarm
Telco Alarm Mounting
LED Reset
Interface Knot
Button
Serial 1 (Secondary
Shelf Manager)
FortiGate-5050 chassis
