Connecting the FortiGate-5050 chassis to data center DC power and data center ground

Connecting a FortiGate-5050 power input connector to data center DC power

14
The following procedure describes how to connect one FortiGate-5050 power
input connector to data center DC power. For normal operation, only power input
connector A must be connected. For redundant DC power you can connect power
input connector B to a different DC power source.

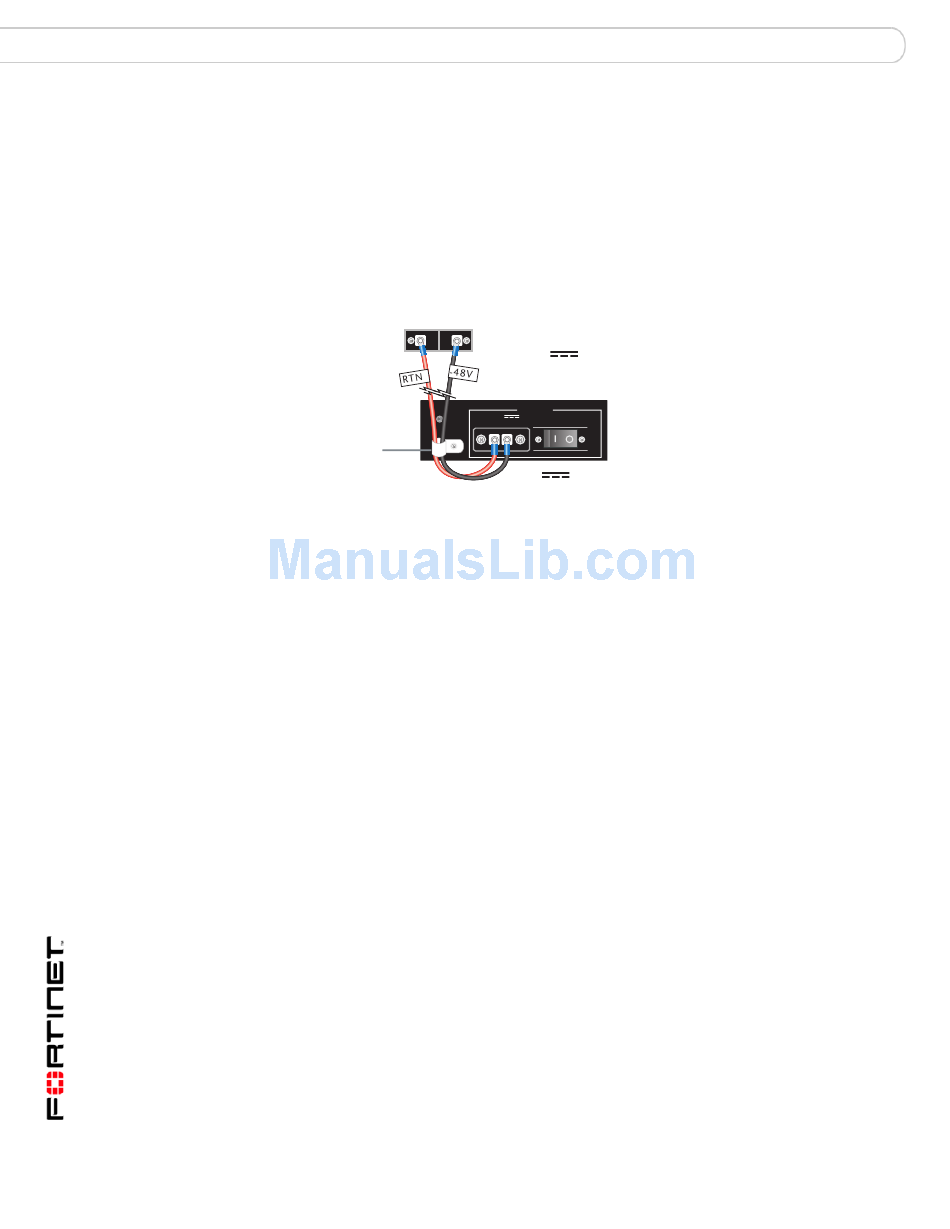

Figure 6: Connecting a FortiGate-5050 power input connector to data center DC
power
Data Center
Data Center
connector
RTN connector
RTN (positive)
red to Data
Center RTN
Power wire
fixture
Positive
(RTN)
(red)
To connect a FortiGate-5050 power input connector to data center DC power
You need the following tools and equipment to connect a FortiGate-5050 power
input connector to data center DC power:
• A number 2 Phillips screwdriver.
• An electrostatic discharge (ESD) preventive wrist or ankle strap with
connection cord.
• One black AWG-14 stranded wire with terminal lugs attached and labelled
-48V.
• One red AWG-14 stranded wire with terminal lugs attached and labelled RTN.
1 Attach the ESD wrist strap to your wrist and to an ESD socket or to a bare metal
surface on the chassis or frame.
2 Loosen the screws and remove the protection plate.
3 Insert the black -48V and red RTN wires through the power wire fixture (see
Figure 6).
4 Connect the black -48V power wire from the data center DC power source to the
terminal on the FortiGate-5050 power input connector labelled (-DC in).
5 Connect the red RTN return wire from data center RTN to the terminal on the
FortiGate-5050 power input connector labelled RTN.
6 Make sure the power wires are secured to the chassis using the power wire fixture
and tie wraps if required.
7 If required, label the black wire -48V.
8 If required, label the red wire RTN.
9 Re-attach the protection plate to the FortiGate-5050 power input connector.
-48VDC
-48V
(-DC in) black to
Data Center -48VDC
INPUT A
-48V
RTN (-DC IN)
24
AMP
-48
(-DC in)
(black)
