FortiGate-5050 chassis
FortiGate-5050 Chassis Guide
01-30000-0395-20070201
The FortiGate-5050 shelf managers control chassis power up and power down,
chassis power distribution, monitor chassis operating parameters, monitor and
control chassis cooling, and can signal alarms if the chassis encounters problems.
All FortiGate-5000 modules installed in the chassis communicate with the shelf
managers.
The FortiGate-5050 shelf managers are factory installed. In most cases users do
not have to install or configure the shelf managers.
Each shelf manager has two ethernet interfaces (ETH 0 and ETH 1). You can
connect to ETH 0 from the shelf manager front panel. ETH 1 connects to the
FortiGate-5050 backplane.
The shelf managers detect alarm conditions and communicate alarm signals to
the FortiGate-5050 shelf alarm panel. The shelf alarm panel also contains serial
interfaces for connecting to the shelf managers.
The shelf managers are hot swappable. You can remove a shelf manager by
opening the extraction lever until the hot swap LED starts blinking. When the hot
swap LED turns solid blue you can remove the shelf manager from the
FortiGate-5050 chassis.

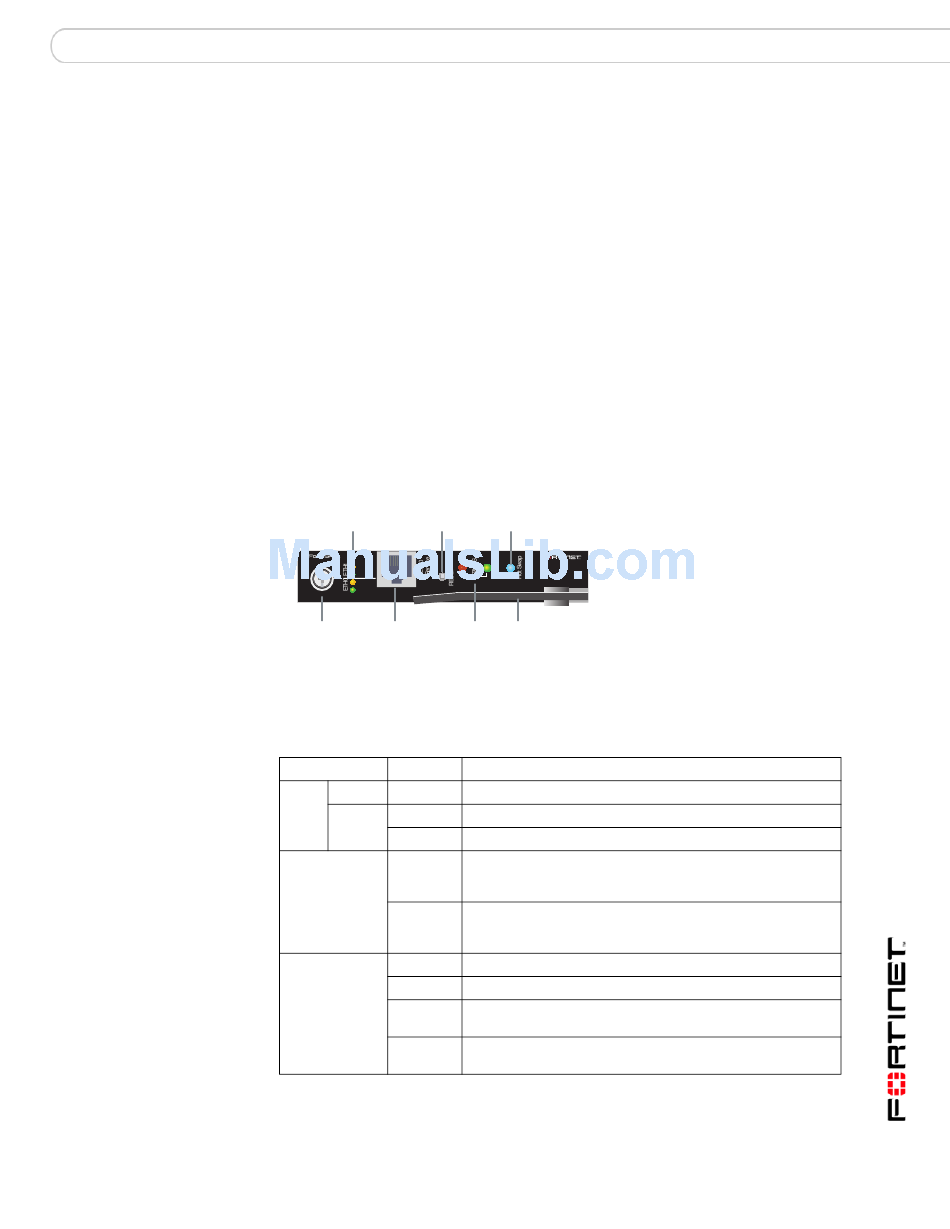

Figure 5: FortiGate-5050 shelf manager front panel
Reset
ETH 0 and 1 network
activity LEDs
Button
5000SM
10/100
link/Act
10/100
link/Act
Mounting ETH0 Status
Knot 100base-T LEDs
Ethernet
Table 5 lists and describes the FortiGate-5050 shelf manager LEDs.
Table 5: FortiGate-5050 shelf manager LEDs
LED State
ETH 0 10/100 Yellow
ETH 1
link/Act Green
Off
STATUS Green
Red
HOT SWAP Off
Blue
Long blink The shelf manager is starting up after being inserted into the
Short
blink
Hot Swap
LED
Extraction
lever
Description
The Ethernet interface is connected at 100 Mbps.
Blinking LED indicates network traffic.
No link.
This shelf manager is operating normally as the active shelf
manager. Usually the primary shelf manager operates as
the active shelf manager.
This shelf manager is operating normally as the backup
shelf manager. Usually the secondary shelf manager
operates as the standby shelf manager.
The shelf manager is not ready to be removed.
The shelf manager is ready to be removed.
chassis.
The shelf manager is shutting down in preparation for being
removed from the chassis.
FortiGate-5050 shelf manager
