FortiGate-5050 front panel

FortiGate-5050 front panel
6
Figure 1 shows the front of a FortiGate-5050 chassis. Two FortiSwitch-5003
modules are installed in slots 1 and 2. Three FortiGate-5001SX modules are
installed in slots 3, 4, and 5.
The FortiGate-5050 primary and secondary Shelf Managers and the Shelf Alarm
Panel (SAP) are also visible. The factory installed shelf alarm panel displays
alarms, provides a telco alarm interface, and also provides serial connections to
the shelf managers. The factory installed shelf managers provide power
distribution, cooling, alarms, and shelf status for the FortiGate-5050 chassis. For
more information about these components, see
(SAP)" on page 8 and

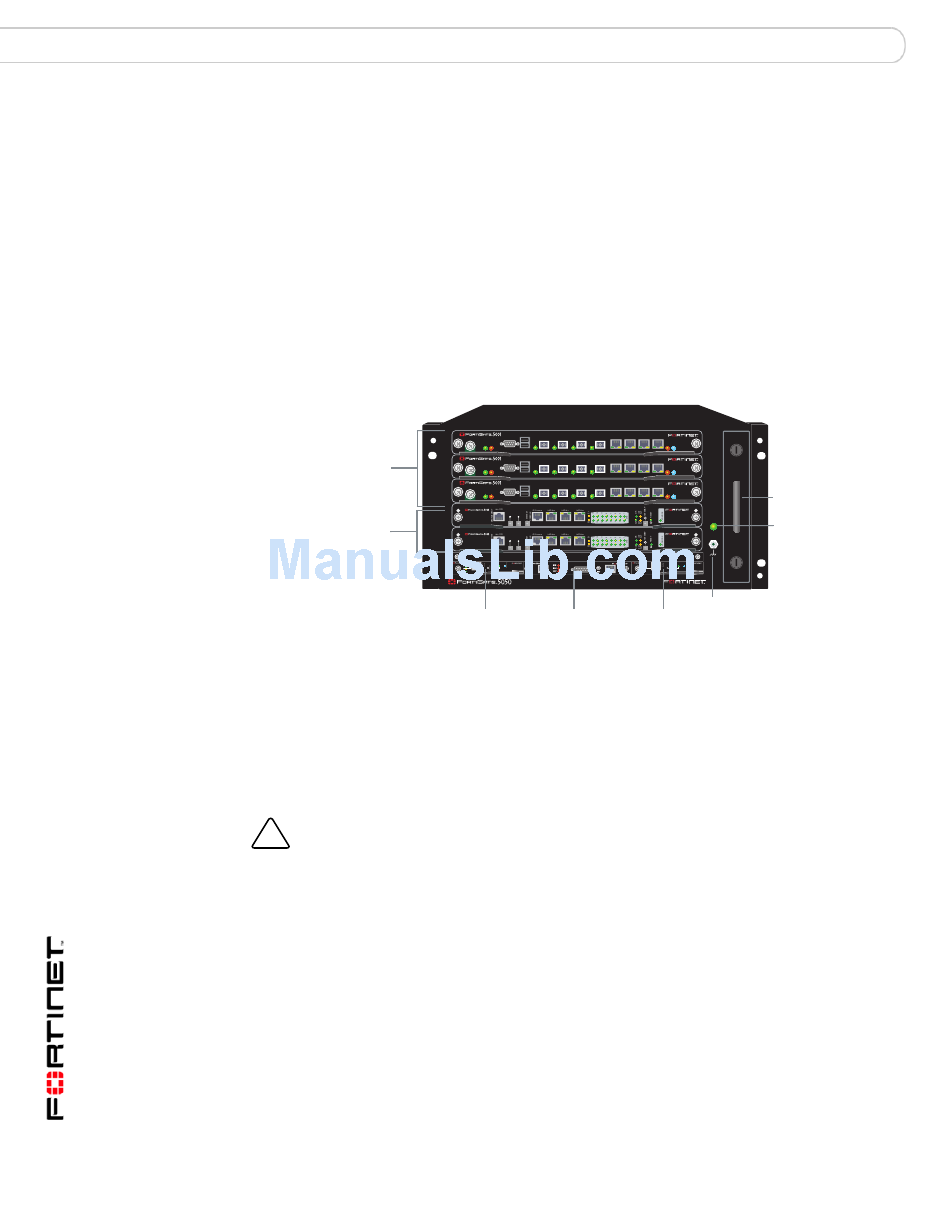

Figure 1: FortiGate-5050 front panel with FortiGate-5001SX and FortiSwitch-5003
modules installed
FortiGate-5001SX
modules
slots 3, 4,
and 5
FortiSwitch-5003
modules
slots 1 and 2
SMC
Shelf Manager
Also visible on the front of the FortiGate-5050:
• The location of the hot swappable FortiGate-5050 cooling fan tray behind
panel.
• Power LED.
• ESD socket, used for connecting an ESD wrist or ankle band when working
with the chassis.
Caution: Do not operate the FortiGate-5050 chassis with open slots on the front panel. For
!
optimum cooling performance and safety, the slots must contain a FortiGate-5000 series
module or an air baffle slot filler. As well the removable power supply panel must be
installed over the power connectors on the back of the chassis.
"FortiGate-5050 shelf manager" on page
USB 1 2 3 4 5
CONSOLE
5
PWR ACC
USB 1 2 3 4 5
CONSOLE
4
ACC
PWR
USB
CONSOLE 1 2 3 4 5
3
PWR ACC
2
1
5050SAP
5000SM
10/100
link/Act SERIAL SERIAL
2
10/100 1 2
link/Act
Secondary Shelf Alarm
Panel (SAP) Shelf Manager
(SMC 2)
FortiGate-5050 chassis
"FortiGate-5050 shelf alarm panel
10.
6 7 8
STA IPM
6 7 8
STA IPM
6 7 8
Hot-swappable
STA IPM
cooling fan tray
POWER
Power LED
5000SM SMC
10/100
link/Act
1
10/100
link/Act
ESD socket
Primary
(SMC 1)
