Connecting the FortiGate-5050 chassis to AC power using the FortiGate-5053 power converter tray Power connection and configuration

FortiGate-5053 power converter tray front and back panel

16
The front panel of the FortiGate-5053 power converter tray (shown in
provides access to the FortiGate-5020/5050 power supplies.

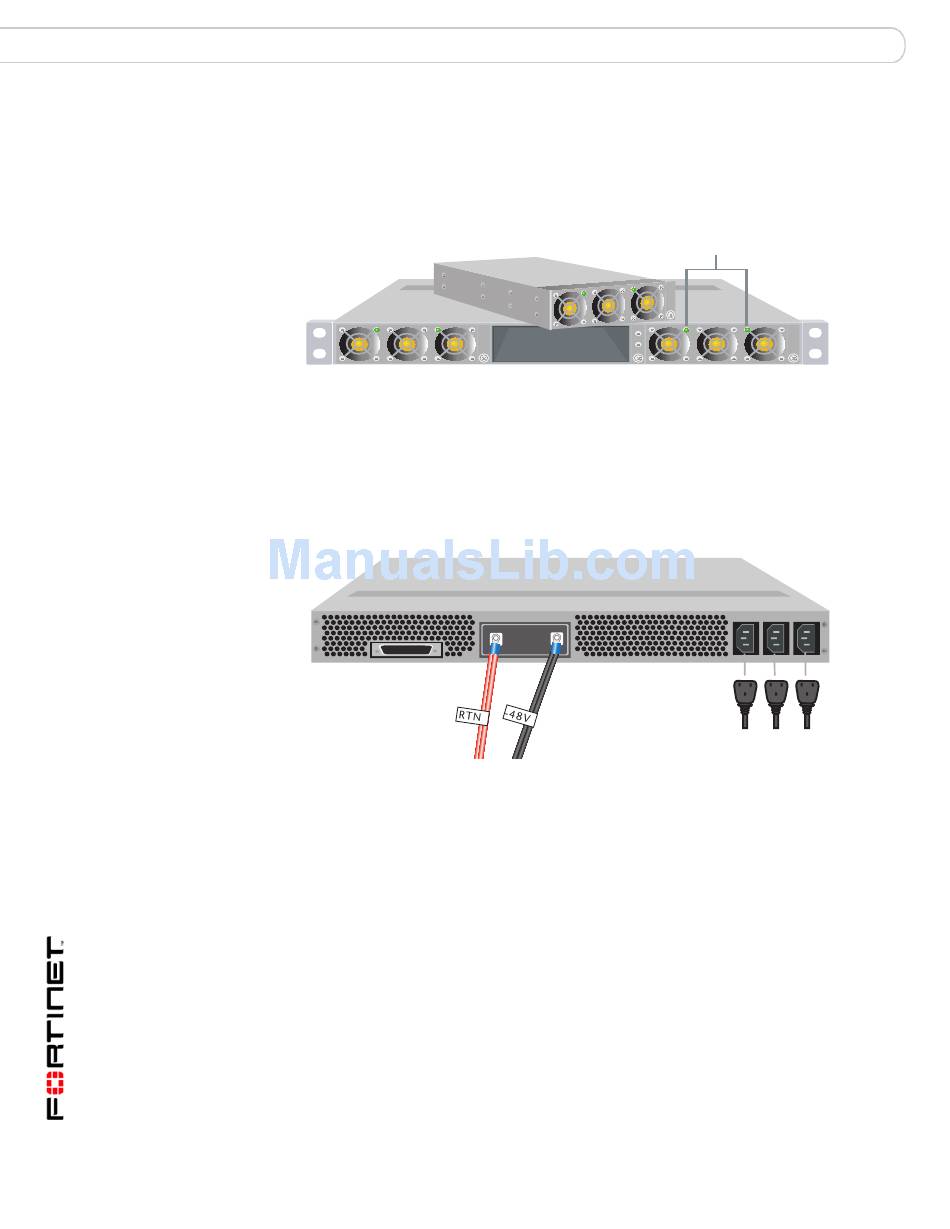

Figure 8: Front panel of the FortiGate-5053 power converter tray with one power
supply removed
Slot 3
The back panel of the FortiGate-5053 (shown in
connector terminal consisting of a RTN connector and a -48VDC connector.
• The -48VDC connector is labelled V- and may also be labelled with -48V
(BLACK).
• The RTN connector is labelled V+ and may also be labelled RTN (RED)
Figure 9: Back panel of the FortiGate-5053 power converter tray
RTN(RED) -48V(BL ACK)
V+
V+
(RTN)
(RED)
The back panel also includes three AC power connectors numbered 1, 2, 3. The
AC connector numbering corresponds to the slot numbering showing in
Each connector connects AC power directly to a FortiGate-5020/5050 power
supply. The FortiGate-5053 can contain 1, 2, or 3 FortiGate-5020/5050 power
supplies depending on your requirements. You should only connect AC power to
the power supplies that are installed.
AC input power characteristics:
• AC input voltage: 110 to 250 VAC
• AC input current: 10A
• Frequency: 47 to 63 Hz
Power LEDs
Slot 2 Slot 1
Figure 9) includes one DC power
100-240VAC 1
V-
V-
-48V
(BL ACK)
DC out
FortiGate-5050 Chassis Guide
01-30000-0395-20070201
Figure 8)
2 3
AC in
Figure 8.
