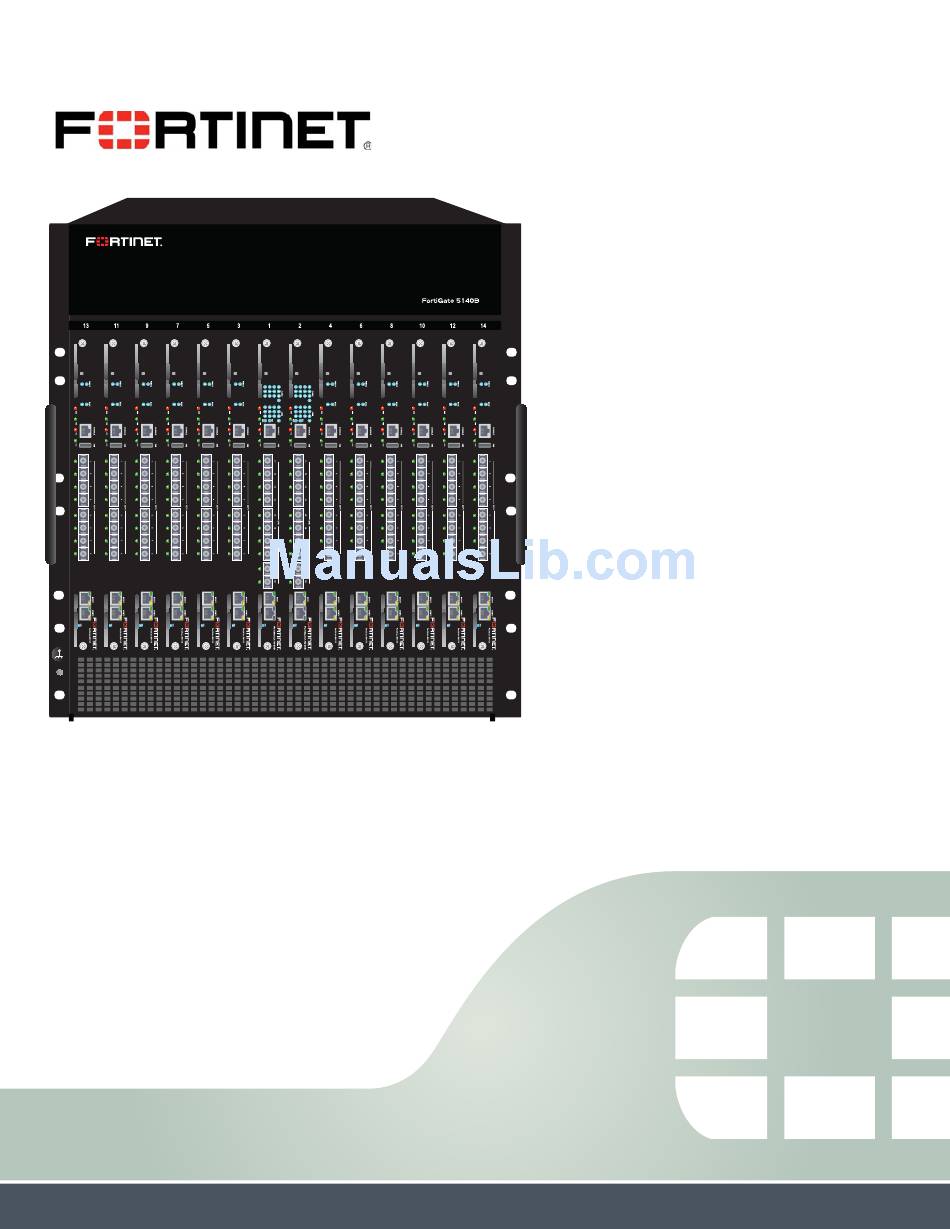

This FortiGate-5140B Chassis Guide describes FortiGate-5140B hardware features as well as how to install a
FortiGate-5140B chassis.
The most recent versions of this and all FortiGate-5000 series documents are available from the
the
Fortinet Technical Documentation
Access to Fortinet customer services, such as firmware updates, support, and FortiGuard services, requires product
registration. You can register your FortiGate-5140B at http://support.fortinet.com.
FortiGate-5140B Chassis Guide
01-500-156415-20151104
web site (http://docs.fortinet.com).
FortiGate-5140B
Chassis Guide
FortiGate-5000
page of

Advertisement

Table of Contents
loading

Related Manuals for Fortinet FortiGate-5140B

Summary of Contents for Fortinet FortiGate-5140B

  • Page 1 FortiGate-5140B Chassis Guide This FortiGate-5140B Chassis Guide describes FortiGate-5140B hardware features as well as how to install a FortiGate-5140B chassis. The most recent versions of this and all FortiGate-5000 series documents are available from the FortiGate-5000 page of Fortinet Technical Documentation web site (http://docs.fortinet.com).

  • Page 2: Warnings And Cautions

    ESD connector such as the ESD sockets provided on FortiGate-5000 series chassis. • Make sure all FortiGate-5000 series components have reliable grounding. Fortinet recommends direct connections to the building ground. • If you install a FortiGate-5000 series component in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient.
  • Page 3 • Unambiguous reference to service documentation for instructions for replacement of fuses replaceable only by service personnel. • The FortiGate-5140B chassis is capable of operating -40 VDC to -60 VDC at a maximum current level 100 A. • Caution: Double pole fusing.
  • Page 4 Warnings and cautions...

  • Page 5: Table Of Contents

    Chassis Overview........9 FortiGate-5140B front panel ......
  • Page 6 SNMP trap details ....... . . FortiGate-5140B Chassis Guide 01-500-156415-20151104...
  • Page 7 Customer service and support ......Fortinet products End User License Agreement ....
  • Page 8 Contents FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 9: Fortigate-5140B Chassis

    If all 14 slots contain FortiGate-5001D boards, the FortiGate-5140B chassis provides a total of 28 40-gigabit ethernet interfaces. You can also install FortiSwitch-5003B boards in FortiGate-5140B chassis slots 1 and 2 to provide base backplane communications using the dual star 1-gigabit base backplane interface.

  • Page 10: Fortigate-5140B Front Panel

    Finally, you can add other Fortinet 5000 series boards to a FortiGate-5140B chassis, including the 5000 series FortiMail and FortiManager boards. Some of the boards installed in a FortiGate-5140B chassis can be operating in a FortiGate HA cluster and some can be operating as standalone FortiGate units. You can also operate multiple HA clusters and standalone FortiGate units in a single FortiGate-5140B chassis.
  • Page 11 • Chassis handles. Do not operate the FortiGate-5140B chassis with open slots on the front panel. For optimum cooling performance and safety, the chassis slots must contain a FortiGate-5000 series board or an air baffle slot filler. For the same reason, all cooling fan trays and the air filter should be installed while operating the chassis.

  • Page 12: Fortigate-5140B Chassis Back Panel

    Figure 2 shows the back of a FortiGate-5140B chassis. The FortiGate-5140B chassis back panel includes two redundant -48V to - 60 VDC power entry modules (PEMs). Fortinet ships the FortiGate-5140B chassis with both installed. The PEMs provide redundant DC power connections for the FortiGate-5140B chassis and distribute DC power to all chassis slots and components.

  • Page 13: Supported Fortigate, Fortiswitch And Forticontroller Atca Boards

    • FortiGate RTM-XB2 Power requirements The FortiGate-5140B chassis is designed to be installed in a data center or similar location that has available -48VDC power fed from a 100A listed circuit breaker (also called battery power or main DC power). Fortinet expects that most FortiGate-5140B...

  • Page 14: Physical Description Of The Fortigate-5140B Chassis

    PSU-5000B power supplies to convert AC to DC to supply DC power to the FortiGate-5140B chassis from an AC source. Physical description of the FortiGate-5140B chassis The FortiGate-5140B chassis is a 13U chassis that can be installed in a standard 19-inch rack. Table 1 describes the physical characteristics of the FortiGate-5140B chassis.
  • Page 15 The hot swap LED starts blinking blue. When the hot swap LED turns solid blue you can completely loosen both retention screws and remove the shelf manager from the chassis. Figure 3: FortiGate-5140B shelf manager front panel Ethernet CH0 network activity LEDs...

  • Page 16: Using The Shelf Manager Cli

    The FortiGate-5140B shelf managers monitor the internal temperature of the FortiGate-5140B chassis and adjust the operating speed of the cooling fans as required. When the chassis is first powered on all cooling fans run at full speed. Once the shelf manager is up and running, the shelf manager reduces cooling fan speeds to maintain an optimum temperature in the chassis.
  • Page 17 The cable required to connect to the alarm interface is not supplied by Fortinet. To monitor alarms you should connect to the telco alarm interface of the active shelf alarm panel, which by default is the one on the left.

  • Page 18: Shelf Alarm Panel Telco Alarms

    FortiGate-5140B shelf alarm module FortiGate-5140B chassis Figure 5 shows the connections between the primary and secondary shelf managers and the shelf alarm panel. Figure 5: Ethernet connections between shelf managers and the base backplane interfaces Shelf Shelf Manager Manager (active)

  • Page 19: Air Filter

    Power COM Air filter The FortiGate-5140B chassis includes a front replaceable air filter that removes dust from intake air and provides static pressure to achieve uniform airflow. The filter must be installed for the chassis to operate normally. If the air filter is not locked into place the redundant air filter presence sensors cause an alarm.
  • Page 20 You do not need to press a hot swap switch to remove a fan. Just pull it out of the fan cabinet. The shelf manager regulates the fan speed by adjusting the DC voltage supplied to the fan trays. Table 5: FortiGate-5140B fan tray LEDs Description HS (Hot Swap) Normally off.

  • Page 21: Power Connection And Configuration

    DC power system. If DC power is not available at the location in which the FortiGate-5140B chassis is to be installed you can use the FortiGate-5053B power converter shelf to convert AC to DC to supply DC power to the FortiGate-5140B chassis.

  • Page 22: Connecting The Fortigate-5140B Chassis To Dc Power And Ground

    530W + (300W * 14) = 4730W Connecting the FortiGate-5140B chassis to DC power and ground Connect the FortiGate-5140B chassis to DC power using the redundant -48V to - 60 VDC power entry modules (PEMs) at the bottom of the chassis back panel. The specified voltage range of the PEMs is -40 VDC to -72 VDC.

  • Page 23: Connecting A Fortigate-5140B Pem To Dc Power

    If for any reason any of the PEM terminals are not used the unused terminals need to be covered with insulated material (or wrapped with electrical tape) as the exposed terminals are a shock hazard. Figure 8: Connecting a FortiGate-5140B PEM to DC power DC Power Source DC Power Source...
  • Page 24 3 Remove the first set of nuts and lock washers from both connectors on the PEM. 4 Connect two black -48V power wires from the DC power source to the connectors on the FortiGate-5140B PEM labeled - (the connectors on the right side of the PEM) using the double-hole lugs (see Figure Install each double-hole lug vertically.

  • Page 25: Connecting The Fortigate-5140B Chassis To Ground

    Connecting the FortiGate-5140B chassis to ground 5 Connect two red RTN power wires from your location’s RTN terminal to the connectors on the FortiGate-5140B PEM labeled + (the connectors on the left side of the PEM) using the double-hole lug (see Figure Install each double-hole lug vertically.

  • Page 26: Supplying Power Using The Fortigate-5053B Power Supply Shelf And Psu-5000B Power Supplies

    Black for -48VDC and red for RTN. These cables should only be used to connect the FortiGate-5140B PEMs to a FortiGate-5053B power supply shelf if purchased with your FortiGate-5140B chassis. The double-hole lugs to be connected to the FortiGate-5140B PEMs include rubber boots that should be installed before energizing the power system.

  • Page 27: Selecting The Power Supplies And Power Supply Shelves That You Need For Your Fortigate-5140B Chassis

    PEM and include two or three power supplies. Example: power for a fully-loaded chassis (14 boards) The power requirement for a fully loaded FortiGate-5140B chassis with boards in all 14 slots would be: 530 W + (300 W * 14) = 4730 W If you are using high-line AC power, one PSU-5000B produces 2725W.

  • Page 28: Connecting A Fortigate-5140B Chassis To The Fortigate-5053B Power Supply Shelf

    Connecting a FortiGate-5140B chassis to the FortiGate-5053B power supply shelf To use a FortiGate-5053B power supply shelf with the FortiGate-5140B chassis you need to make DC power connections between A FortiGate-5140B PEM and the FortiGate-5053B power supply shelf. You also need to the connect the FortiGate-5140B chassis and the FortiGate-5053B power supply shelf to ground.
  • Page 29 Install each double-hole lug vertically. Do not apply torque of more than 3.8 Nm (33.62 lbf.in). 10 Connect two red RTN power wires from the power supply shelf to the connectors on the FortiGate-5140B PEM labeled + (the connectors on the left side of the PEM) using the double-hole lug (see Figure 11).

  • Page 30: Turning On Fortigate-5140B Chassis Power

    If you are using local DC power, turn on the power to the chassis according to the requirements of your local DC power system. Once the FortiGate-5140B chassis is connected to DC power the chassis powers up. If the chassis is operating correctly, the LEDs on the connected PEM(s) and fans should be lit.

  • Page 31: Fortigate-5140B Hardware Procedures

    Make sure the operating ambient temperature does not exceed the manufacturer's maximum rated ambient temperature. The FortiGate-5140B chassis should not be operated as a free-standing appliance. Install the FortiGate-5140B chassis at the lower positions in the rack to avoid making the rack top-heavy and potentially falling over. Air flow For rack installation, make sure that the amount of air flow required for safe operation of the FortiGate-5140B chassis is not compromised.

  • Page 32: Inserting 5000 Series Boards And Rtm Modules Into A Fortigate-5140B Chassis

    (ESD) preventive wrist strap when handling FortiGate-5000 series or FortiSwitch-5000 series modules. Do not operate the FortiGate-5140B chassis with open slots on the front panel or rear panel. For optimum cooling performance and safety, front panel slots must contain a FortiGate-5000 series module or an air baffle slot filler and rear panel slots must either be covered or must contain a rear transition module or slot filler.

  • Page 33: Using Fortiswitch-5003B Boards For Backplane Communication

    Using FortiSwitch-5203B boards for content clustering FortiSwitch-5003B boards installed in a FortiGate-5140B chassis in slot 1 or slot 2 can be combined with FortiGate-5001B boards installed in slots 3 and up to provide a content clustering configuration. See the FortiSwitch-5203B Security System Guide (supplied with your FortiSwitch-5203B board) for information about how to configure and operate a content cluster.

  • Page 34: Using The Shelf Manager Cli

    Sensor types • Shelf manager CLI commands activate/deactivate alarm sensor board sensordata clia setthreshold exit/quit shmstatus showunhealthy fruinfo switchover getlanconfig terminate getthreshold/threshold user help version minfanlevel • Generating SNMP traps for shelf manager system events FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 35: Connecting To The Shelf Manager Cli Using A Serial Port And Setting Up Passwords

    When you log into the shelf manager CLI you are logging into a Linux shell as root. You can begin entering commands at the # prompt: FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 36: Changing The Shelf Manager Root Account Password

    Output similar to the following appears as the shelf manager reboots: /etc/rc: hostname demo /etc/rc: Restoring password file to factory default 7 Enter the following command to add a new password for the root account: # passwd FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 37: The Shelf Manager Command Line Interface Agent (Clia)

    Pigeon Point Shelf Manager Command Line Interpreter CLI> version Pigeon Point Shelf Manager ver. 2.5.1 Pigeon Point is a trademark of Pigeon Point Systems. Copyright (c) 2002-2006 Pigeon Point Systems Build date/time: Nov 3 2006 09:43:12 All rights reserved# FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 38: Ipmb Addresses, Logical And Physical Slot Numbers, And Fru Ids

    For example, a FortiGate-5001A board with an AMC module is installed in logical slot 4, then at IPMB address 88, there will be FRU 0 (the FortiGate-5001A board) and FRU 1 (the AMC module). Table 8: FortiGate-5140B chassis component FRU names, IPMB addresses, and hardware addresses IPMB...

  • Page 39: Basic Shelf Manager Cli Commands

    Using the shelf manager CLI Basic shelf manager CLI Commands Table 8: FortiGate-5140B chassis component FRU names, IPMB addresses, and hardware addresses (Continued) IPMB Hardware FRU name address (hex) Address (hex) ATCA logical slot 4 ATCA logical slot 5 ATCA logical slot 6...

  • Page 40: Display The Fru Information For A Fru

    Backup Gateway Address: 0.0.0.0 Backup Gateway MAC Address: N/A Community String: "public" Number of Destinations: 16 Destination Type: DST Type # 2, Type: Unacknowledged PET Trap Destination (0x00), ACK Timeout / Retry Interval: 0 seconds, Retries: 0 FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 41: Sensor Types

    IPMI specification. Example of sensor type: • 01 for temperature sensor • 02 for voltage sensor • C0-FF for OEM reserved sensors (F0 is the hot swap sensor and F1 is the IPMB link sensor). FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 42: Shelf Manager Cli Commands

    However, the shelfman.conf file contains the following lines: # ALLOW_CLEARING_CRITICAL_ALARM: This parameter of boolean type enables the # ability to clear the critical alarm condition without the alarm cutoff # button. Default is FALSE. ALLOW_CLEARING_CRITICAL_ALARM = FALSE FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 43: Board

    Physical Slot # 11 90: Entity: (0xa0, 0x60) Maximum FRU device ID: 0x00 PICMG Version 2.1 Hot Swap State: M4 (Active), Previous: M3 (Activation In Process), Last State Change Cause: Normal State Change (0x0) 90: FRU # 0 FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 44: Clia

    20: FRU # 65 Current Level: 8 Minimum Speed Level: 0, Maximum Speed Level: 15 20: FRU # 64 Current Level: 8 Minimum Speed Level: 0, Maximum Speed Level: 15 Pigeon Point Shelf Manager Command Line Interpreter FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 45: Fru

    Hot Swap State: M4 (Active), Previous: M4 (Active), Last State Change Cause: Normal State Change (0x0) Device ID String: "FG5005A" fruinfo clia fruinfo [-v] [-x]<addr> <fru_id> This command displays FRU Information in a user-friendly format. FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 46: Getlanconfig

    # clia getlanconfig 1 3 Pigeon Point Shelf Manager Command Line Interpreter IP Address: 192.168.0.2 The following command displays the subnet mask associated with channel 1: # clia getlanconfig 1 subnet_mask Pigeon Point Shelf Manager Command Line Interpreter FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 47: Getthreshold/Threshold

    Type: Threshold (0x01), "Voltage" (0x02) Lower Non-Critical Threshold, Raw Data: 0x6c Processed data: 1.058400 Volts Lower Critical Threshold, Raw Data: 0x67 Processed data: 1.009400 Volts Lower Non-Recoverable Threshold, Raw Data: 0x61 Processed data: 0.950600 Volts FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...
  • Page 48 3.515400 Volts Upper Critical Threshold, Raw Data: 0xdf Processed data: 3.612600 Volts Upper Non-Recoverable Threshold, Raw Data: 0xe5 Processed data: 3.709800 Volts 90: LUN: 0, Sensor # 8 ("+2.5V CPU 1") Type: Threshold (0x01), "Voltage" (0x02) FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...
  • Page 49 Lower Non-Critical Threshold, Raw Data: 0x76 Processed data: 1.156400 Volts Lower Critical Threshold, Raw Data: 0x71 Processed data: 1.107400 Volts Lower Non-Recoverable Threshold, Raw Data: 0x6c Processed data: 1.058400 Volts Upper Non-Critical Threshold, Raw Data: 0x80 Processed data: 1.254400 Volts FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...
  • Page 50 90: LUN: 0, Sensor # 13 ("CPU Board Temp") Type: Threshold (0x01), "Temperature" (0x01) Upper Non-Critical Threshold, Raw Data: 0x4b Processed data: 75.000000 degrees C Upper Critical Threshold, Raw Data: 0x51 Processed data: 81.000000 degrees C FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...
  • Page 51 <addr> <fru id> <byte offset> <byte_1> [byte2 .. [byte_16]] frudatar <addr> <fru id> <file name> frudataw [-s|-d|-p|-l] <addr> <fru id> <file name> frudataw <-s|-d|-p|-l> -c <addr> <fru id> fruinfo <addr> <fru_id> getbootdev <addr> [<fru-id> | <amc-addr>] getconfigparam [<parameter name>] FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...
  • Page 52 <addr> <fru_id> setfanlevel <addr> <fru_id> <state> setfanpolicy <addr> <fru_id> <ENABLE | DISABLE [timeout]> [-s <addr> | site_type <fru_id> | site_number] setfruledstate <addr> <fru_id> <LedId> | ALL <LedOp | tail> [LedColor] setfunctionpolicy <EnableDisableMask> <NetFn> <CMD> [<channel>] [<LUN>] FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...
  • Page 53 [<user id>] user add <user id> <user name> <flags> <privilege level> <password> user channel <user id> <channel number> <flags> <privilege level> user delete <user id> user enable <user id> 1|0 user name <user id> <user name> FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 54: Minfanlevel

    Enter the command with no parameters to display the current minimum fan level. Enter the command with an integer to set the minimum fan level. FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 55: Sel

    You can also use the Linux command cat /tmp/messages to view shelf manager system log messages. This information can be useful for diagnosing system problems. This information can also help Fortinet Support diagnose shelf manager system problems. The sel command shows the contents of the SEL on the specified IPM Controller (at IPMB address 20h by default).

  • Page 56: Sensor

    • The sensor type and event/reading type code • The Entity ID, Entity Instance of the related entity (the FRU device ID if the sensor is associated with a FRU) Example for slot 11 and sensor 13: FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 57: Sensordata

    90: LUN: 0, Sensor # 13 ("CPU Board Temp") Type: Threshold (0x01), "Temperature" (0x01) Status: 0xc0 All event messages enabled from this sensor Sensor scanning enabled Initial update completed Raw data: 44 (0x2c) Processed data: 44.000000 degrees C Status: 0x00 FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 58: Setthreshold

    Upper Non-Critical Threshold, Raw Data: 0x46, Processed Data: 70.000000 degrees C Upper Critical Threshold, Raw Data: 0x50, Processed Data: 80.000000 degrees C Upper Non-Recoverable Threshold, Raw Data: 0x5a, Processed Data: 90.000000 degrees C # clia setthreshold 0:2 unc 99 FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 59: Shmstatus

    Example verbose mode output for an active shelf manager: # clia shmstatus -v Pigeon Point Shelf Manager Command Line Interpreter Host: "Active" Ready For Operation: Yes Detailed State Flags: "Shelf FRU Found" "Backup Healthy" "Initial Update Sent" "RMCP Up" FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 60: Showunhealthy

    Use this command to add, delete, modify and display RMCP user accounts for a shelf manager. Display all user accounts Enter the following command to display user account information: clia user -v Pigeon Point Shelf Manager Command Line Interpreter FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...
  • Page 61 Pigeon Point Shelf Manager Command Line Interpreter 1: "" Channels 0-15 Privilege level: "Administrator" Flags: "IPMI Messaging" clia user add 9 "user_1" 0x40 4 "my-password" Pigeon Point Shelf Manager Command Line Interpreter User 9 added successfuly clia user FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...
  • Page 62 Where <user_id> is the user account ID and <new_password> is the new password. For example, enter the following command to change the user name of user account 6 to NEW-password: clia user password 6 NEW-password FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 63: Version

    FortiSwitch-5000 series board in logical slot 1, FortiGate-5000 series boards in logical slots 6, 8, 10, and 11. The same settings will work for a FortiGate-5140, FortiGate-5060 or FortiGate-5050 chassis after making adjustments for the slot numbers. FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...
  • Page 64 1 Use the following command to set the community name used in PET traps. This can be any community name, the default is public. # clia setlanconfig 1 16 “<community_name>” For example, use the following command to set the community name to MyCommunity # clia setlanconfig 1 16 MyCommunity FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...
  • Page 65 <filter_configuration>. In this example the filter configuration is ways set to 80 to enable the filter. <filter_action>. In this example the filter action is ways set to 1 to set the action to alert. <alert_policy_number>. In this example the alert policy number is 5. FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...
  • Page 66 10 80 1 5 02 94 FF FF FF FF FF FF 0 0 0 0 0 0 0 0 0 Add filter entry 11 for the FortiGate board in logical slot 11 (IPMB address 96). FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...
  • Page 67 HotSwap: FRU 7 M6->M1, Cause=0x0 0x0004: Event: at Jul 8 17:12:21 2008; from:(0x20,0,0); sensor:(0x12,133); event:0x6f(asserted): 0xC4 0x01 0x00 The event log shows two state changes: M4 -> M6 -> M1 Two SNMP traps are generated. FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 68: Snmp Trap Details

    (162) Simple Network Management Protocol version: version-1 (0) community: public data: trap (4) trap enterprise: 1.3.6.1.4.1.3183.1.1 (SNMPv2- SMI::enterprises.3183.1.1) agent-addr: internet (0) internet: 192.168.181.66 (192.168.181.66) generic-trap: enterpriseSpecific (6) specific-trap: 15757062 time-stamp: 1975765011 variable-bindings: 1 item Item FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 69: Removing And Inserting A Fan Tray

    06 = FRU 4 hot swap sensor. # clia fru 20 4 20: FRU # 4 Entity: (0x1e, 0x61) Hot Swap State: M4 (Active), Previous: M3 (Activation In Process), Last State Change FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 70: Setting Up Snmp Polling For The Shelf Manager

    4 Enter the following command to restart the snmpd process: # daemon -f snmpd -c /etc/snmpd.conf 5 To confirm that the process has restarted enter the ps command again and confirm that the snmpd process is in the list. FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 71: Using The Shelf Manager System Event Log (Sel)

    • Fan 2 = (IPMC CA) FRU 0 • PEM A (Power Entry Module A) = (IPMC C0) FRU 0 “IPMB addresses, logical and physical slot numbers, and FRU ids” on page 38 for a complete list. FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 72: Alarm Leds

    The following example event log entry records that the rear fan in Fan Tray 1 (middle fan tray) is spinning below the required RPM rate. 0x018D: Event: at Jan 1 00:02:15 1970; from:(0x10,0,0); sensor:(0x04,10); event:0x1(asserted): "Upper Critical", Threshold: 0xff, Reading: 0xff FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 73: Clearing Sel Logs

    Pigeon Point Shelf Manager Command Line Interpreter 10: FRU # 0 Entity: (0xf0, 0x60) Hot Swap State: M4 (Active), Previous: M3 (Activation In Process), Last State Change Cause: Normal State Change (0x0) Device ID String: "ShMM-500" FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...
  • Page 74 Hot Swap State: M7 (Communication Lost), Previous: M4 (Active), Last State Change Cause: Unknown (0xf) 86: Entity: (0xa0, 0x60) Maximum FRU device ID: 0x00 Hot Swap State: M7 (Communication Lost), Previous: M4 (Active), Last State Change Cause: Unknown (0xf) FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 75: Example Fru Log Output

    Device ID String: "ShMM-500" 12: FRU # 0 Entity: (0xf0, 0x60) Hot Swap State: M4 (Active), Previous: M3 (Activation In Process), Last State Change Cause: Normal State Change (0x0) Device ID String: "ShMM-500" 14: FRU # 0 FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...
  • Page 76 Device ID String: "FS5203B" c0: FRU # 0 Entity: (0x15, 0x60) Hot Swap State: M4 (Active), Previous: M3 (Activation In Process), Last State Change Cause: Normal State Change (0x0) Device ID String: "CO14N PEM" c2: FRU # 0 FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 77: Example Sensor Log Output

    10: LUN: 0, Sensor # 128 ("CPLD State") Type: Discrete (0x6f), "OEM reserved" (0xde) Belongs to entity (0xf0, 96): [FRU # 0] 10: LUN: 0, Sensor # 129 ("Reboot Reason") Type: Discrete (0x6f), "OEM reserved" (0xdd) FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...
  • Page 78 Type: Discrete (0x6f), "Button" (0x14) Belongs to entity (0xf1, 96): [FRU # 0] 14: LUN: 0, Sensor # 125 ("Telco Alarms") Type: Discrete (0x6f), "TELCO Alarm Input" (0xf4) Belongs to entity (0xf3, 96): [FRU # 2] FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...
  • Page 79 18: LUN: 0, Sensor # 125 ("Telco Alarms") Type: Discrete (0x6f), "TELCO Alarm Input" (0xf4) Belongs to entity (0xf3, 96): [FRU # 2] 20: LUN: 0, Sensor # 0 ("FRU 0 HOT_SWAP") Type: Discrete (0x6f), "Hot Swap" (0xf0) FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...
  • Page 80 Type: Discrete (0x6f), "Hot Swap" (0xf0) Belongs to entity (0x15, 96): [FRU # 0] c0: LUN: 3, Sensor # 1 ("IPMC Status") Type: Discrete (0x6f), "OEM reserved" (0xd5) Belongs to entity (0x15, 96): [FRU # 0] FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...
  • Page 81 LUN: 0, Sensor # 132 ("HotSwap") Type: Discrete (0x6f), "Hot Swap" (0xf0) Belongs to entity (0x15, 96): [FRU # 0] c2: LUN: 3, Sensor # 1 ("IPMC Status") Type: Discrete (0x6f), "OEM reserved" (0xd5) FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...
  • Page 82 Type: Discrete (0x6f), "IPMB Link" (0xf1) Belongs to entity (0x1e, 96): [FRU # 0] c8: LUN: 0, Sensor # 132 ("FAN HotSwap") Type: Discrete (0x6f), "Hot Swap" (0xf0) Belongs to entity (0x1e, 96): [FRU # 0] FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...
  • Page 83 LUN: 0, Sensor # 4 ("Exhaust Temp") Type: Threshold (0x01), "Temperature" (0x01) Belongs to entity (0x1e, 96): [FRU # 0] ca: LUN: 0, Sensor # 3 ("Flame Sensor") Type: Discrete (0x6f), "OEM reserved" (0xd2) FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...
  • Page 84 Type: Discrete (0x6f), "IPMB Link" (0xf1) Belongs to entity (0x1e, 96): [FRU # 0] ce: LUN: 0, Sensor # 132 ("FAN HotSwap") Type: Discrete (0x6f), "Hot Swap" (0xf0) Belongs to entity (0x1e, 96): [FRU # 0] FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 85: Sample Sections Of Sel Output

    Shows a low voltage warning on the backup battery on shelf manager 1: 0x022C: Event: at Jan 1 23:09:06 2010; from:(0x10,0,0); sensor:(0x02,6); event:0x1(asserted): "Lower Critical", Threshold: 0xb3, Reading: 0x99 Shows the board in ATCA slot 4 has exceeded the incoming air temperature limit: FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...
  • Page 86 "Upper Critical", 0x09 0xFF 0xFF Shows the board in ATCA slot 4 has exceeded the CPU board temperature limit: 0x0081: Event: at Jan 1 00:30:40 1970; from:(0x8e,0,0); sensor:(0x01,13); event:0x1(asserted): "Upper Critical", 0x09 0xFF 0xFF FortiGate-5140B Chassis Guide 01-500-156415-20151104 http://docs.fortinet.com/...

  • Page 87: For More Information

    For more information Training Services Fortinet Training Services offers courses that orient you quickly to your new equipment, and certifications to verify your knowledge level. Fortinet training programs serve the needs of Fortinet customers and partners world-wide. Visit Fortinet Training Services at http://campus.training.fortinet.com, or email training@fortinet.com.
  • Page 88 Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests. Fortinet disclaims in full any covenants, representations, and guarantees pursuant hereto, whether express or implied.

Table of Contents
