Power connection and configuration Connecting the FortiGate-5050 chassis to AC power using the FortiGate-5053 power converter tray
7
8
9
10
11
12
FortiGate-5050 Chassis Guide
01-30000-0395-20070201

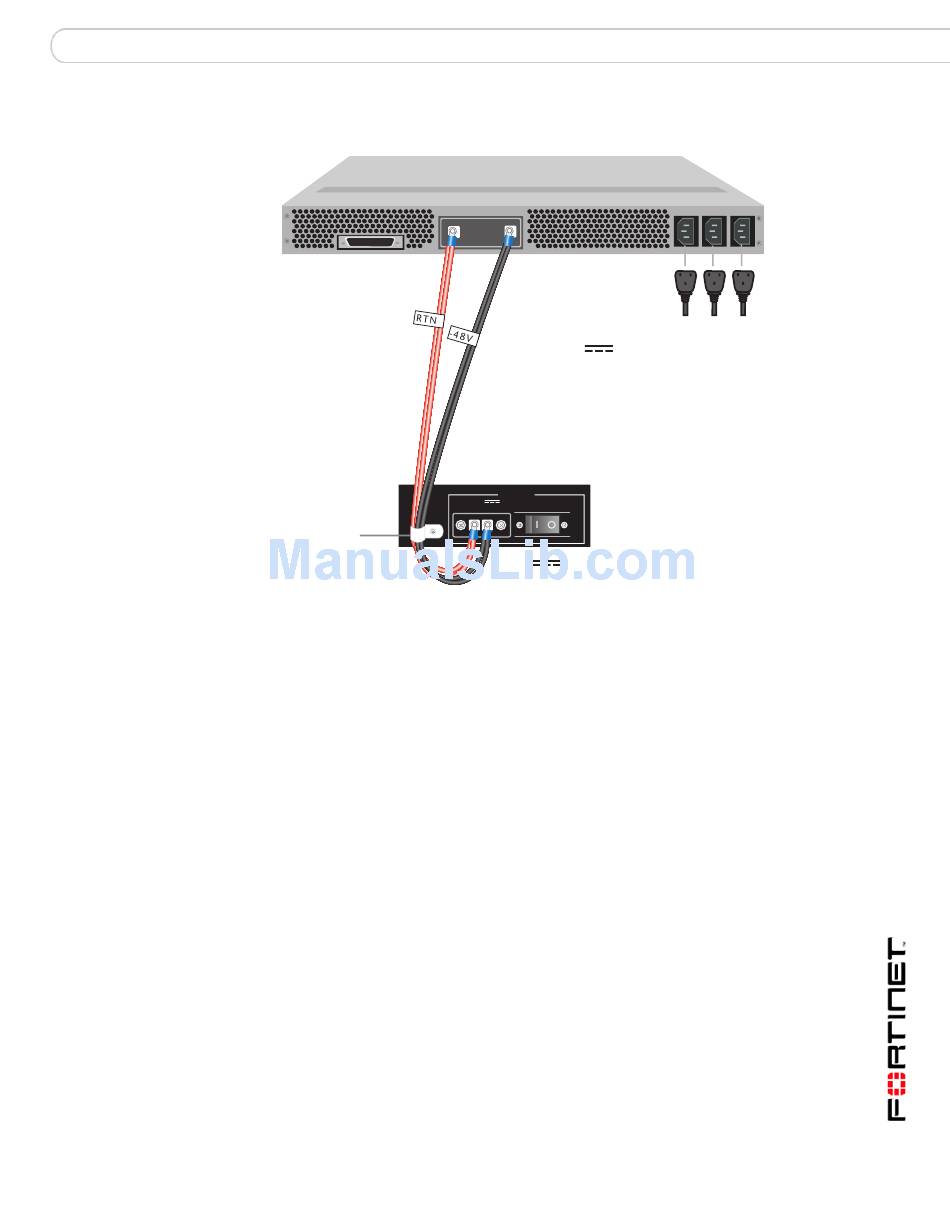

Figure 14: Connecting a FortiGate-5050 power input connector to a FortiGate-5053
power converter tray
RTN(RED) -48V(BL ACK)
V+
V+
(RTN)
(RED)
Red RTN to
FortiGate-5053
RTN
Power wire
fixture
Positive (RTN) (red)
Make sure the power wires are secured to the chassis using the power wire fixture
and tie wraps if required.
If required, label the black wires -48V.
If required, label the red wires RTN.
Re-attach the protection plate to the FortiGate-5050 power input connector.
Attach the clear plastic cover to the back of the FortiGate-5053 power converter
tray.
Connect the FortiGate-5053 power converter tray to AC power.
Only connect the power supplies that are installed in the FortiGate-5053 to AC
power. For example, if your FortiGate-5053 includes two FortiGate-5020/5050
power supplies, the power supplies will be installed in slots 1 and 2. In this case
you should only connect AC in connectors 1 and 2 to AC power. If your
FortiGate-5053 power converter tray contains three power supples, connect all
three AC in connectors to AC power.
The photograph in Figure 15
provide power to a FortiGate-5050 chassis. This photograph also shows the clear
back cover of the FortiGate-5053 installed. You should install this cover using the
mounting hardware provided. Install the cover after connecting the power but
before turning the power on.
100-240VAC 1
V-
V-
-48V
(BL ACK)
Black -48V
VDC to
FortiGate-5053
-48 VDC
INPUT A
-48V
RTN (-DC IN)
24
AMP
-48V
(-DC in)
(black)
shows the back panel of a FortiGate-5053 wired to
2 3
AC in
