FortiGate-5050 shelf manager

FortiGate-5050 shelf manager
10
When the ACO state is activated, active alarm LEDs blink and all of the alarm
relays are deactivated. The alarm reset button activates the ACO state but does
not clear the alarm completely.

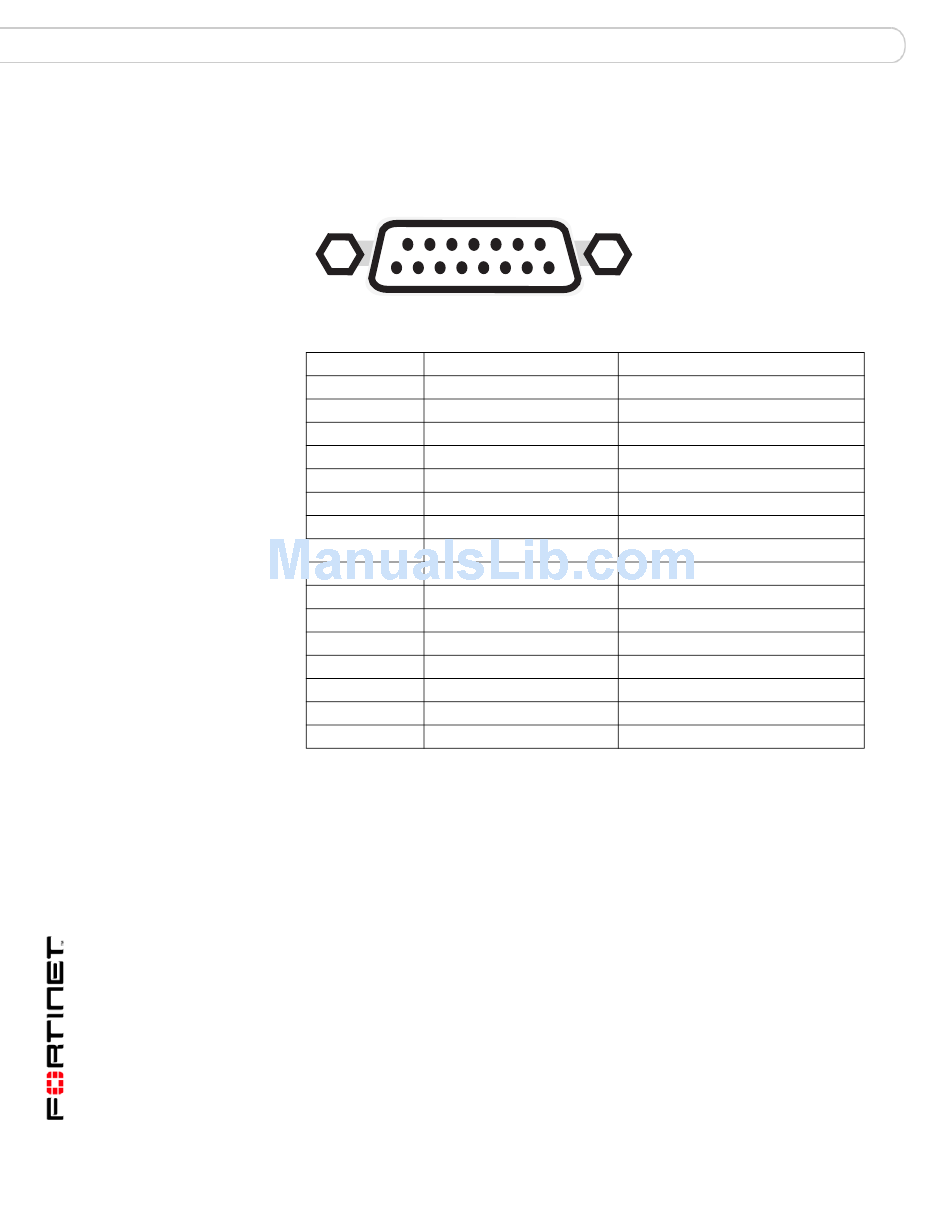

Figure 4: The telco alarm connector (DB-15 male)
15
8
Table 4: Telco alarm connector pin assignment
Pin Name
1 AMIR+
2 AMIR-
3 AMAR+
4 AMAR-
5 ACNO
6 ACNC
7 ACCOM
8 AMINO
9 AMINC
10 AMINCOM
11 AMANO
12 AMANC
13 AMACOM
14 APRCO
15 APRCOM
Shield Shelf-GND
The FortiGate-5050 chassis includes two identical redundant hot-swappable shelf
managers, located in the dedicated shelf manager slots on the bottom of the
FortiGate-5050 front panel. The primary shelf manager is installed on the right
(SMC 1) the secondary shelf manager is installed on the left (SMC 2). The
FortiGate-5140 and 5050 chassis include the same shelf managers.
The shelf managers support redundant operation with automatic switchover. If
both shelf managers are operating normally, one acts as the active shelf manager
and the other as the standby. Usually the primary shelf manager would be the
active shelf manager and the secondary shelf manager would be the standby
shelf manager. The shelf managers monitor each other and either can trigger a
switchover if necessary. The active shelf manager performs all shelf manager
functions. If the active shelf manager fails or is removed, the standby shelf
manager takes over all shelf manager functions.
9
1
Description
MinorReset+
MinorReset-
MajorReset+
MajorReset-
CriticalAlarm - NO
CriticalAlarm - NC
CriticalAlarm - COM
MinorAlarm -NO
MinorAlarm - NC
MinorAlarm - COM
MajorAlarm - NO
MajorAlarm - NC
MajorAlarm - COM
PwrAlarm - NO
PwrAlarm - COM
Shelf Ground
