Quick Configuration Guide
1
2
1
FortiGate-5005FA2 Security System Guide
01-30000-0377-20070201
In a FortiGate-5140 or FortiGate-5050 chassis, FortiGate-5005FA2 base
backplane communication requires one or two FortiSwitch-5003 modules.
A FortiSwitch-5003 module installed in chassis slot 1 provides communication on
the base1 interface. A FortiSwitch-5003 module installed in chassis slot 2
provides communication on the base2 interface. The FortiGate-5020 chassis
supports base backplane data communication for both interfaces with no
additions or changes to the chassis.
For details and configuration examples of FortiGate-5005FA2 base backplane
communication using the FortiSwitch-5003 module, see the
Backplane Communication
To enable base backplane data communication from the FortiGate-5005FA2
web-based manager
From the FortiGate-5005FA2 web-based manager use the following steps to
enable base backplane data communication.
Go to System > Network > Interface.
Select Show backplane interfaces.
The base1, base2, fabric1, and fabric2 backplane interfaces now appear in the
Interface list.

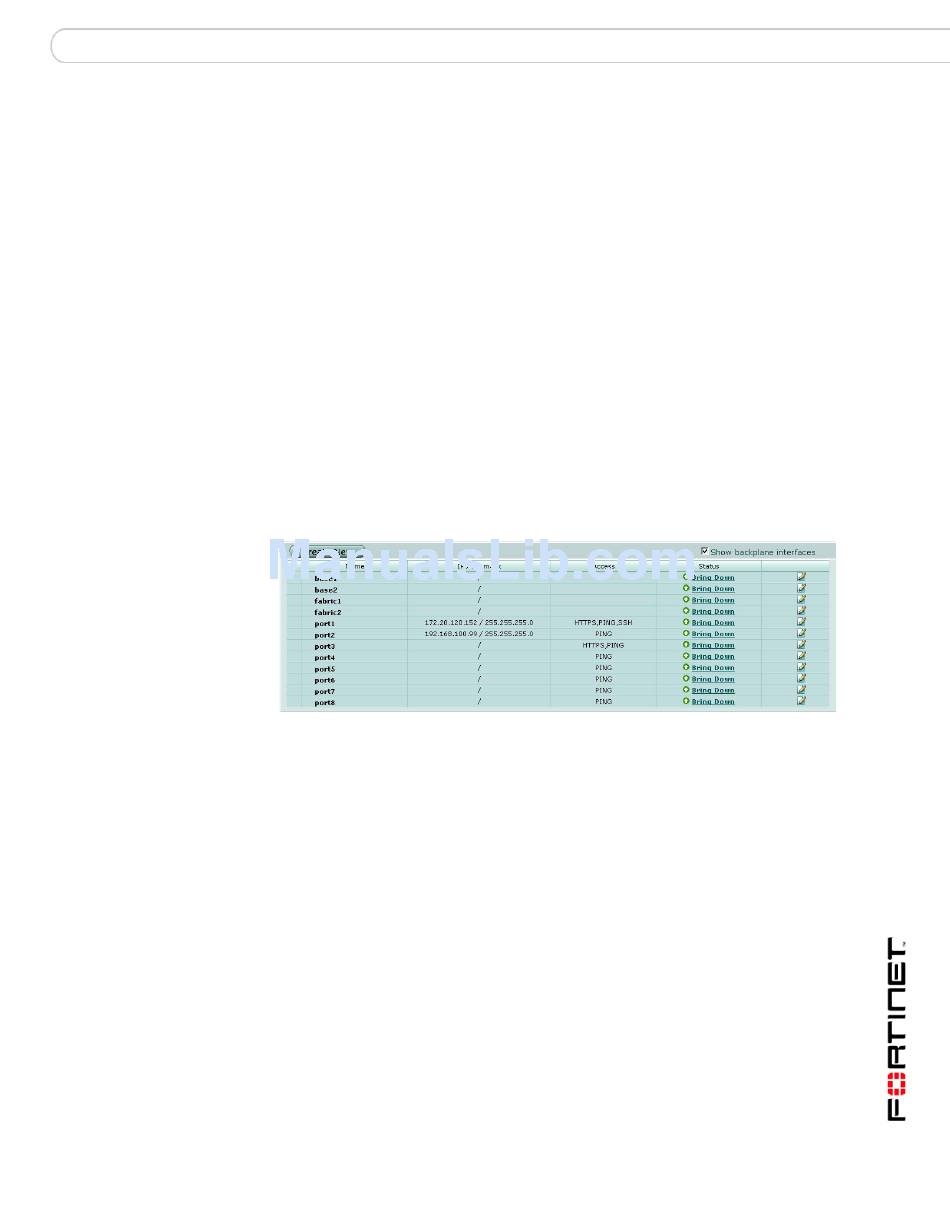

Figure 5: FortiGate-5005FA2 interface list with backplane interfaces enabled
To enable base backplane data communication from the FortiGate-5005FA2
CLI
From the FortiGate-5005FA2 module CLI you can use the following steps to
enable base backplane data communication.
Enter the following command to show the backplane interfaces:
config system global
set show-backplane-intf enable
end
The base1, base2, fabric1, and fabric2 backplane interfaces now appear in all
Interface lists.
FortiGate-5005FA2 base backplane data communication
Guide.
FortiGate-5000 Base
27
