Installing FortiGate-5005FA2 modules
12
5 Carefully guide the module into the chassis using the rails in the slot.
Insert the module by applying moderate force to the front faceplate (not the
extraction levers) to slide the module into the slot. The module should glide
smoothly into the chassis. If you encounter any resistance while sliding the
module in, the module could be aligned incorrectly. Pull the module back out and
try inserting it again.
6 Slide the module in until the alignment pins are inserted half way into their sockets
in the chassis.

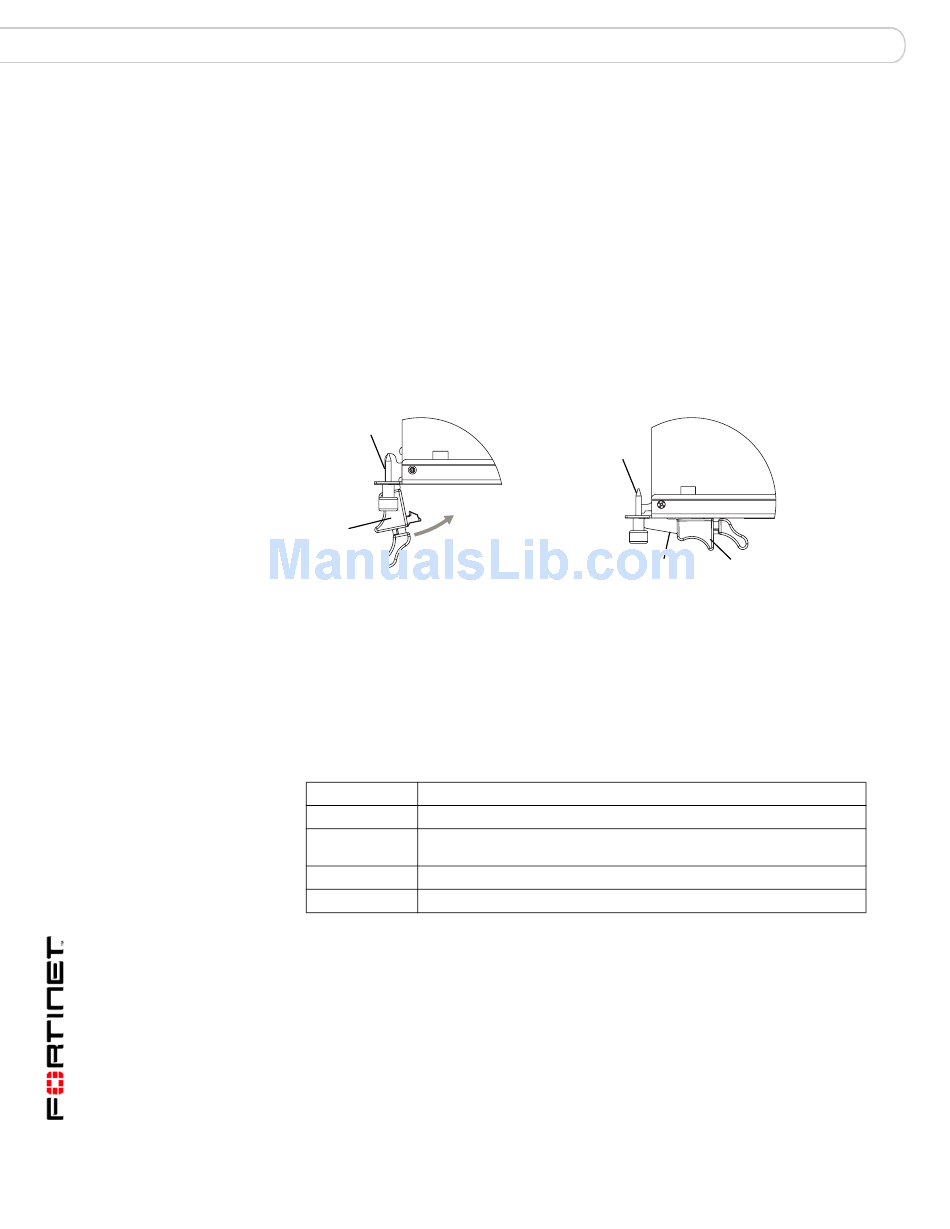

7 Turn both extraction levers to their fully-closed positions.
The extraction levers should hook into the sides of the chassis slot. Closing the
extraction levers draws the FortiGate-5005FA2 module into place in the chassis
slot and into full contact with the chassis backplane. The FortiGate-5005FA2 front
panel should be in contact with the chassis front panel. When the extraction levers
are fully-closed they lock into place.
Alignment Pin
Extraction
Lever
If the chassis is powered on, as the module slides into place the IPM LED starts
flashing blue. If the module is aligned correctly, inserted all the way into the slot,
and the extraction levers are properly locked the IPM LED flashes blue for a few
seconds. At the same time the STATUS LED turns amber, the interface LEDs
flash amber, and the ACC LED starts flashing green. After a few seconds the IPM
LED goes out and the FortiGate-5005FA2 firmware starts up. If the module is
operating correctly, the front panel LEDs are lit as described in
Table 3: FortiGate-5005FA2 normal operating LEDs
LED State
OOS Off
ACC Off (Or flashing green when the system accesses the
FortiGate-5005FA2 flash disk.)
STATUS Amber
IPM Off
If the module has not been inserted properly the IPM LED changes to solid blue
and all other LEDS turn off. If this occurs, squeeze and open the extraction levers,
slide the module part way out, and repeat the insertion process.
Alignment Pin
Close
FortiGate-5005FA2 Security System Guide
Hardware installation
Extraction
Fully Closed
Lever
and Locked
Table 3.
