Removing a FortiGate-5005FA2 module
14
3

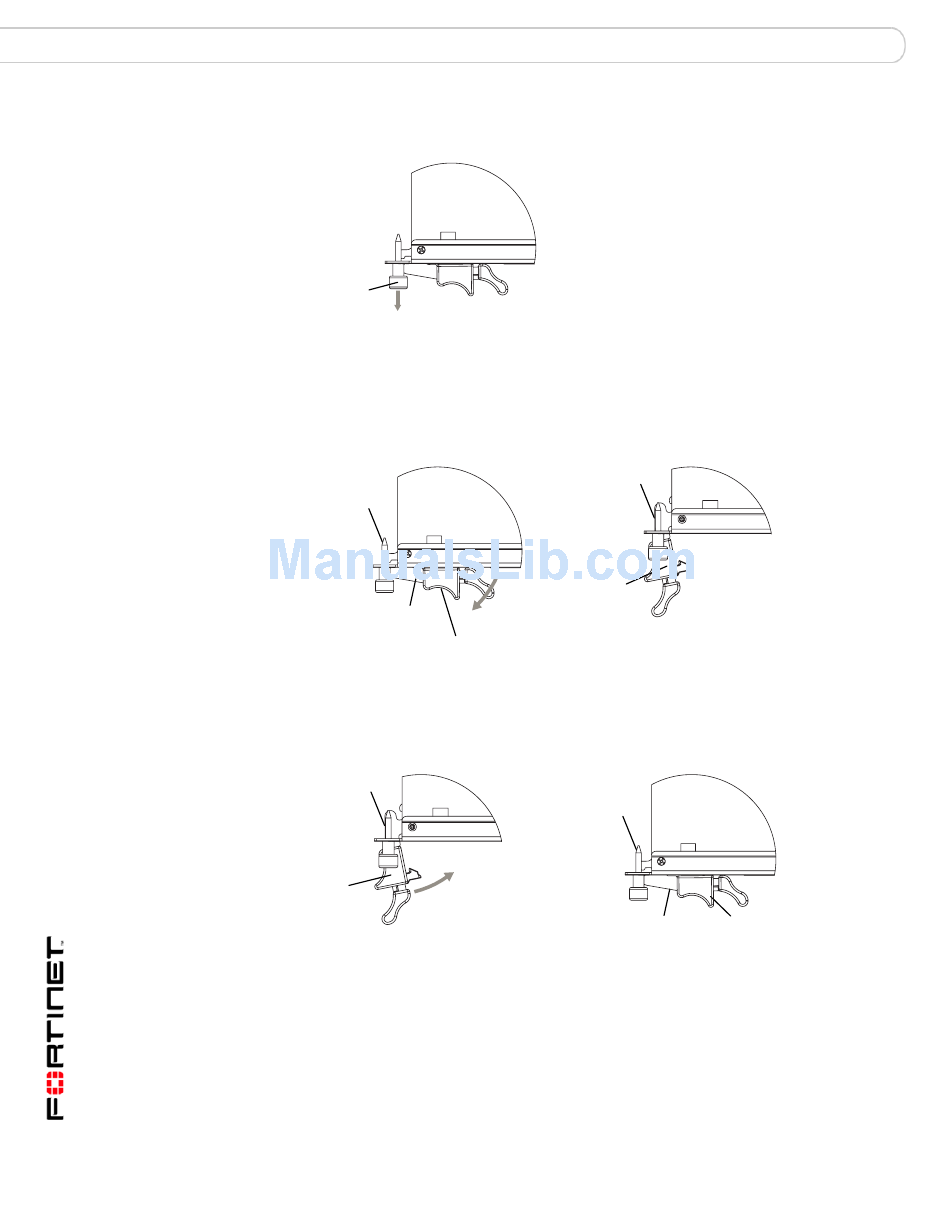

Fully loosen the mounting knots on the left and right sides of the
FortiGate-5005FA2 front panel.
Mounting
Knot
Loosen
4
Unlock the left and right extraction levers by squeezing the extraction lever locks.
5
Open the left and right extraction levers to their fully open positions.
Opening the extraction levers slides the module a short distance out of the slot,
disconnecting the module from the chassis backplane.
The IPM LED turns solid blue. All other LEDs turn off.
Alignment Pin
Extraction
Lever
Lock
6
Pull the module about half way out.
All LEDs turn off.
7
Turn both extraction levers to their fully-closed positions.
When the extraction levers are fully-closed they lock into place.
Alignment Pin
Extraction
Lever
8
Carefully slide the module completely out of the slot.
Alignment Pin
Extraction
Lever
Open
Alignment Pin
Close
FortiGate-5005FA2 Security System Guide
Hardware installation
Extraction
Fully Closed
Lever
and Locked
01-30000-0377-20070201
