Hardware installation

Insertion procedure

!
!
1
2
3
4
FortiGate-5005FA2 Security System Guide
01-30000-0377-20070201
FortiGate-5005FA2 modules are hot swappable. The procedure for inserting
the FortiGate-5005FA2 module into a FortiGate-5000 series chassis slot is the
same whether or not the FortiGate-5000 series chassis is powered on or not.
To insert a FortiGate-5005FA2 module into a FortiGate-5000 series chassis
Caution: Do not carry the FortiGate-5005FA2 module by holding the extraction levers.
When inserting or removing the FortiGate-5005FA2 module from a chassis slot, handle the
module by the front panel. The extraction levers are designed for positioning and locking
the FortiGate-5005FA2 module into a slot in a chassis only and should not be used for
handling the module. If the extraction levers become bent or damaged the
FortiGate-5005FA2 module may not align correctly in the chassis slot.
To complete this procedure, you need:
• A FortiGate-5005FA2 module
• A FortiGate-5000 series chassis with an empty slot
• An electrostatic discharge (ESD) preventive wrist or ankle strap with
connection cord
Caution: FortiGate-5005FA2 modules must be protected from static discharge and
physical shock. Only handle or work with FortiGate-5005FA2 modules at a static-free
workstation. Always wear a grounded electrostatic discharge (ESD) preventive wrist or
ankle strap when handling FortiGate-5005FA2 modules.
Attach the ESD wrist or ankle strap to your wrist or ankle and to an ESD socket or
to a bare metal surface on the chassis or frame.

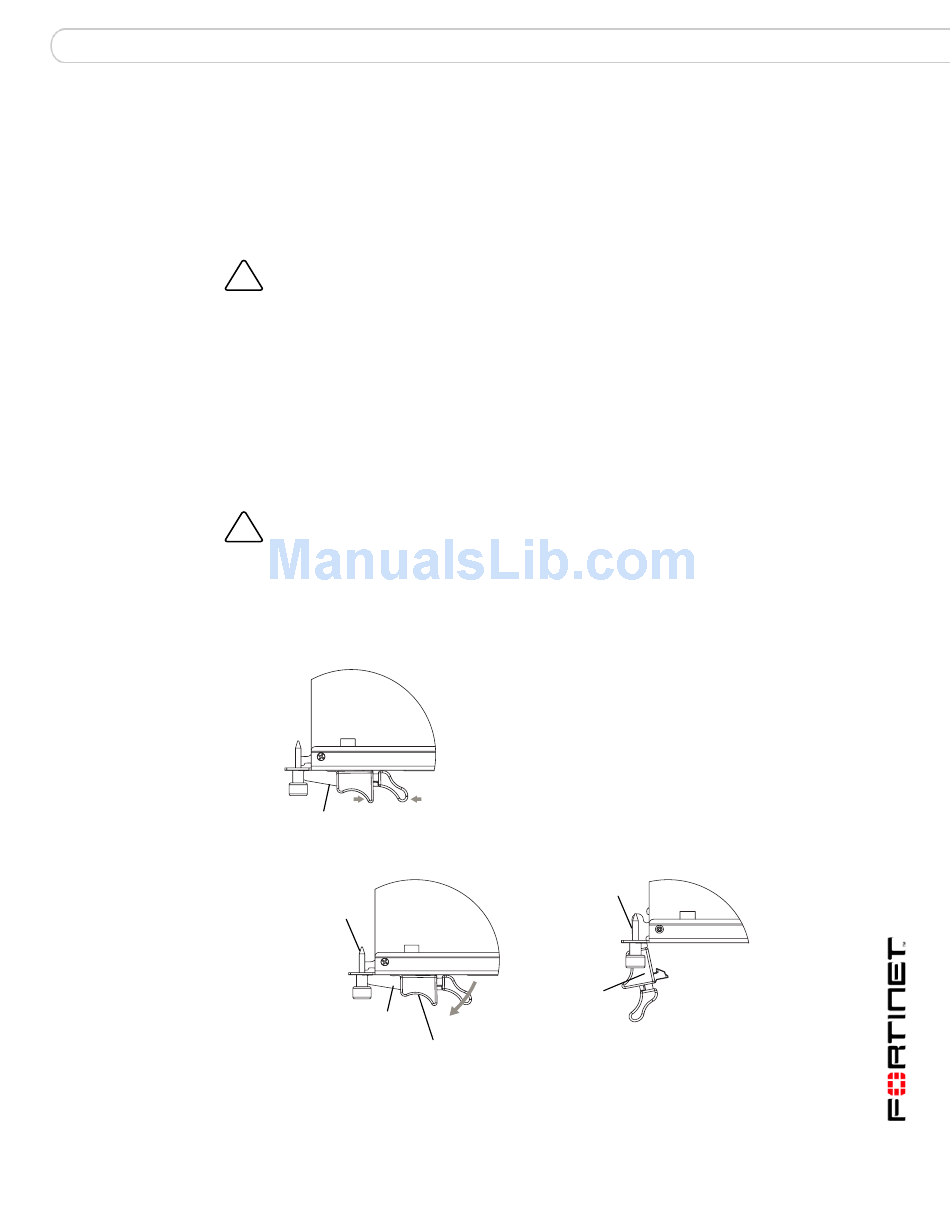

Unlock the left and right extraction levers by squeezing the extraction lever locks.
Unlock
Extraction
Lever
Open the left and right extraction levers to their fully open positions.
Alignment Pin
Extraction
Open
Lever
Lock
Insert the FortiGate-5005FA2 module into the empty slot in the chassis.
Installing FortiGate-5005FA2 modules
Alignment Pin
Extraction
Lever
11
