4. Connection

The device uses a standard enclosure allowing DIN EN60715 TH35 rail mounting. Its plastic
meets standard PC UL 94 V0.
Power
ON
CMN 24Vac
Power
9 – 30 Vdc
Max. 125mA
24 Vac
Max. 127mA
50-60Hz
EIA458
-
Ensure proper space for all connectors when mounted.
The items supplied by Intesis Software for this integration are:
 IntesisBox BACnet/IP Server - Modbus RTU Master hardware
 Console cable. Standard DB9F-DB9M cable 1.8 meter long.
 Installation sheet, containing a link to the LinkBoxBacnet software and this
manual.

4.1 Power device

The first step to perform is to power up the device. To do so a power supply working with
any of the voltage range allowed is needed (check section 6). Once connected the ON led
(Figure 4.1) will turn on.
WARNING! In order to avoid earth loops that can damage the gateway and/or any other
equipment connected to it, we strongly recommend:
© Intesis Software S.L. - All rights reserved
This information is subject to change without notice
®
IntesisBox is a registered trademark of Intesis Software SL
BACnet/IP
(Ethernet)
ETH
- + 10 Base-T
BACnet/IP
IntesisBox
www.intesis.com
MODBUS RTU
Tx
+ EIA232
Rx
Serial Port
(Not used)

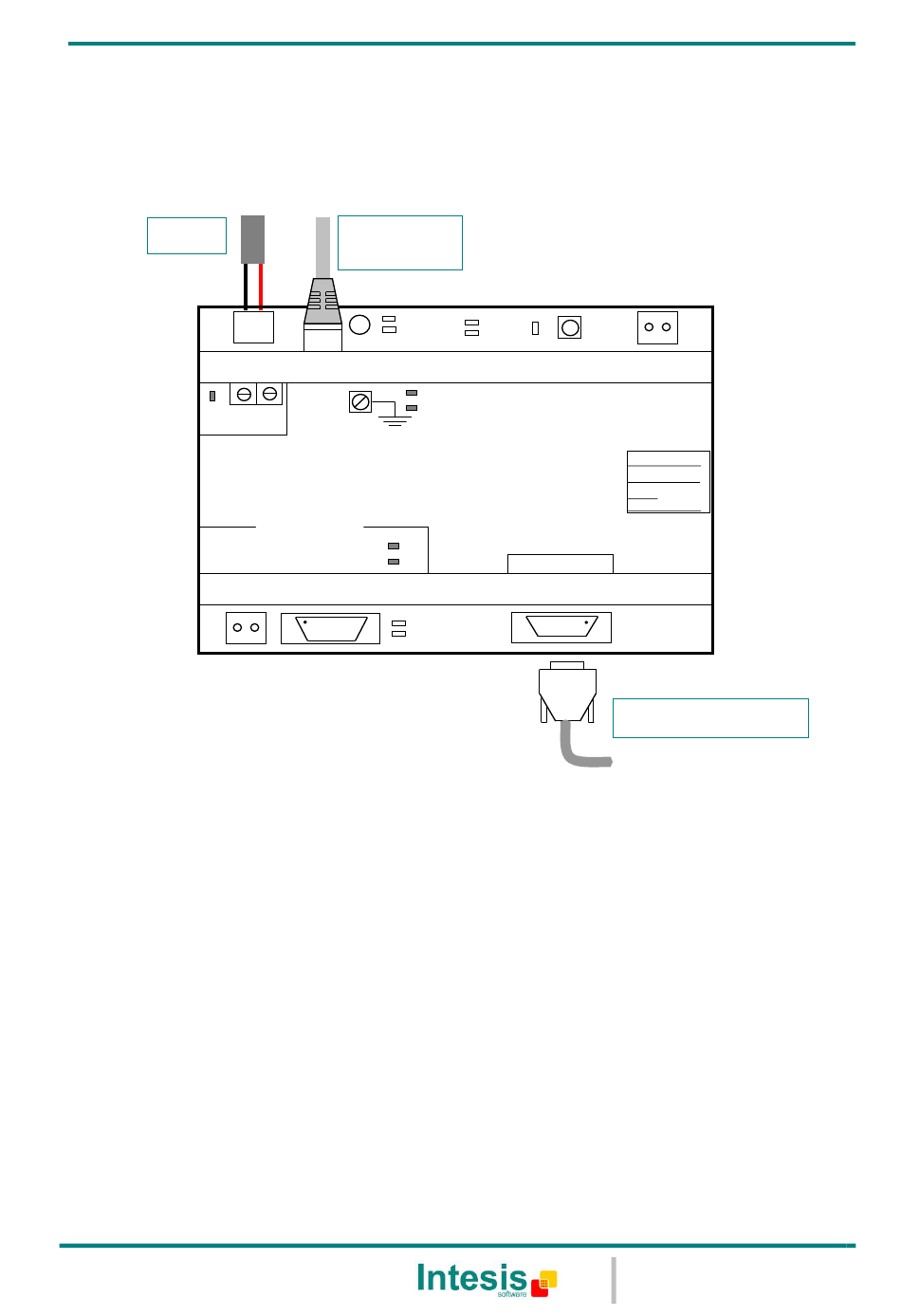

Figure 4.1 Device connection diagram
