- Page 1 ® Proline Plus Instruction Manual Bedienungsanleitung Mode d'emploi Manual Usuario Instruzioni d'impiego Инструкция пользователя...
- Page 2 2000, 5, 10, 20, 200, 250, 5000, 25, 50, 100 500, 1000 10 000 Spare Ersatzteile Piéces Repuestos Parti di Запасная Parts détachées ricambio часть 1 Tip ejector Spitzen Tube Expulsor de Collare dell' Сбрасыватель collar abwurf d'ejection puntas espulsore наконечника...
- Page 3 8-channel: 10, 100, 300 12-channel: 10, 100, 300 Spare Ersatzteile Piéces Repuestos Parti di Запасная Parts détachées ricambio часть 1 Tip cone Spitzenkonus- Module Carcasa del Alloggiamento Корпус housing gehäuse porte-cônes Soporte de del cono di поршневой puntas ancoraggio части del puntale 2 Tip ejector Spitzen-...
- Page 4 ® Proline Plus Instruction Manual ........1 Bedienungsanleitung ........15 Mode d'emploi ...........29 Manual Usuario ..........43 Instruzioni d'impiego ........57 Инструкция пользователя ......71 Specifications ..........85...
-
Page 5: Table Of Contents
CONTENTS 1. INTENDED USE ............2 2. PRODUCT DESCRIPTION .......... 2 3. BIOHIT OPTIFIT TIPS ..........3 4. UNPACKING ..............3 5. PIPETTE HOLDER AND CAROUSEL STAND ... 4 6. CALIBRATION TOOL (ALSO TUBE OPENER) ..4 7. OPERATING THE PIPETTE ........5 7.1. -
Page 6: Intended Use

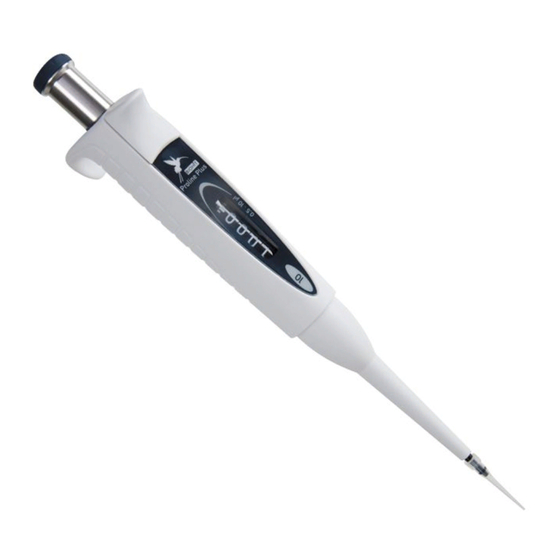

This liquid handling device is designed and manufactured to be used with the IVD-product as an IVD-accessory and as a stand alone laboratory equipment. 2. PRODUCT DESCRIPTION Your new Biohit Proline Plus is an autoclavable air displacement ® pipette. The attractive and ergonomical design of the Proline Plus ®... -
Page 7: Biohit Optifit Tips
3. BIOHIT OPTIFIT TIPS The full range of Biohit pipette tips are recommended for use with Biohit Proline Plus pipettes. Biohit standard tips are made of virgin ® polypropylene. Biohit also offers a full range of SafetySpace fi lter tips. Biohit standard tips are available as bulk packages, space saving refi... -
Page 8: Pipette Holder And Carousel Stand
For convenience and safety always keep the pipette vertically on its own holder, carousel or linear stand when not in use. Cat.No. Product 725600 Biohit Carousel Stand for 6 pipettes 725610 Biohit Pipette Holder for 1 pipette 725620 Biohit Linear Stand 6. -
Page 9: Operating The Pipette
7.3. Protective tip cone fi lters The tip cone design of the Biohit pipettes (>10 μl) allows the use of Biohit Safe-Cone fi lters in the tip cones. These removable fi lters prevent liquids and aerosols from entering the pipette and, thus,... -
Page 10: Pipetting Techniques
fi lter daily (after 50 - 250 pipetting cycles) and always in case of over-aspiration. (See Chapter 2 for ordering information.) The Biohit Filter Foreceps should be used to avoid touching the soiled filters by hand (Fig.5). See Chapter 2 for ordering information. -
Page 11: Repetitive Reverse Technique
8.2. Reverse pipetting (Fig. 7) 1. Fit the tip onto the pipette tip cone. 2. Press the operating button all the way to the second stop. 3. Place the tip just under the surface of the liquid (2-3 mm) and smoothly release the operating button up to the starting position. -
Page 12: Maintenance
If the pipette is used daily it is recommended to clean/decontaminate and check the performance of the pipette every three months. Biohit also provides complete repair and recalibration service for your pipette including a service report and performance certifi cate. -
Page 13: Sterilization Of The Pipette
For complete decontamination of the lower parts place the tip ejector collar (1), tip cone holder (2) and tip cone (3) into a beaker containing Biohit Proline Biocontrol and leave for at least 30 minutes. Wipe the piston with Biohit Proline Biocontrol and the lint-free cloth. -
Page 14: Testing The Performance And Recalibration
It is also recommended to grease the piston/ seal of the pipette after every 10 autoclaving. 11. TESTING THE PERFORMANCE AND RECALIBRATION It is recommended to check the performance of your Biohit Proline Plus pipettes regularly (e.g. every 3 months) and always ®... - Page 15 (imprecision) is the scatter of the dispensed volumes around the mean of the dispensed volume. (ISO 8655-1.) Note: Biohit specifi cations are achieved in strictly controlled condi- tions (ISO 8655-6). The user should establish own specifi cations based on the fi eld of use and the accuracy requirements placed on the pipette (ISO8655-1).
-
Page 16: Recalibration
ISO 8655-6: Gravimetric test method for volumetric instruments. The pipette's specifi cations are guaranteed only with genuine Biohit tips. If you fi nd the pipette to be inaccurate after performance testing, please follow the instructions below: 1. Remove the lid of the calibration nut, located at the backside of the handle, with the aid of the calibration tool (Fig. -
Page 17: Trouble Shooting
Tip cone holder Tighten the tip incorrectly tightened cone holder Pipette damaged Return to your Biohit service representative for servicing Pipette out of Incorrect operation Follow instructions established specifi cations Unsuitable tip... -
Page 18: Warranty Information
Plus pipettes are covered by warranty for 3 ® years against defects in materials and workmanship. Should your pipette fail to function at any time, please contact your local Biohit representative. ANY WARRANTY WILL, HOWEVER, BE DEEMED AS VOID IF... - Page 19 Specifications Biohit Proline Plus single-, 8- and 12-channel pipettes ® Cat.No. Channels Volume Test Inacc. Impr. range volume (μl) 728010 0.1-3 μl 1,30 0,80 2,40 1,60 10,00 6,00 728020 0.5-10 μl 1,00 0,50 1,50 1,00 2,50 1,50 5,00 4,00 728030 2-20 μl...
- Page 20 Toda la información contenida en este documento es actual al ser publicada, y si bien se ha tomado la mayor atención al realizarlo, Biohit no es responsable en caso de errores u omisiones, y se reserva el derecho de aplicar cambios sin previo aviso. Todas las marcas registradas son de propiedad de Biohit a menos de que no se estipule lo contrario.
