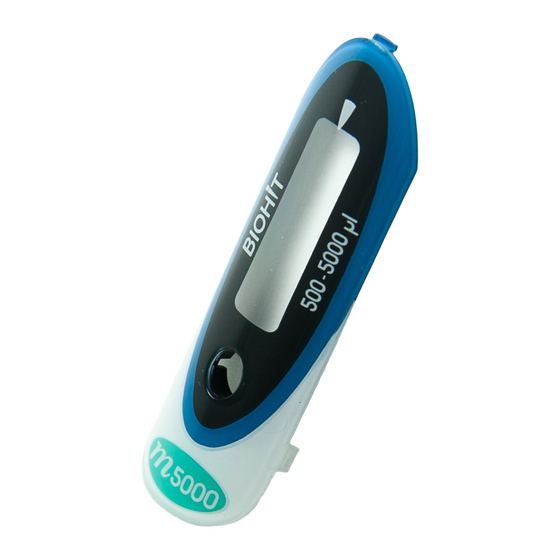

Biohit mLINE m3 Instruction Manual
  1. Manuals
  2. Brands
  3. Biohit Manuals
  4. Laboratory Equipment
  5. mLINE m3
  6. Instruction manual

Biohit mLINE m3 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Biohit mLINE m3 Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the mLINE m3 and is the answer not in the manual?

Questions and answers

Related Manuals for Biohit mLINE m3

Summary of Contents for Biohit mLINE m3

  • Page 2 LINE ® Instruction Manual Bedienungsanleitung Mode d’ emploi Manual Usuario Instruzioni d’impiego я Инструкция пользователя cientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-sc...
  • Page 3 200, 1000 5000, 10 ml Spare Parts Ersatzteile Piéces détachées Repuestos Parti di ricambio Запасная часть Tip ejector Spitzenabwurf Tube d’éjection Expulsor de puntas Collare dell’espulsore Сбрасыватель collar puntale наконечников Tip cone Konusfilterhalter Bague de retenue Anillo soporte de Contenitore cono Муфта...
  • Page 4 8-channel: 100, 12-channel: 100, Spare Parts Ersatzteile Piéces détachées Repuestos Parti di ricambio Запасная часть Tip cone Spitzenkonus- Module Carcasa del Alloggiamento del Корпус поршневой housing gehäuse porte-cônes Soporte de puntas cono di ancorag- части gio del puntale Tip ejector bar Spitzenabwurfs- Barre d’éjection Expulsor de...
  • Page 5 LINE ® Instruction Manual ........1 Bedienungsanleitung ........17 Mode d’emploi ...........33 Manual Usuario ..........49 Instruzioni d’impiego ........65 Инструкция пользователя ......81 Specifications ..........97 cientific - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisan-sc...

  • Page 6: Table Of Contents

    CONTENTS 1. INTENDED USE ............2 2. PRODUCT DESCRIPTION .......... 2 3. BIOHIT OPTIFIT TIPS ..........4 4. UNPACKING ..............4 5. PERSONAL IDENTIFICATION ........4 6. PIPETTE HOLDER AND CAROUSEL STAND ... 5 6.1. Installing the pipette holder ........ 5 6.2.

  • Page 7: Intended Use

    This liquid handling device is designed and manufactured to be used with the IVD-product as an IVD-accessory and as a stand alone laboratory equipment. 2. PRODUCT DESCRIPTION Your new Biohit LINE is an autoclavable air displacement pipette. The attractive and ergonomical design of the LINE...
  • Page 8 Pipette Description Cap ....... ID window and tag Operating button ....ejector ..Finger support ..Handle Display ..... Volume ... Calibration lock ....Colour coding....Tip ejector collar ...... Tip cone....Safe Cone ..fi lter ..Tip cone housing Tip cone ....

  • Page 9: Biohit Optifit Tips

    3. BIOHIT OPTIFIT TIPS The full range of Biohit pipette tips are recommended for use with Biohit LINE pipettes. Biohit standard tips are made of virgin polypropylene. Biohit also offers a full range of Safetyspace fi lter tips. Biohit standard tips are available as bulk packages, space saving refi...

  • Page 10: Pipette Holder And Carousel Stand

    6. PIPETTE HOLDER AND CAROUSEL STAND For convenience and safety always keep the pipette vertically on its own holder, carousel or linear stand when not in use. Cat.No. Product 725600 Biohit LINE Carousel 725610 Biohit LINE Pipette Holder 6.1. Installing the pipette holder 1.

  • Page 11: Operating The Pipette

    Do not rotate the operating button outside the volume range of the pipette (Chapter. 1.) 8.2. Sealing and ejecting tips To ensure the maximum accuracy and precision Biohit tips are recommended to be used with LINE pipettes. Before fi tting a tip ensure that the pipette tip cone is clean.

  • Page 12: Protective Tip Cone Fi Lters

    The tip cone design of the Biohit LINE pipettes (>10 μl) allows the use of Biohit Safe-Cone fi lters in the tip cones. These removable fi lters prevent liquids and aerosols from entering the pipette and, thus, protects the pipette from contamination and damage.

  • Page 13: Forward Pipetting (Fig. 5)

    9.1. Forward pipetting (Fig. 5) 1. Fit the tip onto the pipette tip cone. 2. Press the operating button to the fi rst stop. 3. Place the tip just under the surface of the liquid (2-3 mm) and smoothly release the operating button up to the starting position.Wait one second.

  • Page 14: Repetitive Reverse Technique

    If the pipette is used daily it is recommended to clean/ decontaminate and check the performance of the pipette every three months. Biohit also provides complete repair and recalibration service for your pipette including a service report and performance certifi...

  • Page 15: Daily Cleaning Of The Outer Surface Of The Pipette

    LINE pipette should be checked every day for cleanliness. To clean and decontaminate the outer surface of your pipette use Biohit Proline Biocontrol (Cat.no. 724004, 5 litres) and a soft lint-free cloth. It is also possible to use ethanol (70%), isopropanol (60%) or a mild detergent as a cleaning agent.

  • Page 16: Sterilization Of The Pipette

    (4) (only the models 5000 and 10 000) into a beaker containing Biohit Proline‚ Biocontrol and leave for at least 30 minutes. Wipe the piston with Biohit Proline‚ Biocontrol and the lint-free cloth. Rinse the parts with distilled or sterile water. Let the parts dry.

  • Page 17: Testing The Performance And Recalibration

    12. TESTING THE PERFORMANCE AND RECALIBRATION It is recommended to check the performance of your Biohit LINE pipettes regularly (e.g. every 3 months) and always after in-house maintenance. However, the user should establish a regular testing routine for their pipettes with regard to accuracy requirements of...
  • Page 18 (imprecision) is the scatter of the dispensed volumes around the mean of the dispensed volume. (ISO 8655-1.) Note: Biohit specifi cations are achieved in strictly controlled condi- tions (ISO 8655-6). The user should establish own specifi cations based on the fi eld of use and the accuracy requirements placed on the pipettor (ISO8655-1).

  • Page 19: Recalibration

    ISO 8655-6: Gravimetric test method for volumetric instruments. The pipette's specifi cations are guaranteed only with genuine Biohit tips. If you fi nd the pipette to be inaccurate after performance testing, please follow the instructions below: 1. Remove the lid of the calibration nut, located at the backside of the handle, with the aid of the calibration tool (Fig.

  • Page 20: Trouble Shooting

    Tip cone holder Tighten the tip incorrectly tightened cone holder Pipette damaged Return to your Biohit service representative for servicing Pipette out of Incorrect operation Follow instructions established specifi cations Unsuitable tip...

  • Page 21: Warranty Information

    LINE pipettes are covered by warranty for 3 years against defects in materials and workmanship. Should your LINE pipette fail to function at any time, please contact your local Biohit representative. ANY WARRANTY WILL, HOWEVER, BE DEEMED AS VOID IF...
  • Page 22 Specifi cations Biohit LINE single-, 8- and 12-channel pipettes Volume Test Cat. No. Channels Range Volume Inacc. (%) Impr. (%) 725010 0.1 - 3 μl 3 μl 1.30 % 0.80 % 1.5 μl 2.40 % 1.60 % 0.3 μl 10.0 % 6.00 %...
  • Page 23 Toda la información contenida en este documento es actual al ser publicada, y si bien se ha tomado la mayor atención al realizarlo, Biohit no es responsable en caso de errores u omisiones, y se reserva el derecho de aplicar cambios sin previo aviso. Todas las marcas registradas son de propiedad de Biohit a menos de que no se estipule lo contrario.
