Basic Installation Procedure

Connect a Monitor

14
This instrument can be used with or without a monitor. For setup purposes, you
will want to connect the instrument to a monitor as follows.
1. Connect a monitor to the DVI port on the rear-panel of the instrument.
2. Connect the appropriate power cord to the monitor and then to a power source.
3. Turn on the monitor. You will not see a waveform until you have connected a
signal to the instrument and turned on the power. (See page 15, Install in a
Video System.) (See page 17, Power-On and Power-Off Procedure.)

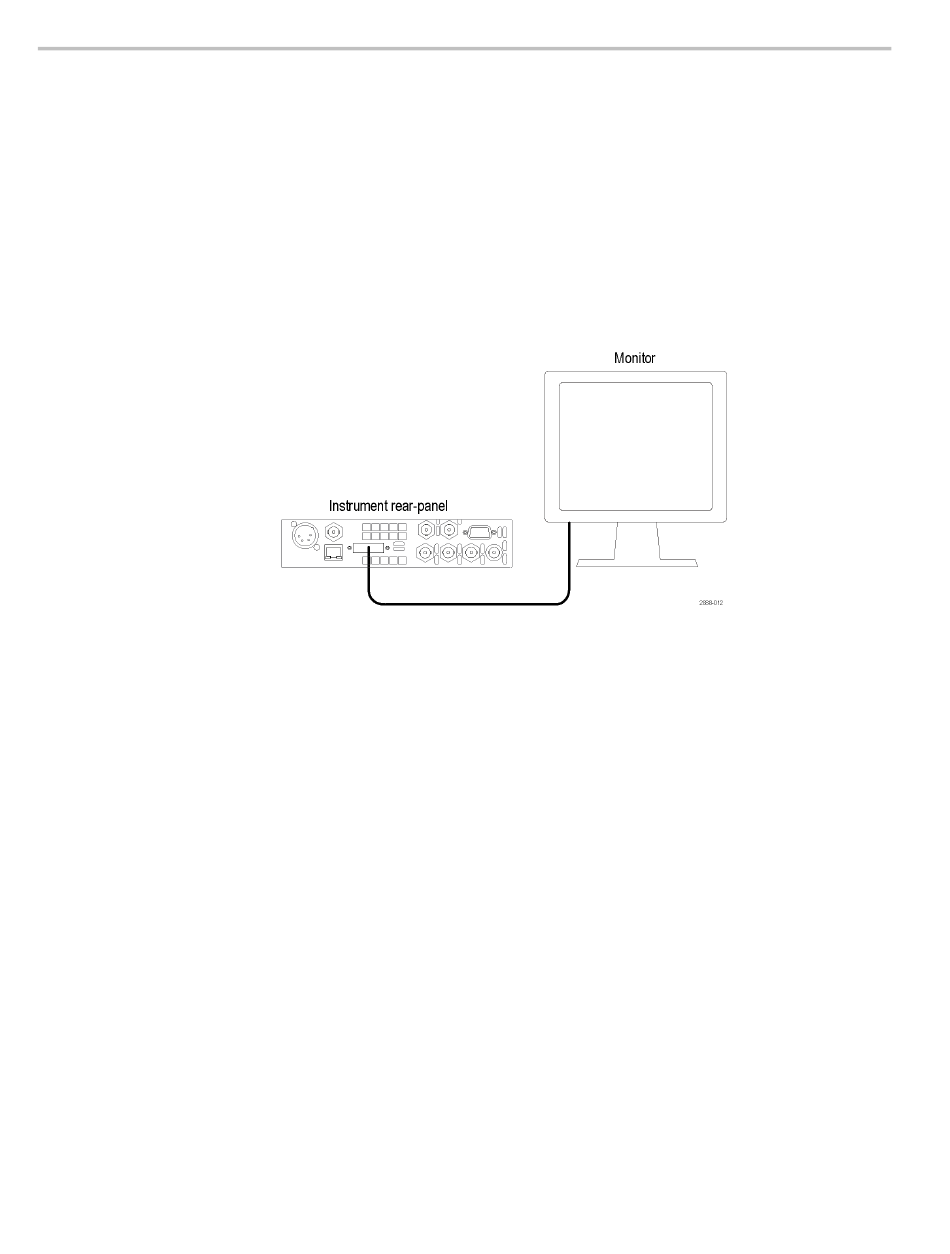

Figure 1: Connecting a monitor to the instrument
