Rear-Panel Connectors

Rear-Panel Connectors

Input and Output Connectors

Video Connectors
10

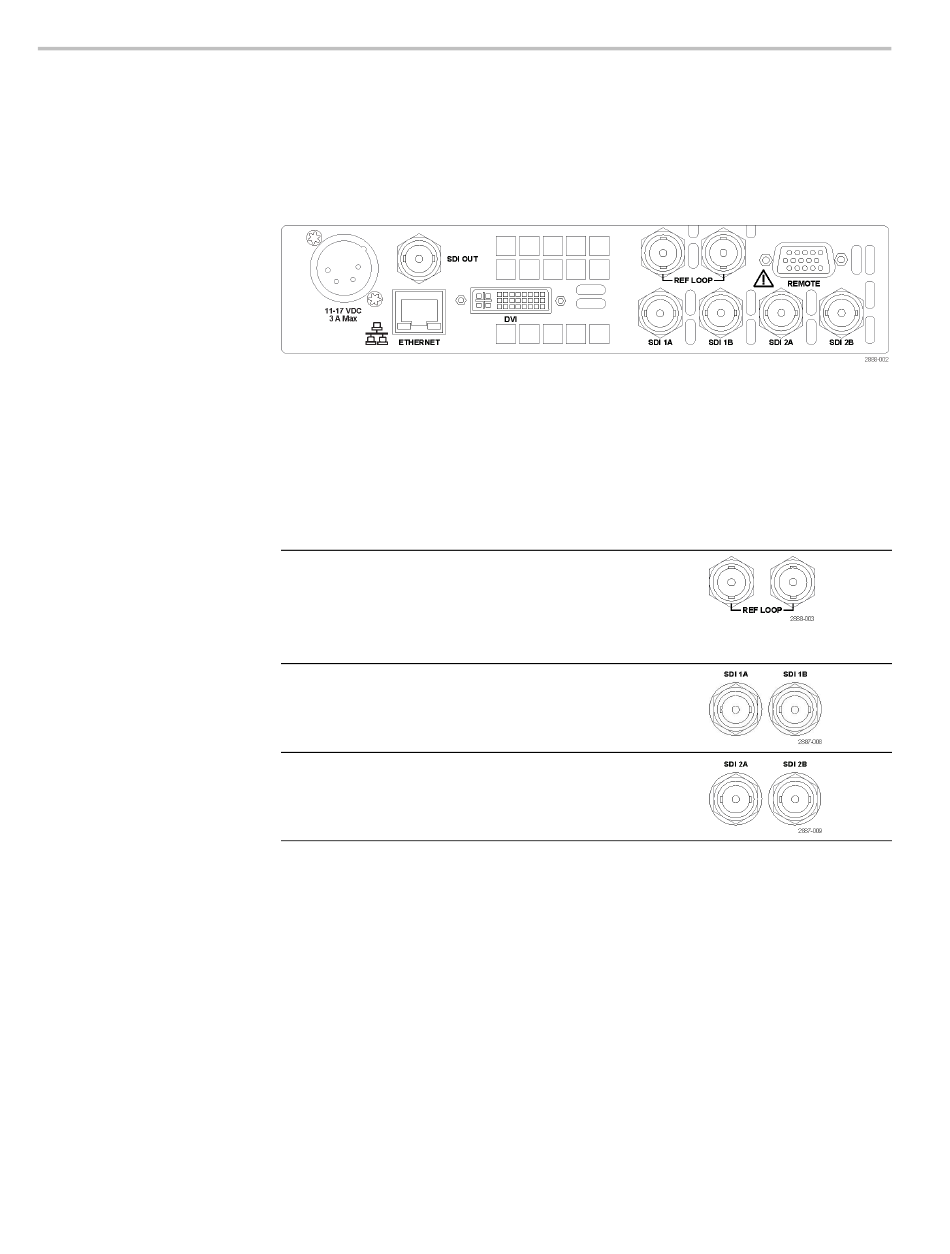

The following figure shows the rear-panel. The SDI inputs are arranged
horizontally and the external reference connectors are arranged vertically.
Rear-panel
SDI inputs are self-terminating inputs.
Input
REF Loop. A synchronization input. The input signal can be
analog black burst, analog composite video, or analog tri-level
for HD. Requires termination.
NOTE.
The reference input is a passive loop input, so external
termination is required.
SDI 1A. The digital A component serial digital input.
SDI 1B. The digital B component serial digital input.
SDI 2A. The digital A component serial digital input.
SDI 2B. The digital B component serial digital input.
Connector
