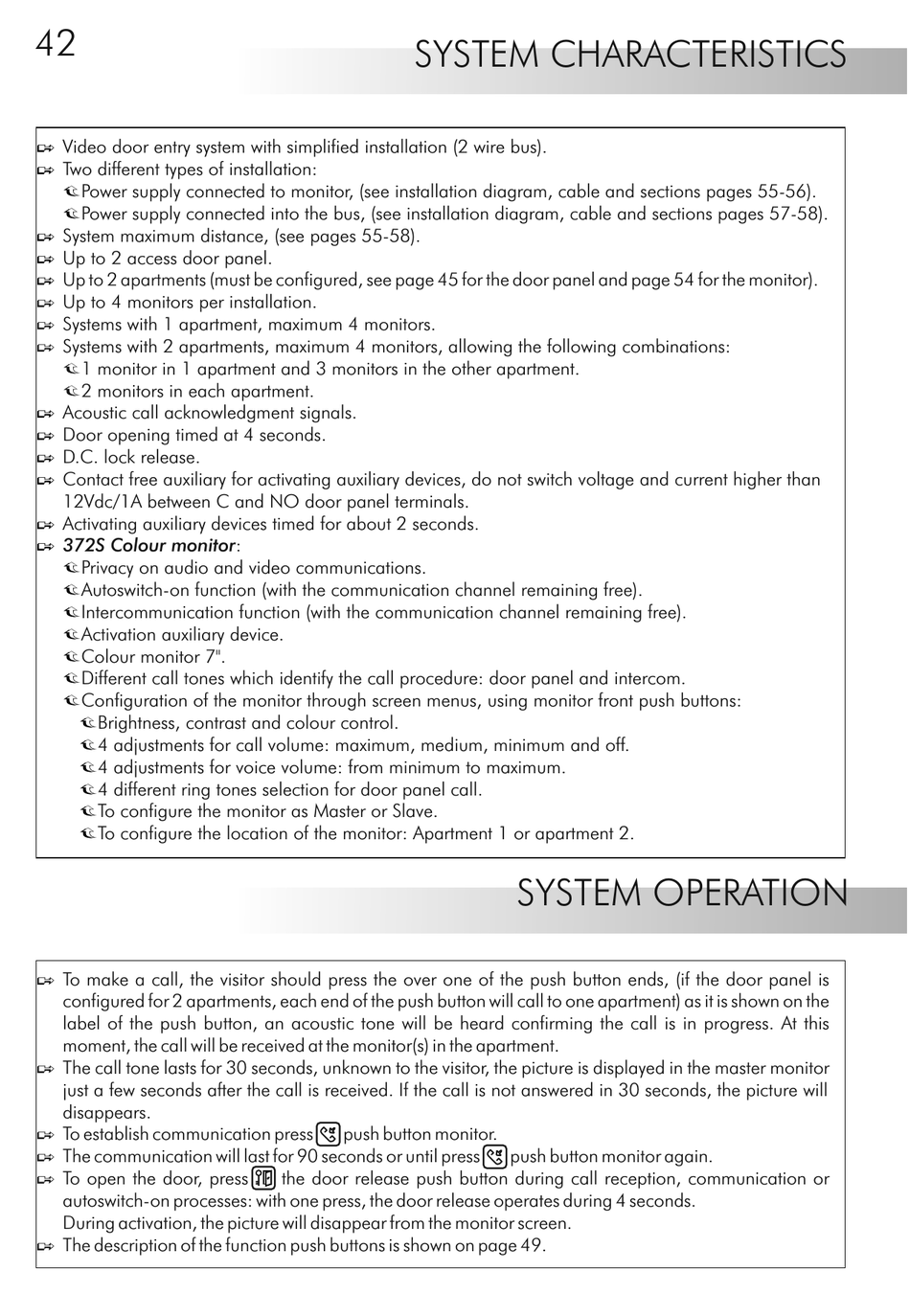

Video door entry system with simplified installation (2 wire bus).
O
Two different types of installation:
w
Power supply connected to monitor, (see installation diagram, cable and sections pages 55-56).
w
Power supply connected into the bus, (see installation diagram, cable and sections pages 57-58).
O
System maximum distance, (see pages 55-58).
O
Up to 2 access door panel.
O
Up to 2 apartments (must be configured, see page 45 for the door panel and page 54 for the monitor).
O Up to 4 monitors per installation.
O Systems with 1 apartment, maximum 4 monitors.
O Systems with 2 apartments, maximum 4 monitors, allowing the following combinations:
w1 monitor in 1 apartment and 3 monitors in the other apartment.
w2 monitors in each apartment.
O
Acoustic call acknowledgment signals.
O
Door opening timed at 4 seconds.
O
D.C. lock release.
O
Contact free auxiliary for activating auxiliary devices, do not switch voltage and current higher than
12Vdc/1A between C and NO door panel terminals.
O
Activating auxiliary devices timed for about 2 seconds.
O
372S Colour monitor:
w
Privacy on audio and video communications.
w
Autoswitch-on function (with the communication channel remaining free).
w
Intercommunication function (with the communication channel remaining free).
w
Activation auxiliary device.
w
Colour monitor 7".
w
Different call tones which identify the call procedure: door panel and intercom.
w
Configuration of the monitor through screen menus, using monitor front push buttons:
w
Brightness, contrast and colour control.
w
4 adjustments for call volume: maximum, medium, minimum and off.
w
4 adjustments for voice volume: from minimum to maximum.
w
4 different ring tones selection for door panel call.
w
To configure the monitor as Master or Slave.
w
To configure the location of the monitor: Apartment 1 or apartment 2.
O To make a call, the visitor should press the over one of the push button ends, (if the door panel is
configured for 2 apartments, each end of the push button will call to one apartment) as it is shown on the
label of the push button, an acoustic tone will be heard confirming the call is in progress. At this
moment, the call will be received at the monitor(s) in the apartment.
O The call tone lasts for 30 seconds, unknown to the visitor, the picture is displayed in the master monitor
just a few seconds after the call is received. If the call is not answered in 30 seconds, the picture will
disappears.
O To establish communication press
O The communication will last for 90 seconds or until press
O To open the door, press
autoswitch-on processes: with one press, the door release operates during 4 seconds.
During activation, the picture will disappear from the monitor screen.
O The description of the function push buttons is shown on page 49.
