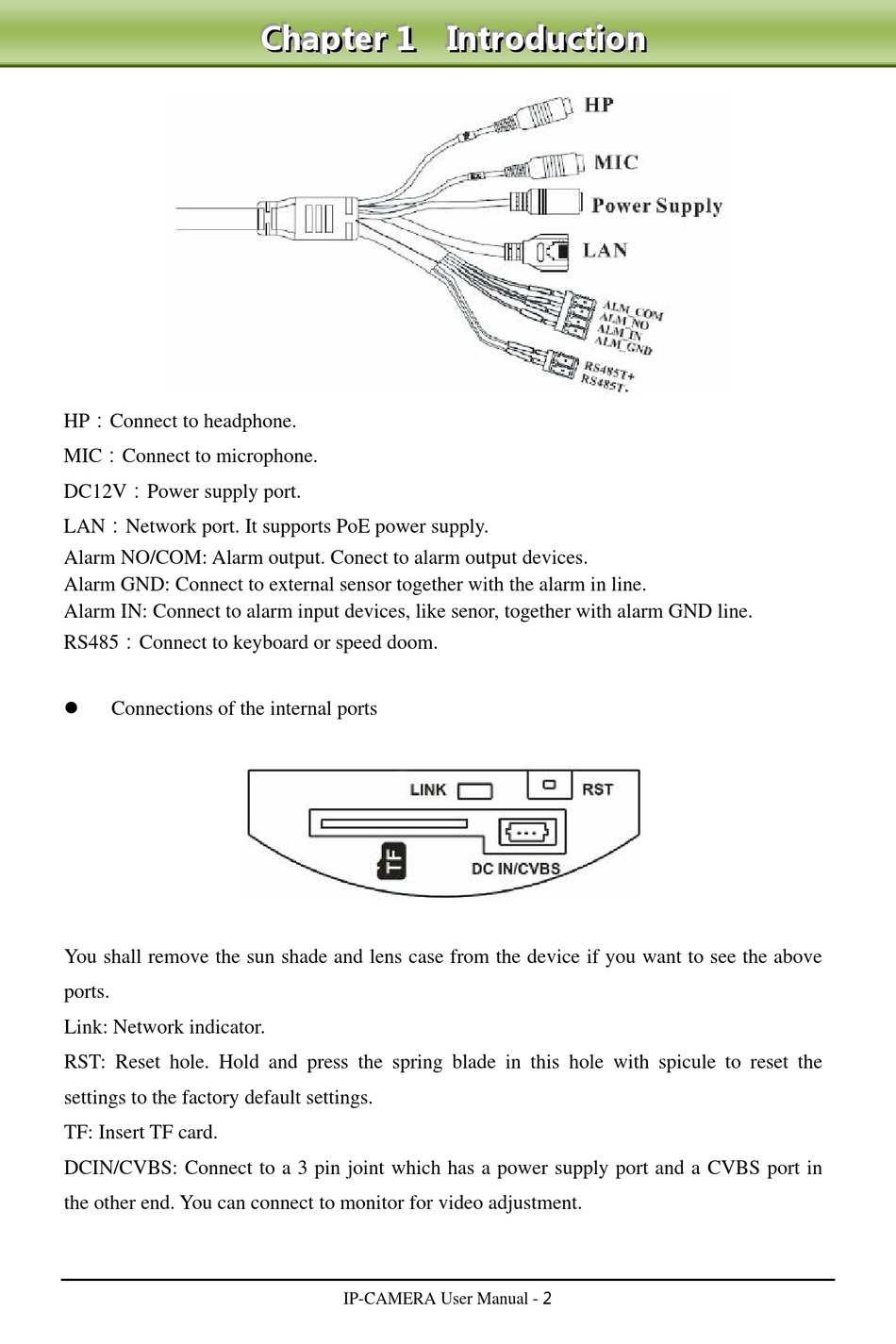

HP：Connect to headphone.
MIC：Connect to microphone.
DC12V：Power supply port.
LAN：Network port. It supports PoE power supply.
Alarm NO/COM: Alarm output. Conect to alarm output devices.
Alarm GND: Connect to external sensor together with the alarm in line.
Alarm IN: Connect to alarm input devices, like senor, together with alarm GND line.
RS485：Connect to keyboard or speed doom.
Connections of the internal ports
You shall remove the sun shade and lens case from the device if you want to see the above
ports.
Link: Network indicator.
RST: Reset hole. Hold and press the spring blade in this hole with spicule to reset the
settings to the factory default settings.
TF: Insert TF card.
DCIN/CVBS: Connect to a 3 pin joint which has a power supply port and a CVBS port in
the other end. You can connect to monitor for video adjustment.
C
h
a
p
t
e
r
1
C
h
a
p
t
e
r
1
C
h
a
p
t
e
r
1
IP-CAMERA User Manual - 2
