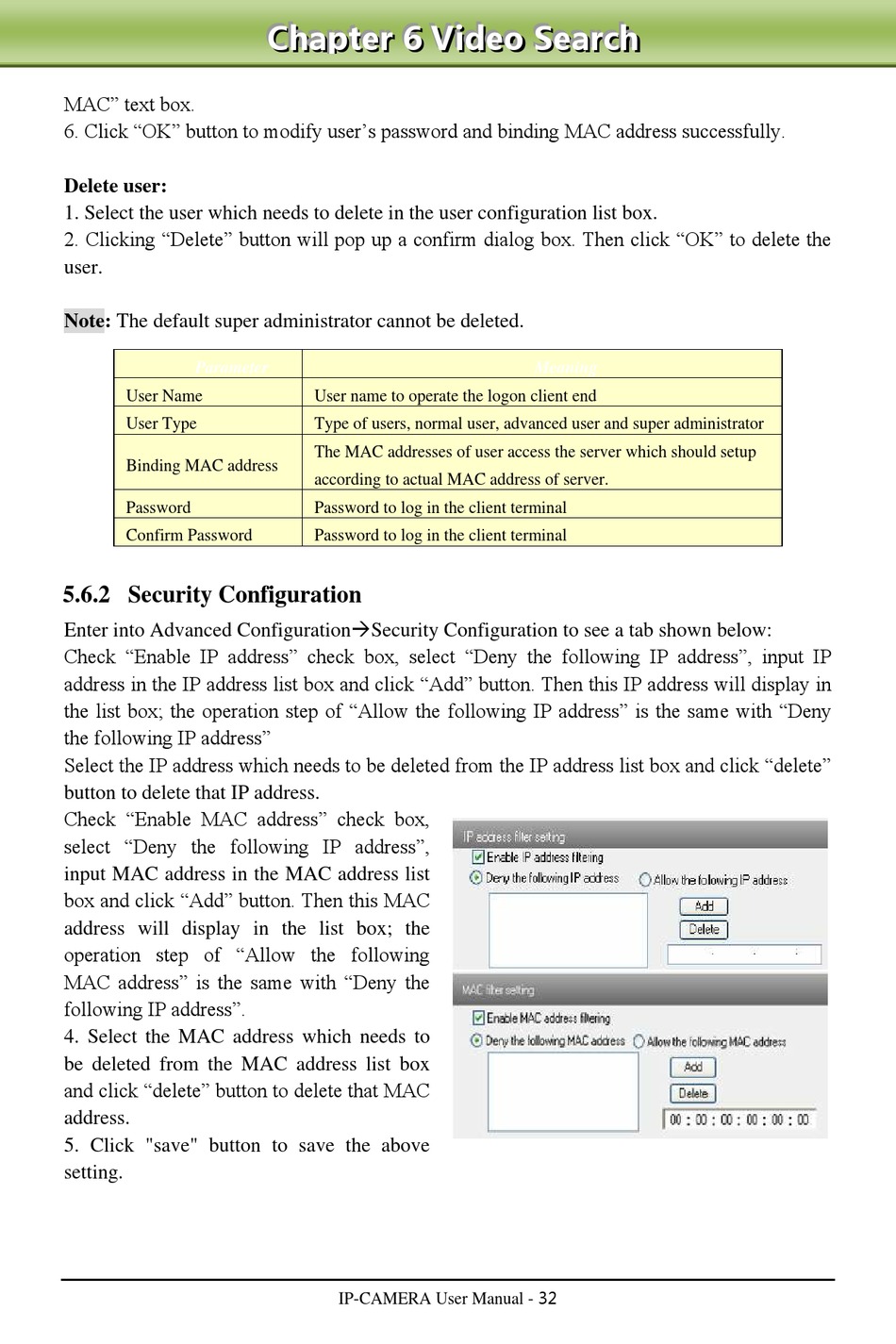

Security Configuration - Provision ISR I4-380IPVF User Manual

MAC" text box.
6. Click "OK" button to modify user's password and binding MAC address successfully.
Delete user:
1. Select the user which needs to delete in the user configuration list box.
2. Clicking "Delete" button will pop up a confirm dialog box. Then click "OK" to delete the
user.
Note: The default super administrator cannot be deleted.
Parameter
User Name
User Type
Binding MAC address
Password
Confirm Password

5.6.2 Security Configuration

Enter into Advanced ConfigurationSecurity Configuration to see a tab shown below:
Check "Enable IP address" check box, select "Deny the following IP address", input IP
address in the IP address list box and click "Add" button. Then this IP address will display in
the list box; the operation step of "Allow the following IP address" is the same with "Deny
the following IP address"
Select the IP address which needs to be deleted from the IP address list box and click "delete"
button to delete that IP address.
Check "Enable MAC address" check box,
select "Deny the following IP address",
input MAC address in the MAC address list
box and click "Add" button. Then this MAC
address will display in the list box; the
operation step of "Allow the following
MAC address" is the same with "Deny the
following IP address".
4. Select the MAC address which needs to
be deleted from the MAC address list box
and click "delete" button to delete that MAC
address.
5. Click "save" button to save the above
setting.
C h a p t e r 6 V
C h a p t e r 6 V
C h a p t e r 6 V
User name to operate the logon client end
Type of users, normal user, advanced user and super administrator
The MAC addresses of user access the server which should setup
according to actual MAC address of server.
Password to log in the client terminal
Password to log in the client terminal
IP-CAMERA User Manual - 32
i d e o S e a r c h
i d e o S e a r c h
i d e o S e a r c h
Meaning
