Page 1: Ceiling Fan

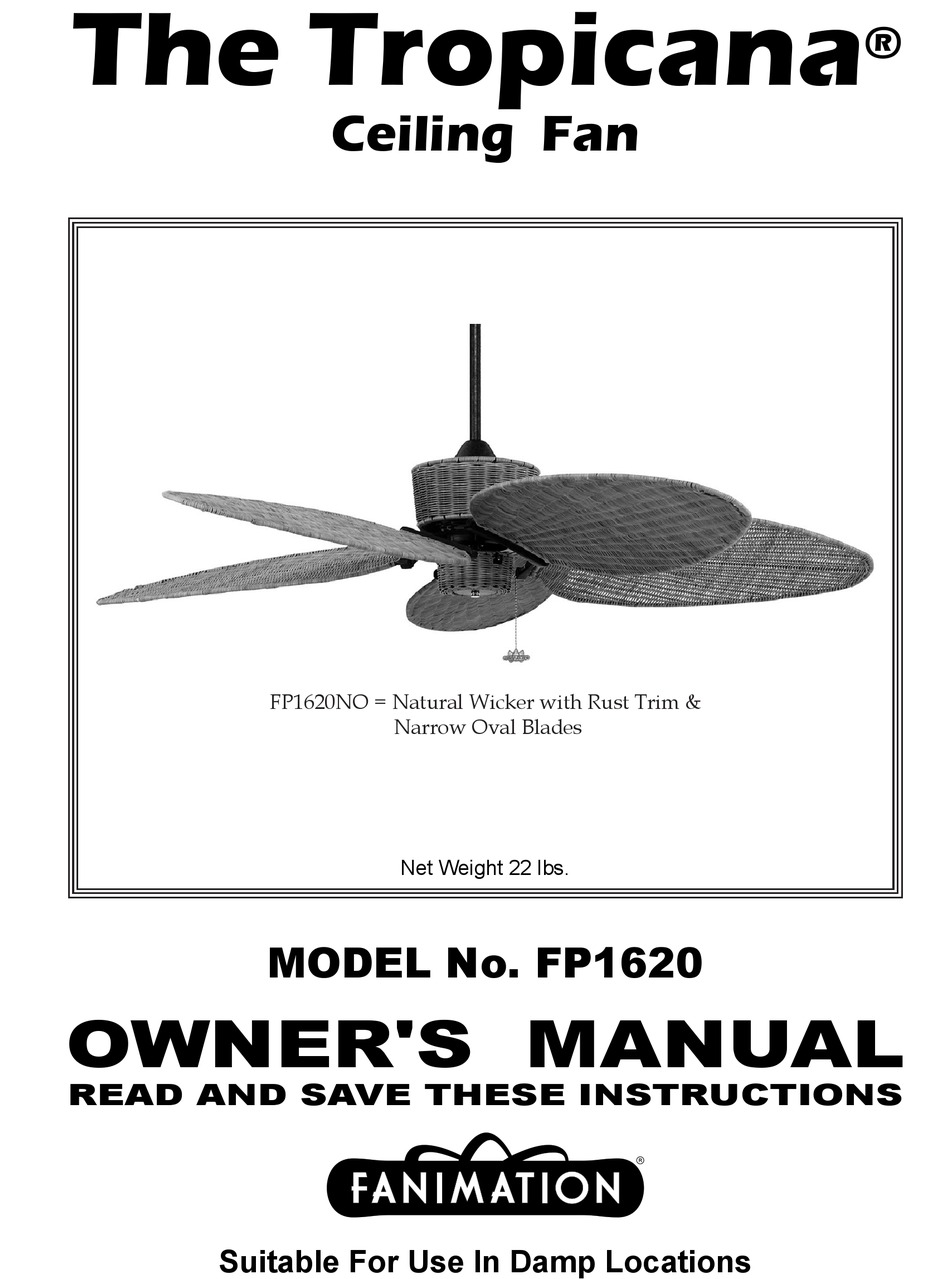

The Tropicana ® Ceiling Fan FP1620NO = Natural Wicker with Rust Trim & Narrow Oval Blades Net Weight 22 lbs. MODEL No. FP1620 OWNER'S MANUAL READ AND SAVE THESE INSTRUCTIONS Suitable For Use In Damp Locations... -
Page 2: Table Of Contents
8. Under no circumstances may a fan be returned without prior authorization from Fanimation. The receipt of purchase must accompany authorized returns and must be sent freight prepaid to Fanimation. The fan to be returned must be properly packed to avoid damage in transit;... -
Page 3: Tools Needed For Assembly
Fanimation. Substitution of parts or accessories not designated for use with this product by Fanimation could result in personal injury or property damage. Check to see that you have received the following... -
Page 4: How To Put Your Ceiling Fan Together
How to Put Your Ceiling Fan Together 1. Prior to assembly, set aside and save the hardware bag packed in the foam packing. 2. Place ceiling canopy wicker cover over the metal ceiling canopy and secure with metal tabs (Figure 1). Figure 1 3. -
Page 5: How To Hang Your Ceiling Fan
How to Hang Your Ceiling Fan CEILING less than 7 ft FLOOR Figure 4 RUBBER PAD (2) HANGER BRACKET SCREWS (2) Supplied with Figure 5 Outlet Box HANGER BRACKET DOWNROD/HANGER BALL ASSEMBLY NOTE: Ceiling cover, supply wires and fan wires omitted Figure 6 for clarity If C4 Remote Control (optional) is desired, a Remote Receiver Unit must be installed (after setting the code) in... -
Page 6: Electrical Requirements
7. 2. Optional fan only wall slide control (C1), see page 9. NOTE: If you are using a Fanimation Light Fixture with your fan, see Ceiling Fan Light Kit Installation Instructions (packed with light kit) for wiring. -
Page 7: How To Wire (& Operate) Your Ceiling Fan - Pull Chain
How to Wire Your Fan - Pull Chain If you feel that you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician. WARNING To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. Note: If you are not sure if the outlet box is grounded, contact a licensed electrician for advice, as it must be grounded for safe operation. -
Page 8: How To Wire (& Operate) Your Ceiling Fan - C4 Wall Control (Optional)
How to Wire Your Fan - C4 Hand-held Remote (Optional) If you feel that you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician. WARNING To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. -
Page 9: How To Wire (& Operate) Your Ceiling Fan - C1 Wall Control (Optional)
How to Wire Your Ceiling Fan - C1 Wall Control (Optional) NOTE: If fan or supply wires are different colors than indicated, have this unit installed by a qualified electrician. 1. Complete steps 1 thru 3 "How to Wire Your Fan - Pull Chain"... -
Page 10: Mounting The Fan Blades, Maintenance & Blade Cleaning
FLYWHEEL BLADE SCREWS (2 per blade) Figure 17 Periodic cleaning of your new ceiling fan is the only maintenance that is needed. When cleaning, use only a soft brush or lint free cloth to avoid scratching the finish. Abrasive cleaning agents are not required and should be avoided to prevent damage to finish. -
Page 11: Trouble Shooting
For your own safety turn off power at fuse box or circuit breaker before trouble shooting your fan. TROUBLE 1. FAN WILL NOT START 1. Fuse or circuit breaker blown. 2. Loose power line connections to the fan, or loose switch wire connections in the switch housing. -
Page 12: Parts List
FP1610, Fan Body - White Wicker with White trim TRW4NA/MC TRW4WH/WH TRW7NA/MC TRW7WH/WH MCCMC P1602NA/MC or WH/WH P1604NA/MC or WH/WH P1606NA/MC or WH/WH Part # FP1620 P1608NA/RS HDWFP1600 DR6RS FP1620, Fan Body - Natural Wicker with Rust trim TRW4NA/RS MCCRS P1602NA/RS P1604NA/RS P1606NA/RS... -
Page 13: Exploded-View Drawing
The Tropicana Ground wire (Green) NOTE: The illustration shown is not to scale or its actual configuration may vary, the wicker is removed for parts clarity FP1600/1610/1620 ® Exploded-View Ground wire (Green) Figure 18... - Page 14 10983 Bennett Parkway Zionsville, IN 46077 (888) 567-2055 FAX (866) 482-5215 Visit Our Website @ fanimation.com Copyright 2003 Fanimation 2003/11...
