Disassembly Procedure for Main Board

1.
Turn Off Power and Disconnect Power Cord.
2.
Loosen 5 screws, see fig. 1, and remove the top cover.
3.
Disconnect front connection, J2, see fig. 2.
4.
Remove screws at MT7, MT8, MT2 on the main board, see fig. 2.
5.
Remove screws at the XLR connectors on the back panel, see fig. 3.
6.
Remove screw at SPDIF in/out connector, see fig. 3.
7.
Remove jack nut at PEDAL IN, see fig. 3.
8.
Push the main board into the front profile a little to free the connectors
from the back panel, then lift out the board.
9.
Desolder the seven wires from power supply.
Fig. 3: Screws at back panel.
PROFESSIONAL
AUDIO EQUIPMENT
LISTED
5D83
3 screws
__________________________________________________________________________________________________________________________________________________________________________________________________
TC Electronic A/S
3 screws
Finalizer Service manual

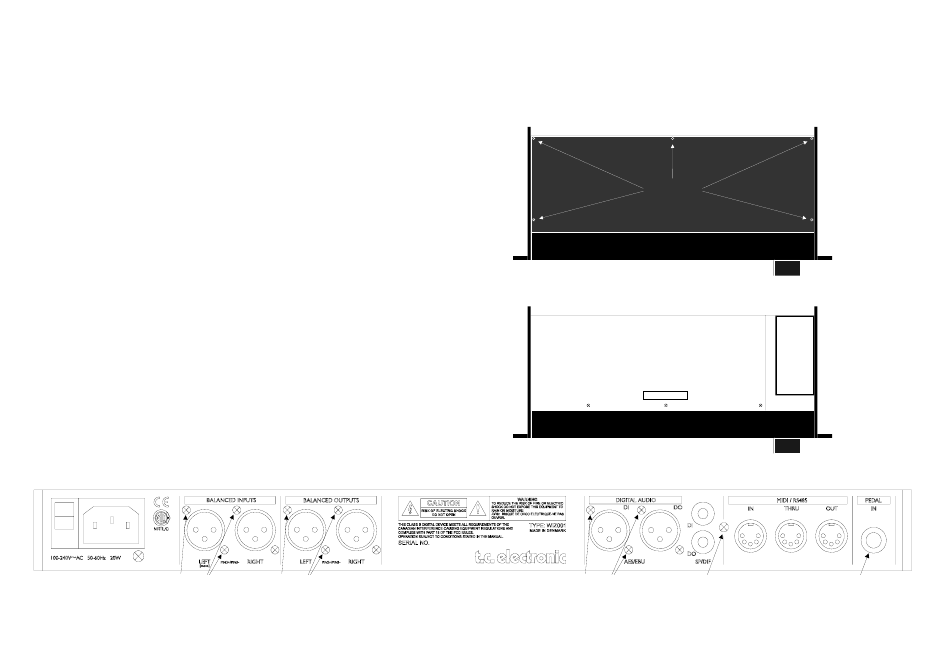

Fig. 1: Screws at top lid
5 screws
Top view
Fig. 2: Screws and front connector at main board
main board
J2
MT7
MT8
Top view
3 screws
1 screw
Power
Supply
MT2
MIDI / RS485
Jack nut
page 6
